2. Floor units DUPLEX elevator with „C“ i „D“ protocol displays.
Floor units are coded acording to the addressing table.
LC100-J boards are connected to CAN2 bus, there is no need for parameterization because inputs and
outputs are set as shown on the connection diagram.
When connecting speakers on XJ3.3 and 4 there is need for putting resistor with minimal value 100

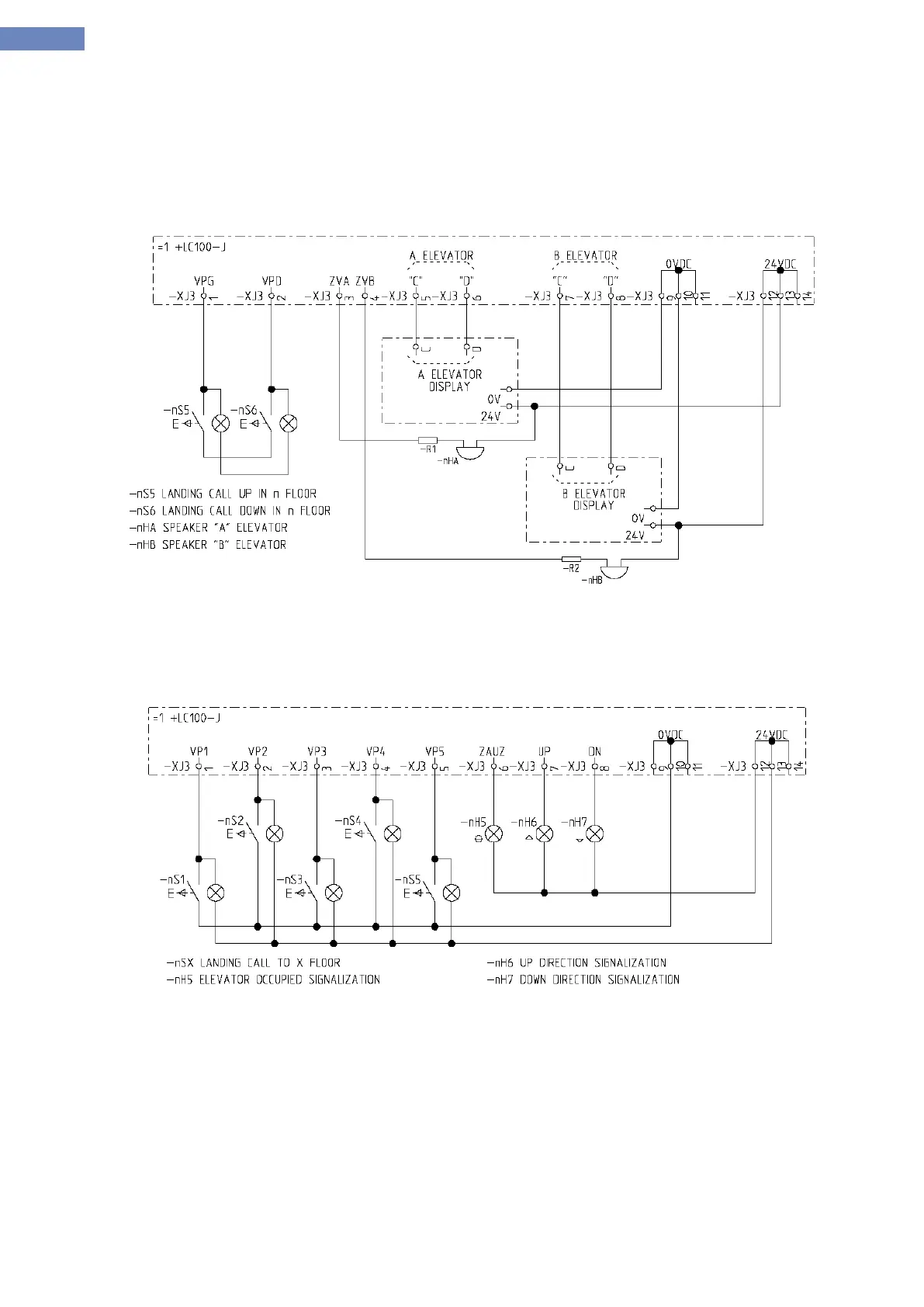

Connection diagram:
3. Floor units for elevators without cabin calls.
For LC100-J software for non passanger elevators addressing is not done, inputs are like on connection
diagram. All the landing calls are connected in parallel.
Connection diagram:
NOTE! Here are only some examples on using LC100-J, other configurations are made on request.
