MLC LC100 - 3.1.1 Basic elevator state

57
LC100 Instruction manual

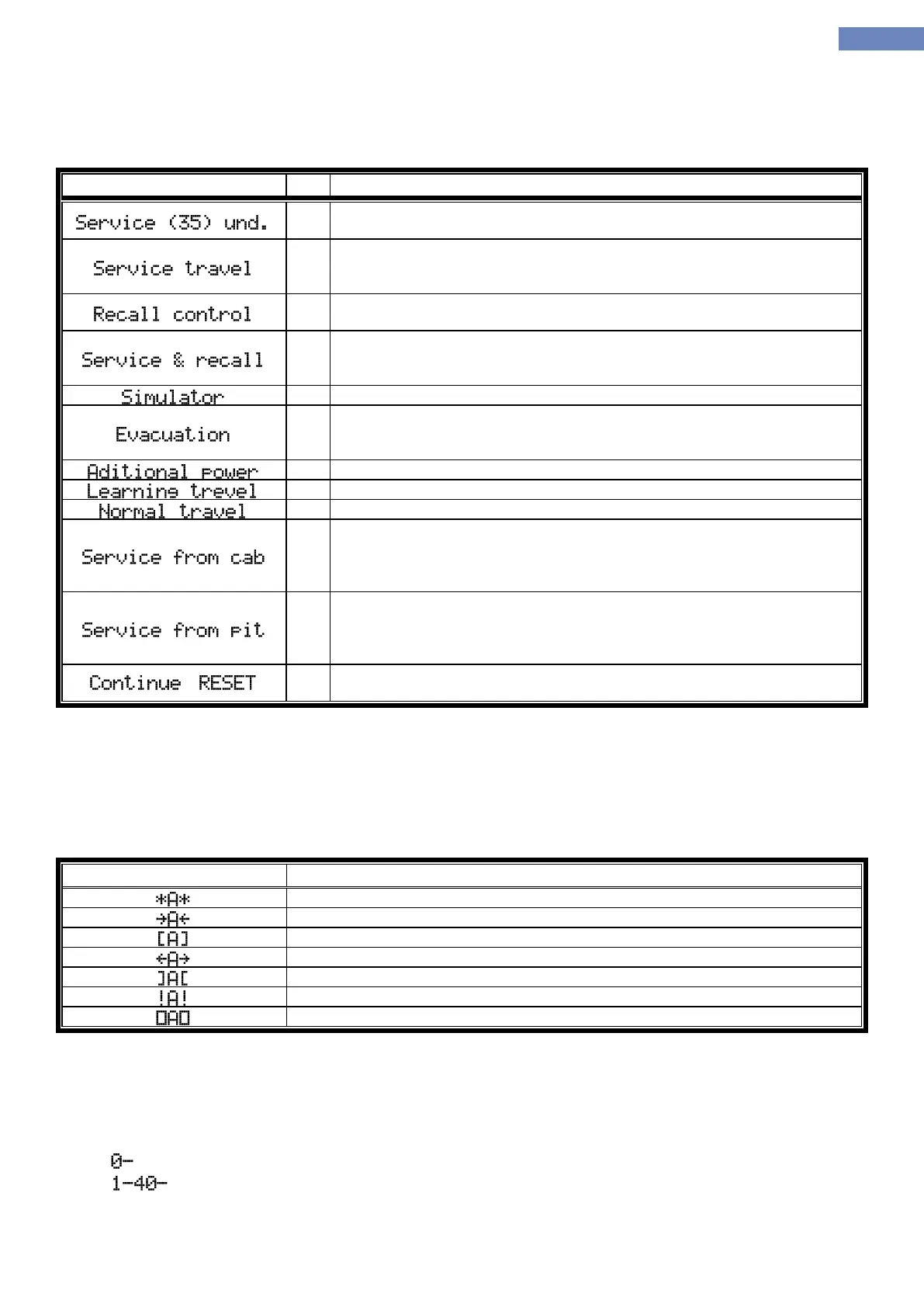

3.1.1 Basic elevator state
Basic elevator state is shown on the top line on the primary screen of terminal LC100-D.
Elevator state
ID
Description
4
Indicates that the service travel port is not defined FI-235. It is necessary to
define service travel port in configuration.
5
Indicates that the service travel is active. The message is recorded in the
statistics without time delay after switching off service travel FI-235. Cabin
calls are canceled. Landing calls are canceled in simplex mode.
6
Indicates that the recall travel is activated. The message is recorded in the
statistics without time delay after switching on recall travel FI-201.
7
Indicates that the signals are simultaneously active service and recall travel.
Service travel is priority and the recall travel is disabled. It is necessary to
turn off service travel to get the recall control.
8
Indicates that the „Simulator drive“ program is active.
9
Indicates that the evacuation of passengers from elevator due to power
failure is in process. Or evacuation input active FI-207. Elevator does
evacuation depending on the type of evacuation defined parameter A-04.
10
Indicates that the elevator is in the auxiliary power supply mode.
11
Learning travel is in process.
12
Normal travel is in process.
13
Indicates that the service travel on the cabin is active. The message is
recorded in the statistics without time delay after switching off service travel
FI-235. Cabin calls are canceled. Landing calls are canceled in simplex
mode.
14
Indicates that the service travel from the pit is active. The message is
recorded in the statistics without time delay after switching off service travel
FI-235. Cabin calls are canceled. Landing calls are canceled in simplex
mode.

28
Indicates information that for normal travel it is necessary to press reset
button on LC100-D terminal or activing FI-214.
3.1.2 Elevator door state
First three characters of the second line indicates door A state, and the first three characters of the third line for door
B state. All views of state for door A are the same for door B.
Door state
Description
Door A stoped
Closing door A
Closed door A
Opening door A
Open door A
Erorr door A
Indicates that the door A is in open position
3.1.3 Display of current elevator station
Display of current elevator station is located in the middle of the second line.
Indicates that the learning travel is not done.
Indicates current station during normal travel.
