2.19 LC100-T relay board with 8 relays
LC100-T is a relay board with 8 relays. Management of relays is performed through the 10 pin flat connector XT1
which is connected to XC10 or XK9 connector. When relays are powered trough XC10 or XK9 connector then on the
board are 6 relays. If relays are powered trough XT2 connector then there are 8 relays.

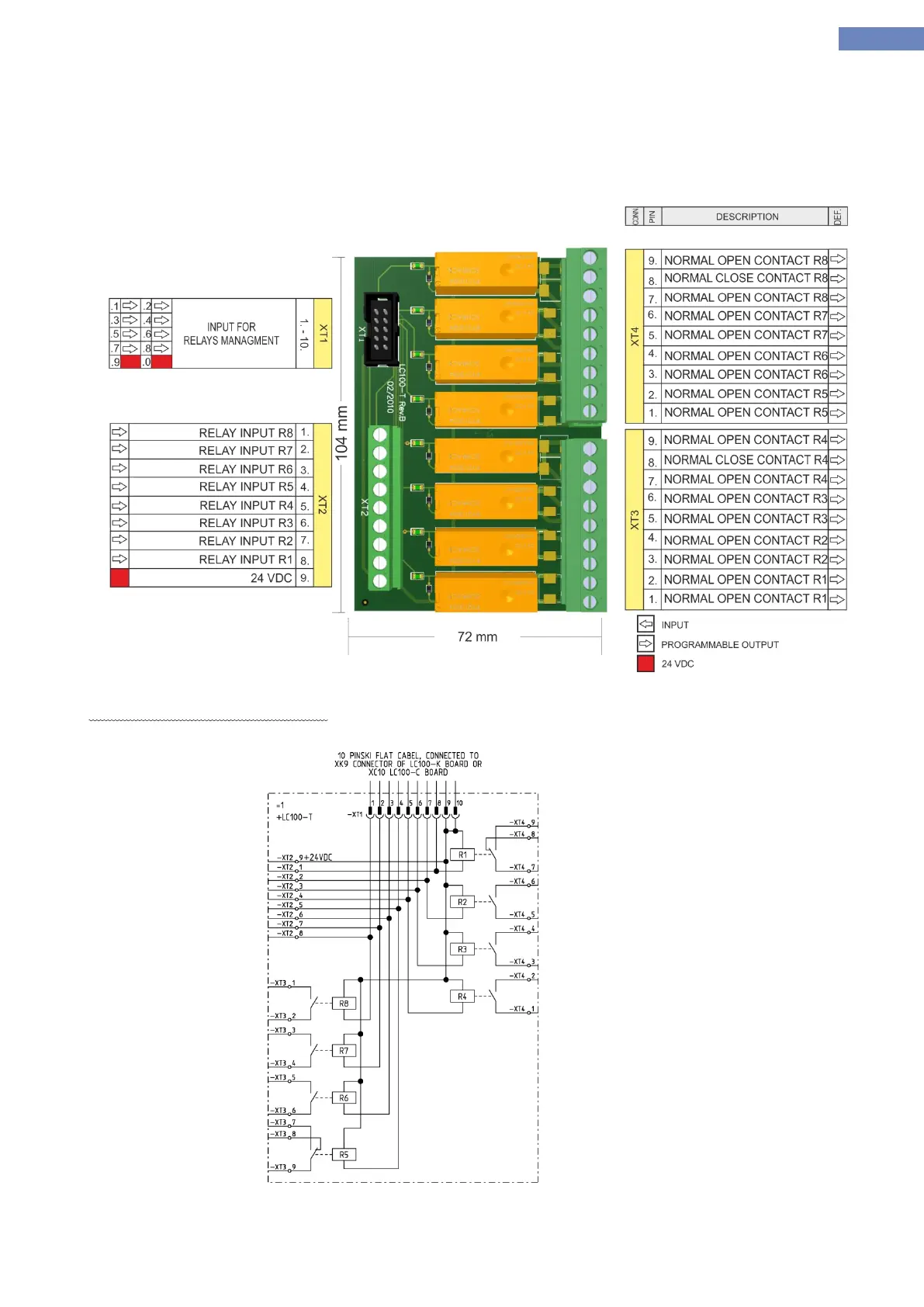

Picture 16 - LC100-T board
Relay module connection diagram:
