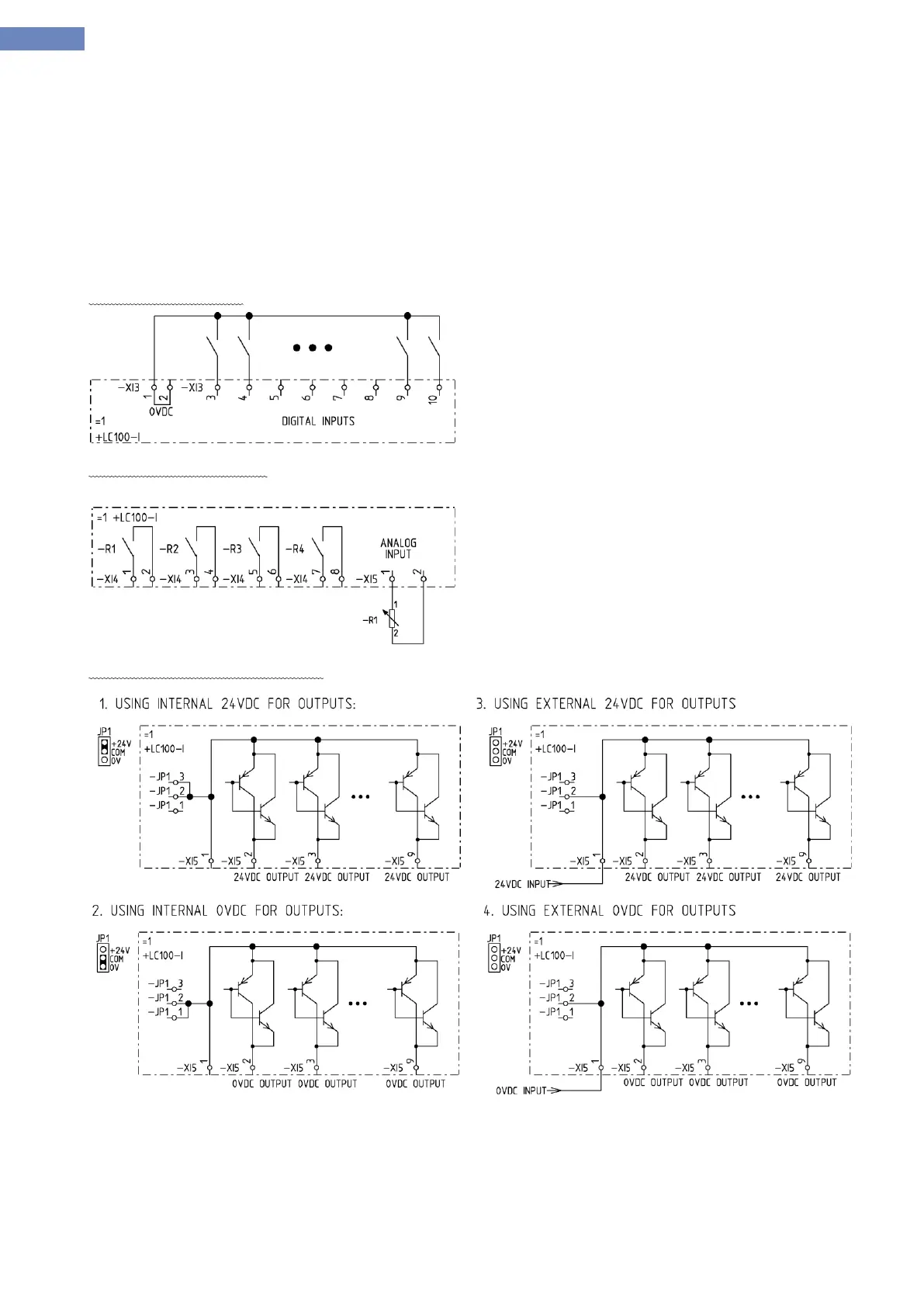

2.20 LC100-I IN/OUT board
LC100-I is input-output board used mainly on elevators whithout mashine room when there is a control cabinet in
the shaft.
LC100-I consist of :
8 digital input connected to connector XI3
4 relay output connected to XI4
8 digital output connected to XI5
Analog current input 4-20mA on XI5
Connecting the inputs:
Relay outputs connection:
Digital output connection diagram:
