MLC LC100 - Output Function Table

107
LC100 Instruction manual

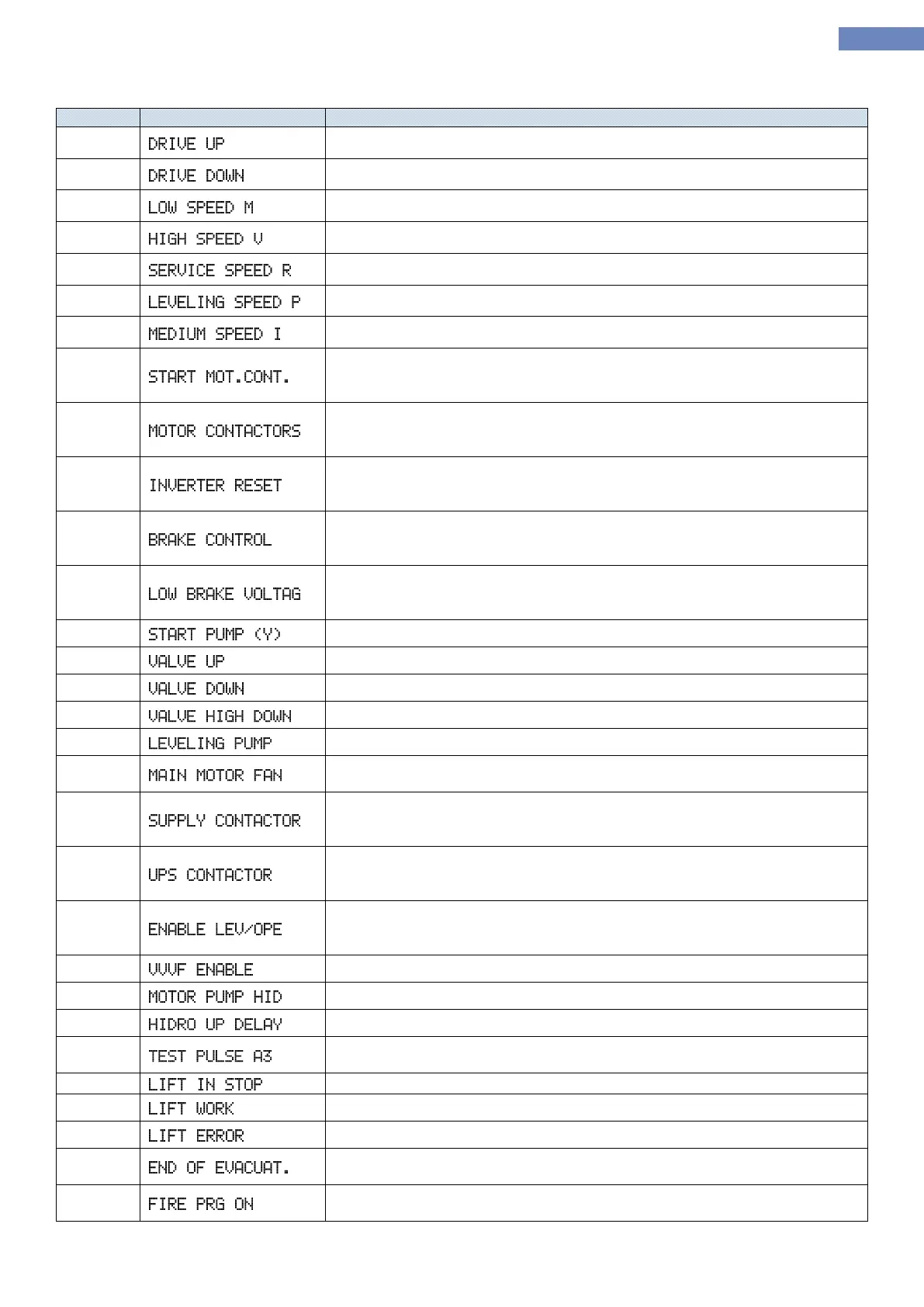

OUTPUT FUNCTION TABLE
NO
DYSPLAY ON LC100-D
DESCRIPTION
FO-001
Up travel command.
FO-002
Down travel command.
FO-003
Slow speed travelling command.
FO-004
High speed travelling command.
FO-005
Inspection speed travelling command.
FO-006
Leveling speed travelling command.
FO-007
Medium speed travelling comand.
FO-008
Motor contactor start command for frequency regulated elevator. The function
is impuls which is activated simultaneously with the function drive up or drive
down and is active during the time set by parameter T-5.
FO-009
Motor contactors command for frequency regulated elevator. The function is
switched on parallel with the function drive up or drive down and lasts entire
drive.
FO-010
Frequency inverter reset function. Function is on when the input FI-226
„inverter control“ is activated. Reset function is on for 1s and repeats to switch
on every 5s until inverter control is ok.
FO-011
Function to switch on contactor for the brake. Function is used for frequency
regulated elevators. Time to power on and power of the brake can be set
through parameters C-10 and C-11.
FO-012
Function for energy saving on the brake. Function is powered simultaneously
with the brake control function and lasts time which is programable through
parameter C-12.
FO-013
Function for starting the pump on the hydraulic elevators.
FO-014
Function for powering the up direction valve.
FO-015
Function for powering the high speed up direction valve.
FO-016
Function for powering the high speed down direction valve.
FO-017
Function for powering the relevelling pump.
FO-018
Function for main motor cooling fan. Function is on when FI-208 „bimetal
sensor“ is on and lasts until time C-13 expires.
FO-019
Supply contactor command. It is used with frequency regulated elevators with
automatic evacuation of passangers. Function is on when time T-3 expires if
there is no input on function for evacuation FI-207.
FO-020
Emergency power supply contactor command. It is used with frequency
regulated elevators with automatic evacuation of passangers. Function is on
when time T-4 expires if the evacuation input FI-207 is active.
FO-021
Function to enable relevelling and preopening the door. Function is active
when releveling if the inputs „stopping zone“ (FI-258) and one of the stopping
inputs (FI-256 or FI-257) are active.
FO-022
Frequency inverter enable function. Output is active if safety circuit is on.
FO-023
Function for motor pump used in NGV agregats.
FO-024
Aditional hydraulic pump function..
FO-025
Output for testing valve before start drive down for hydraulic type C (VVVF),
testing time parameter T-14.
FO-026
Function is active when the car is in floor level - FI-256 or FI-257 is active.
FO-027
Function is active if the elevator is in normal drive, and there is no error active.
FO-028
Function is active when the lift is in error.
FO-029
End of evacuation function. It is used in elevators with automatic passenger
evacuation. The function is on when automatic evacuation is over.
FO-030
Fire program on function. Function is active when there is one of the fire
programs active – functions FI-210 to FI-214.
