3.1.5 Active delays and errors display
If an elevator in any way is not in operational state, the bottom line of primary screen will show messages describing
the current error, or elevator failure state. All messages that are included in the statistics shoud be written in a way that
the bottom line of primary screen flash on and off every second. When there are two or more error situations, the bottom
line of primary screen will alternately show messages describing the current state of elevator.

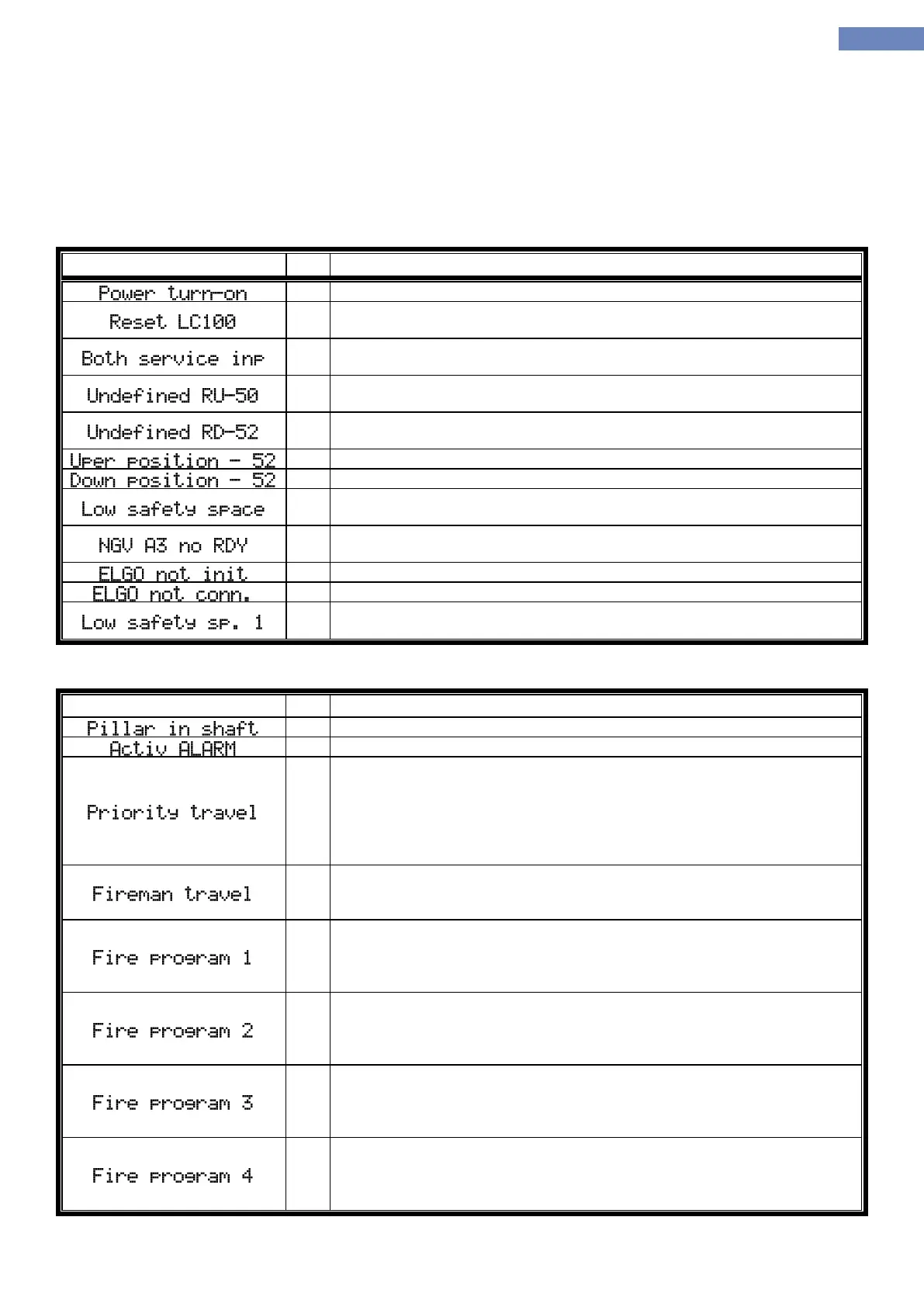

Table of active errors and failures:
Indicates that the voltage is switched on.
Indicates that the reset button is pressed on the LC100-D keyboard or reset
input is active.
Indicates that the inputs are active at the same time for button service travel
up FI-236 and service travel down FI-237
Indicates that the upper reference switch input is not defined in system
configuration FI-250 for rated speed. Service travel is disabled.
Indicates that the lower reference switch input is not defined in system
configuration FI-252 for rated speed. Service travel is disabled.
Indicates that the upper reference switch is active FI-250
Indicates that the lower reference switch is active FI-252
Indicates that the low safety space input is active FI-206. Normal travel
possible only after reset over LC100-D terminal or by activating FI-327
Indicates that after drive command is given to NGV hydraulic agregat there
is no „ready“ signal active (input FI-288) and starting is not posible.
Indicates that is not maked initial position of absolute encoder.
Indicates that absolute encoder are not connected.
Indicates that the low safety space input if active FI-308. Normal travel
possible only after activating FI-327.
Table of load meter and special program state:
Idicates that pillar in the shaft are in vertical positioning FI-309.
Indicates that alarm button is active FI-335.
Indicates that the priority tavel is active. Priority travel can be activated over
input FI-243 (key in cabin) or over the monitoring system. Message is
recorded in the statistisc without time delay. By activating priority travel all
cabin calls are deleted, elevator takes only one cabin call, landing calls are
not processed, and are deleted after the priority travel takes longer than 2
min.
Indicates that the fireman travel is active (fireman program is activated using
the same input as priority travel at the time when fire program is activated
and elevator stops at the evacuation floor )
Indicates that the fire program is activated. Fire program is activated using
adjustable input function FI-210 or over the monitoring system. Also
evacuation floor parametar must be defined B-07 After activating elevator
comes at the evacuation floor and standing with open door.
Indicates that the fire program is activated. Fire program is activated using
adjustable input function FI-211 or over the monitoring system. Also
evacuation floor parametar must be defined B-08 After activating elevator
comes at the evacuation floor and standing with open door.
Indicates that the fire program is activated. Fire program is activated using
adjustable input function FI-212 or over the monitoring system. Also
evacuation floor parametar must be defined B-09 After activating elevator
comes at the evacuation floor and standing with open door.
Indicates that the fire program is activated. Fire program is activated using
adjustable input function FI-213 or over the monitoring system. Also
evacuation floor parametar must be defined B-10 After activating elevator
comes at the evacuation floor and standing with open door.
