APPENDIX 2. TRAVELING CABLE CONNECTION
While instaling the LC100 elevator system standard prewired traveling cable is used. Connectors are on both side
of the cable.
Traveling cable consist of 22 wires, 0,75mm
2
intersection.

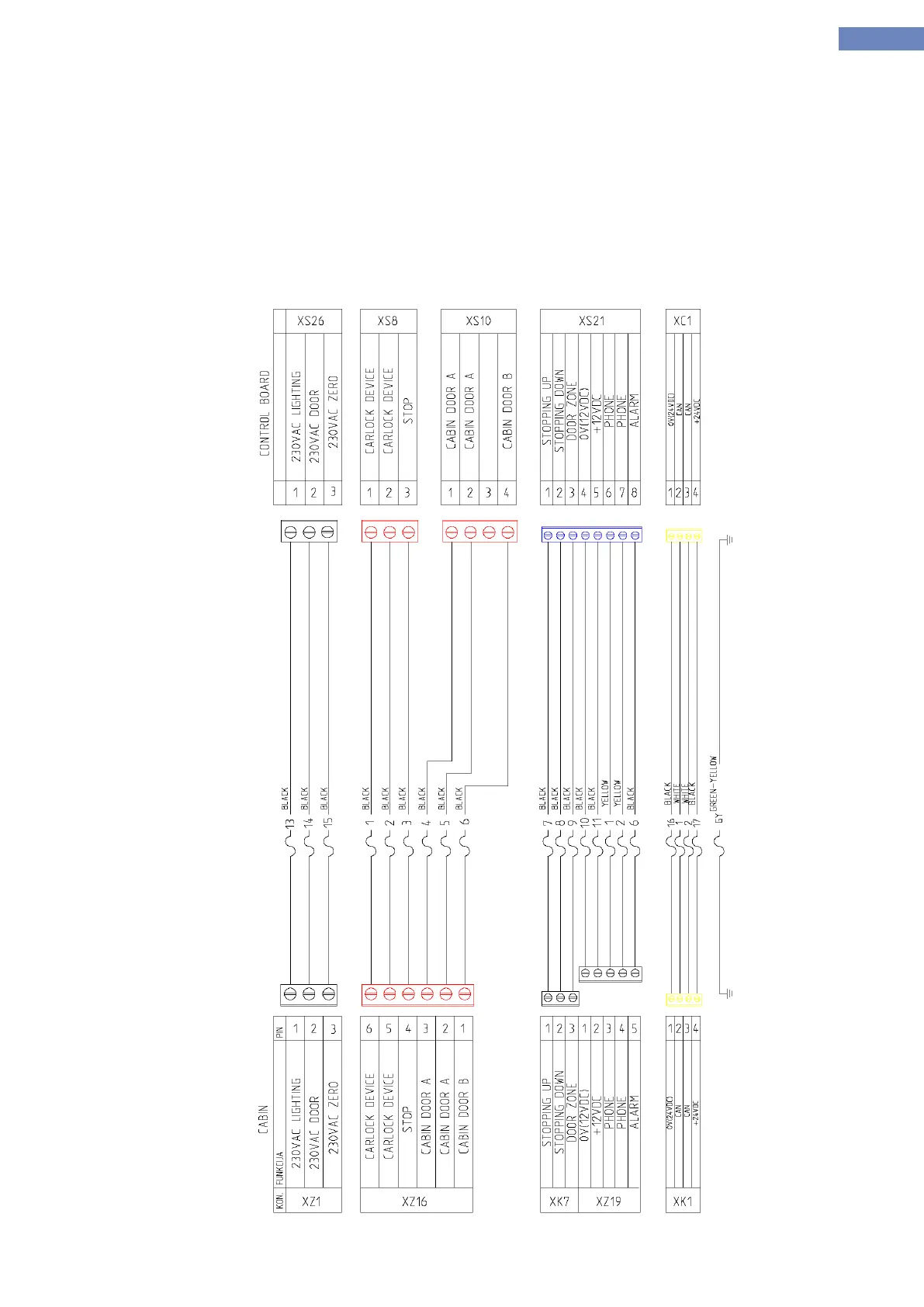

Traveling cable structure:
- 18 black wires numbered from 1. to 18.
- 2 white wires numbered 1. and 2. in steel shell.
- 2 yellow wires numbered 1. and 2. In steel shell.
