2.14 LC100-F in/out board
LC100-F board is input-output board with 16 input / output pins for the upgrade. The system can connect up to
6 LC100-F board.
To LC100-K board is possible to connect two LC100-F boards with adress „C“ and „D“, to LC100-E0 board is
possible to connect two board with adress „C“ and „D“, and to LC100-E1 board is possible to connect two boards with
adress „C“ i „D“.
Adressing the LC100-F boards is done with jumpers like it is explained on picture 6.

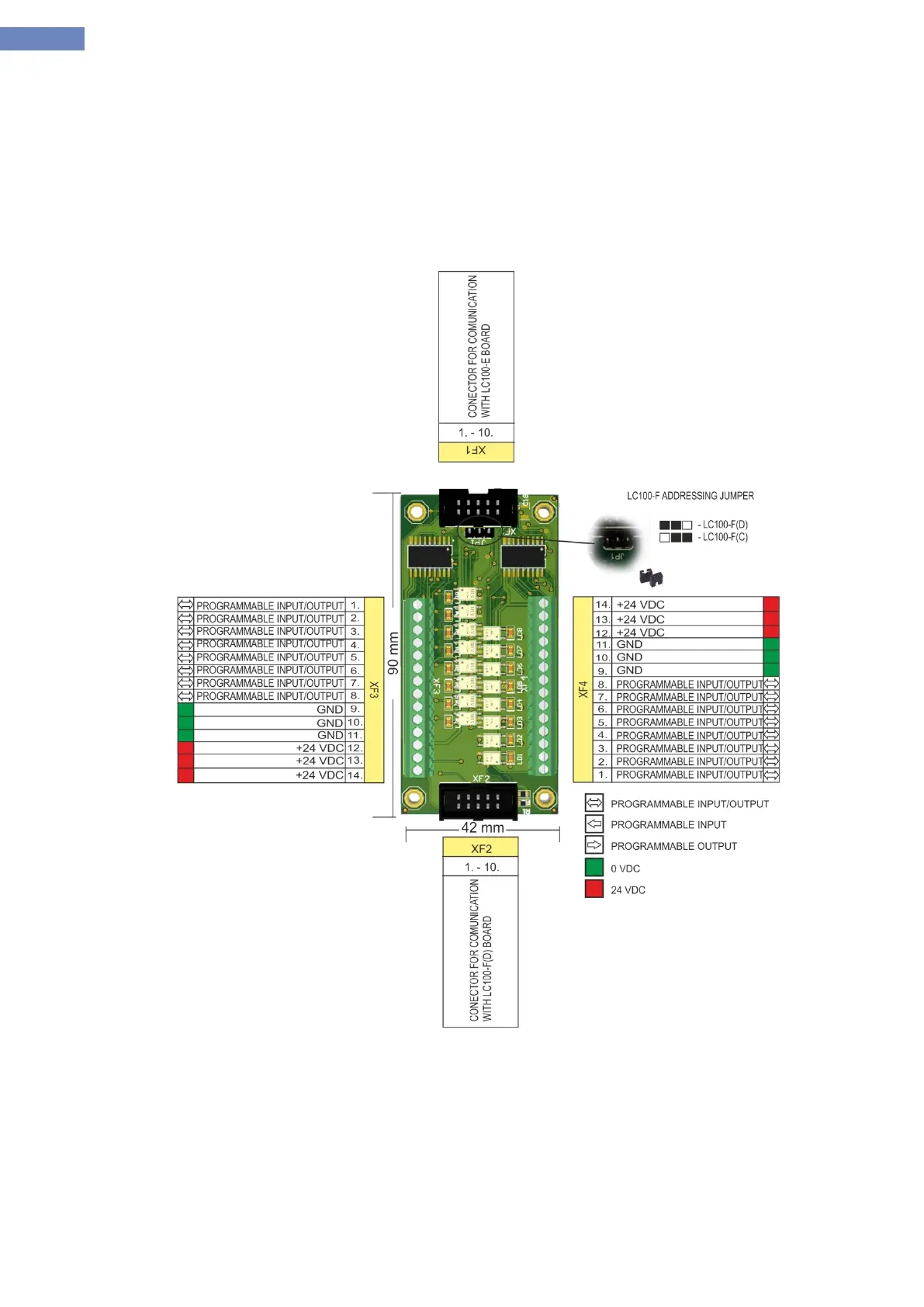

Picture 11 - LC100-F board
Connecting the LC100-F board is done with 10 pin flat cable to connectors XF1 or XF2 (connectors XF1 and XF2
are connected pin to pin). Connecting to LC100-E is done through XE5 connector, and connecting to LC100-K board
through connector XK12.
