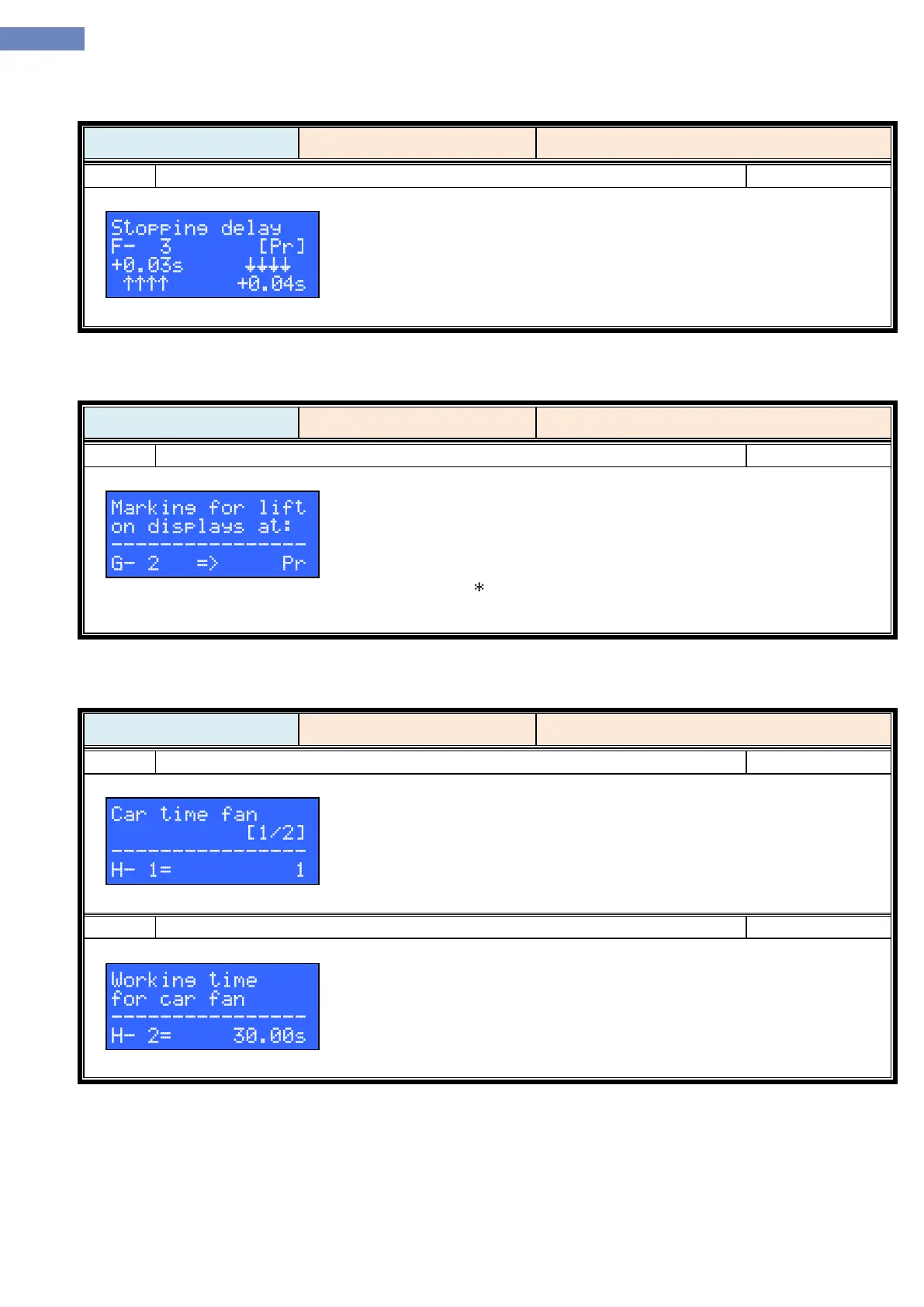

4.6 Stopping - Type F
4/6 Parameters
6/12 Stopping
Type F
F-xx
Stopping delay for x floor
0-2,55s
Parameter for setting the levelling adjustment. Parameter F-01 is setting for
1th floor, F-02 for 2nd … In bracket the floor marking is shown which is set
through parameters G-XX.
It is possible to set delay for each floor from up and down direction. Parameter
is set in seconds and represents stopping delay from reaching the stopping
magnet.
4.7 Lift markings - Type G
4/6 Parameters
7/12 Lift markings
Type G
G-xx
Marking for the lift on display on M boards
---
Parameters for setting the lift markings. Lift marking is displayed on LC100-M
landing call boards.
Parameter G-00 is marking for the unknown car position G-01 is marking for
the first floor, G-02 for second…
In order to LC100-M board showing the floor marking it is needed to set PML
parameters ( put „ “ sign under the letter „A“ for floors in which is the LC100-
M board).
4.8 Timers - Type H
4/6 Parameters
8/12 Timers
Type H
H-01
Type of car fan control
1-2
Parameter for setting the car fan control type.
1 – Car fan (function FO-50) is switched on after the input car fan is trigered
(FA-561) and is switched on time set in parameter H-02.
2 – Car fan (FO-50) is switched on automaticly every time that car is driving
and is switched off after car has stopped and time H-02 has expired.
H-02
Working time for car fan
0-250s
Parameter for setting the working time for car fan.
