2.18 LC100-R relay board with 4 relays
LC100-R is relay circuit board with 4 relays. Management of relays is performed through the 10 pin flat connector
XR1 which is connected to XC10 or XK9 connector, managment of relays is also possible through XR2 connector.
Relay modul consist of 4 releys – on R1, R2 i R3 normaly open contact connected to XR3, on R4 change over
contact connected to XR3.
Picture 15 - LC100-R board

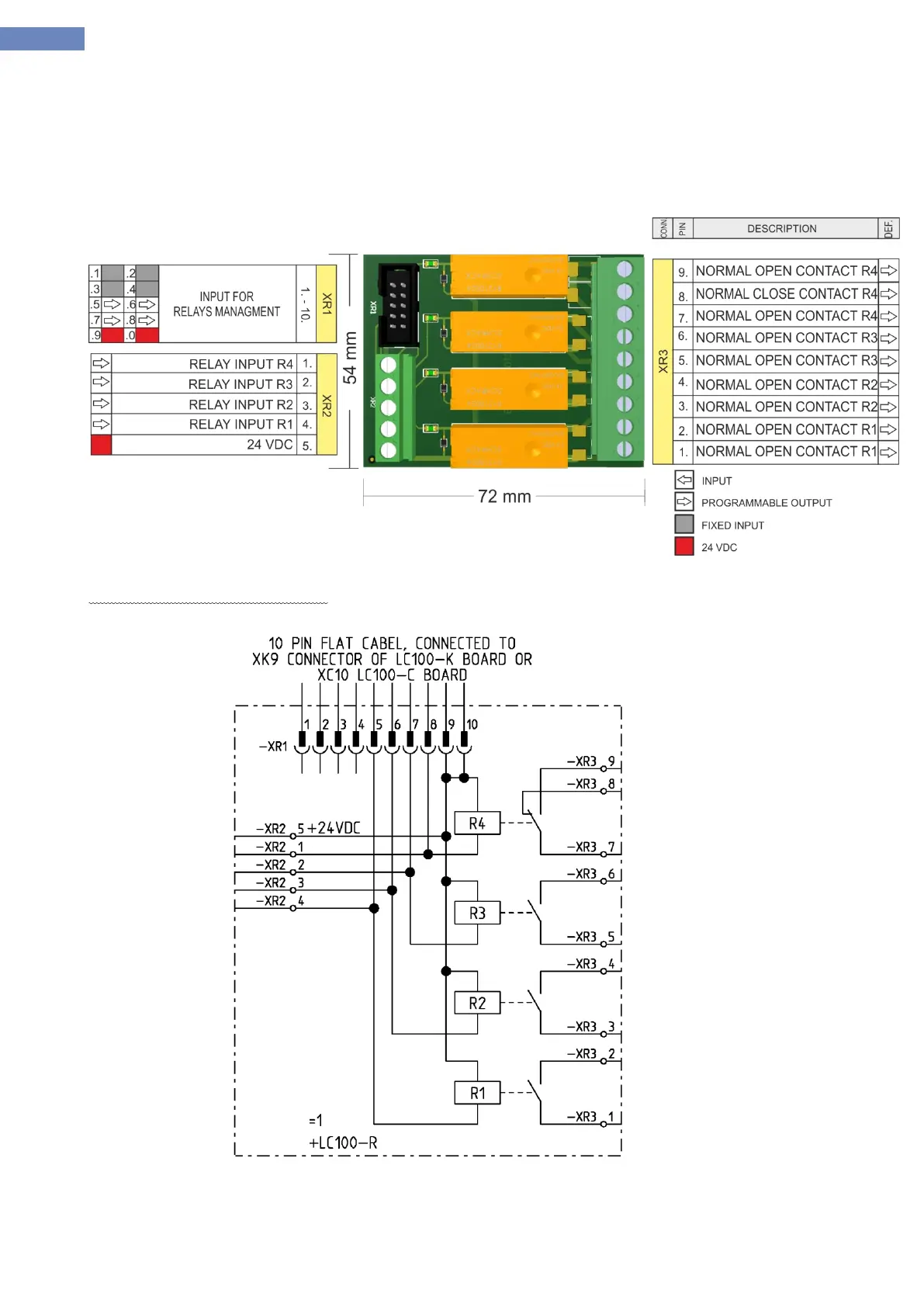

Relay module connection diagram:
