2.24 LC100-V load measurement board
LC100-V board is used to connect the load measurement cells. It has four connectors for connecting up to four
cells and a flat connector for connecting it to the LC100-K board.
Programming the load measurement is done with the LC100-D2 keyboard as explained in additional menu, section
5/7 LOAD MEASUREMENT

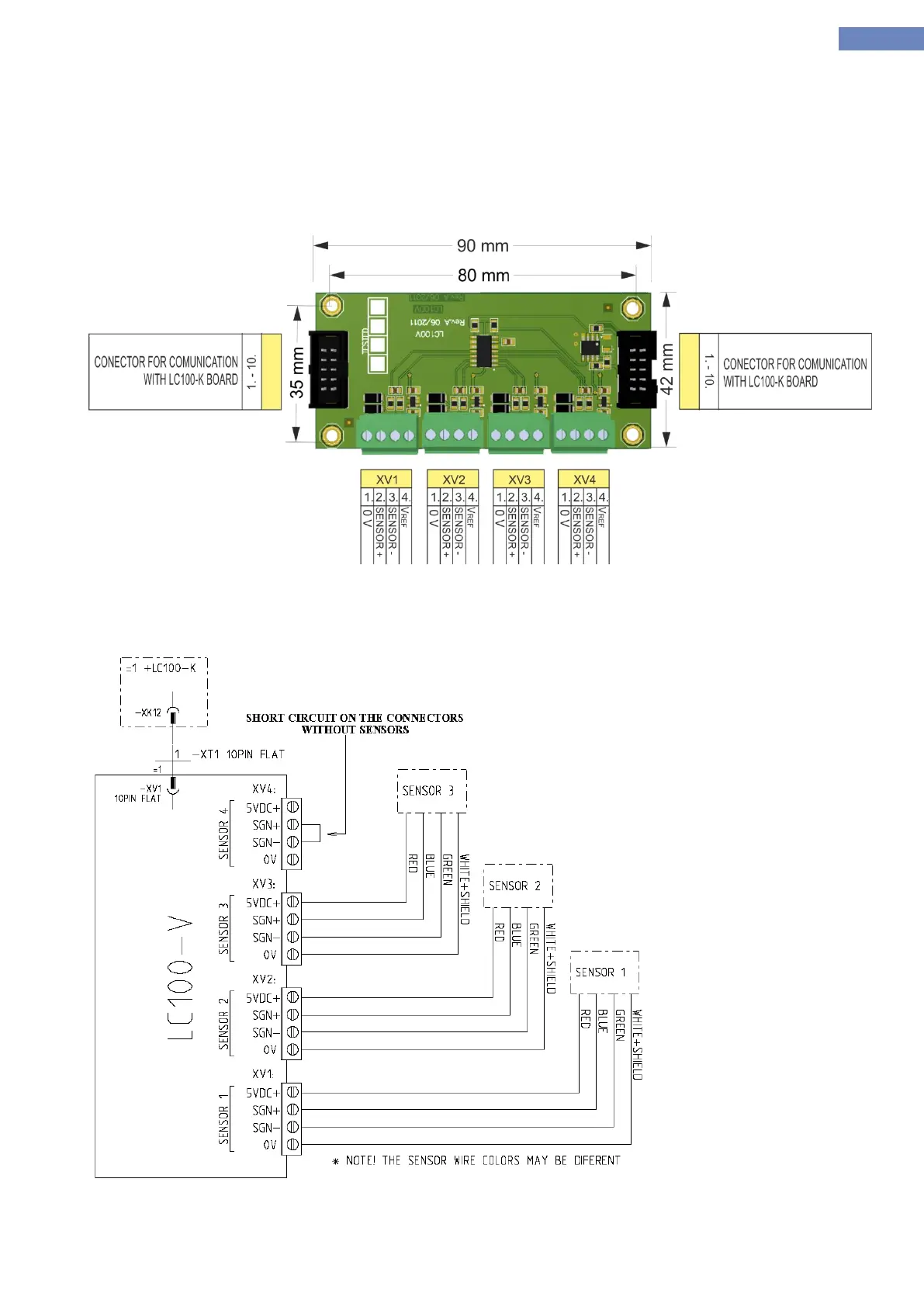

Connection diagram for LC100-V:
