2.2 LC100-K cabin I/O board
LC100-K board is used as an input/output unit for elevator cabin.
Suply is 24VDC and is powered via CAN / power connector XK1, XK2.
All inputs and outputs on the LC100-K board are programmable. You can change the polarity of
the inputs (NO or NC) and output (NOR or INV).
Dimensions of board is 155x72mm, mounting is done on TS35 rail using a carrier plate.

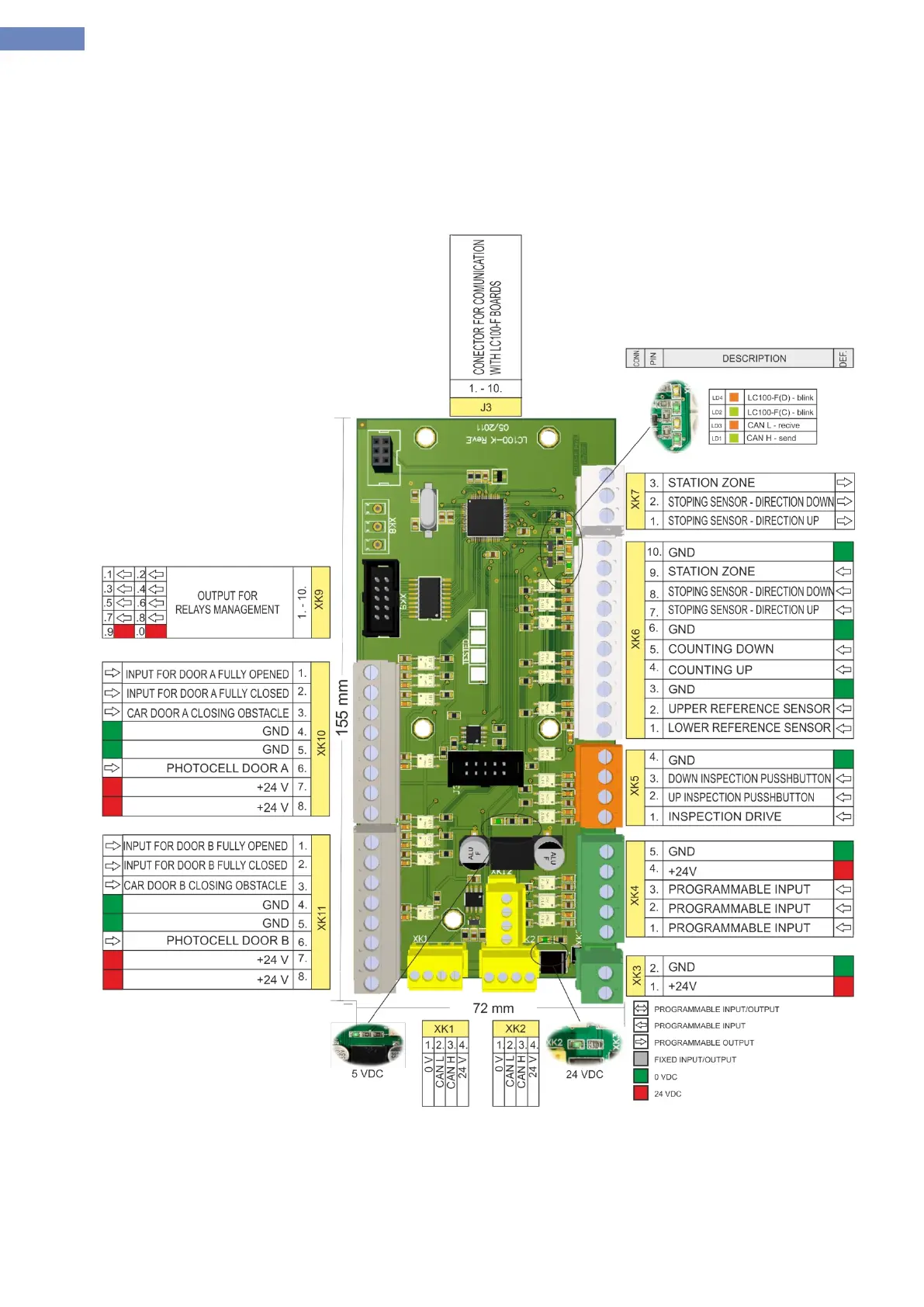

Picture 3 - LC100-K board
