2.21.3 LC100-M7 segment display
LC100-M7 landing display is done in two versions:
LC100-M7B Blue 7-segment display
LC100-M7R Red 7-segment display
LC100-M7 displays are used as landing displays with connector for connecting the landing calls. Connection to the
displays is made trough XC12 connector which is CAN2 bus.
Each display is addressed for a floor. Addressing is done through the aditional menue for addressing.
What the displays will show can be set trough P-M-L modules TYPE P.

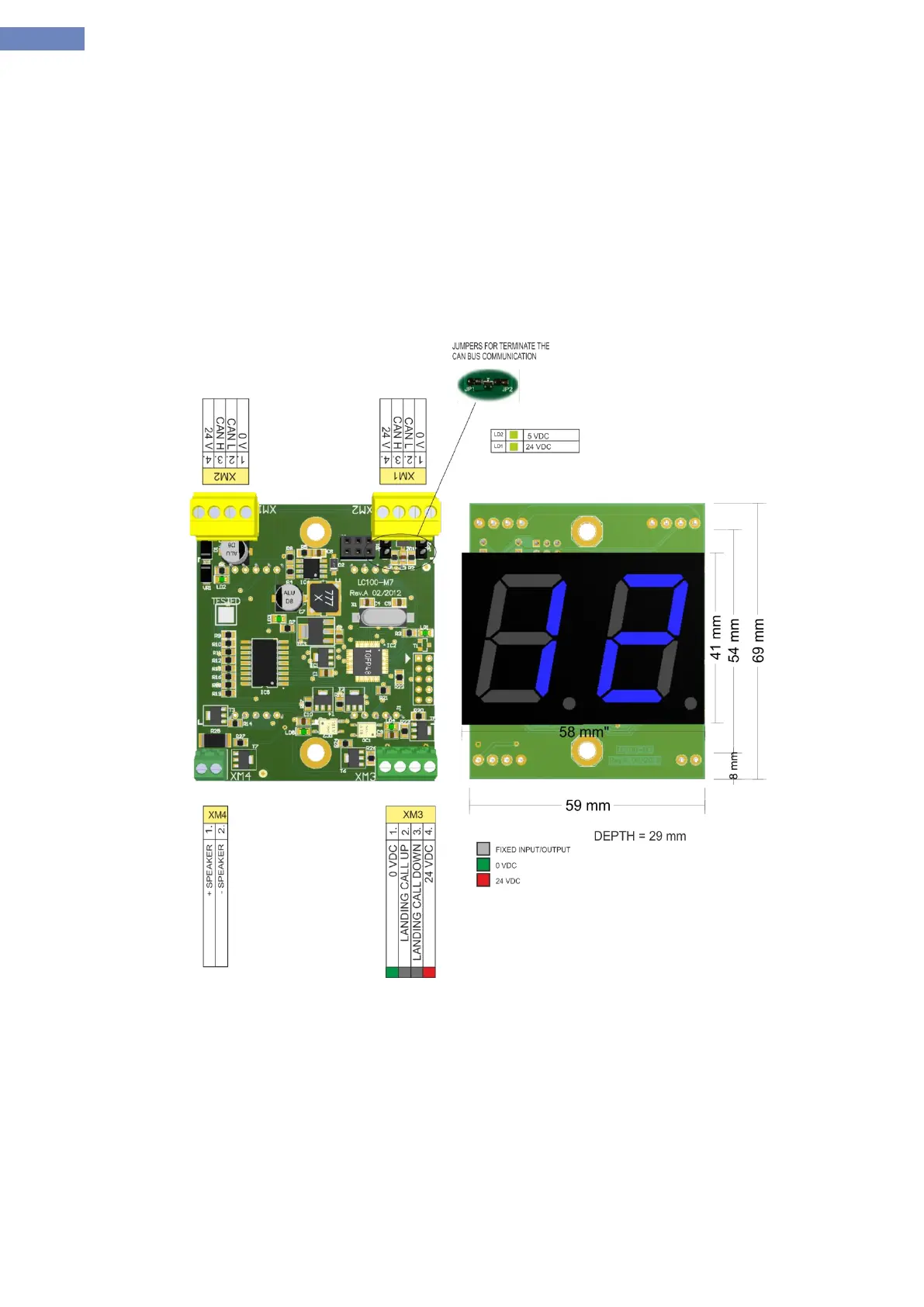

Picture 20 - LC100-M7 segment display
