MLC LC100 - LC100-V2 Load Measurement Board

50
LC100 Instruction manual
2.25 LC100-V2 load measurement board
LC100-V2 board is used to connect the load measurement cells.
Programming the load measurement is done with the LC100-D2 keyboard as explained in additional menu, section
5/7 LOAD MEASUREMENT
Connection diagram for LC100-V2:

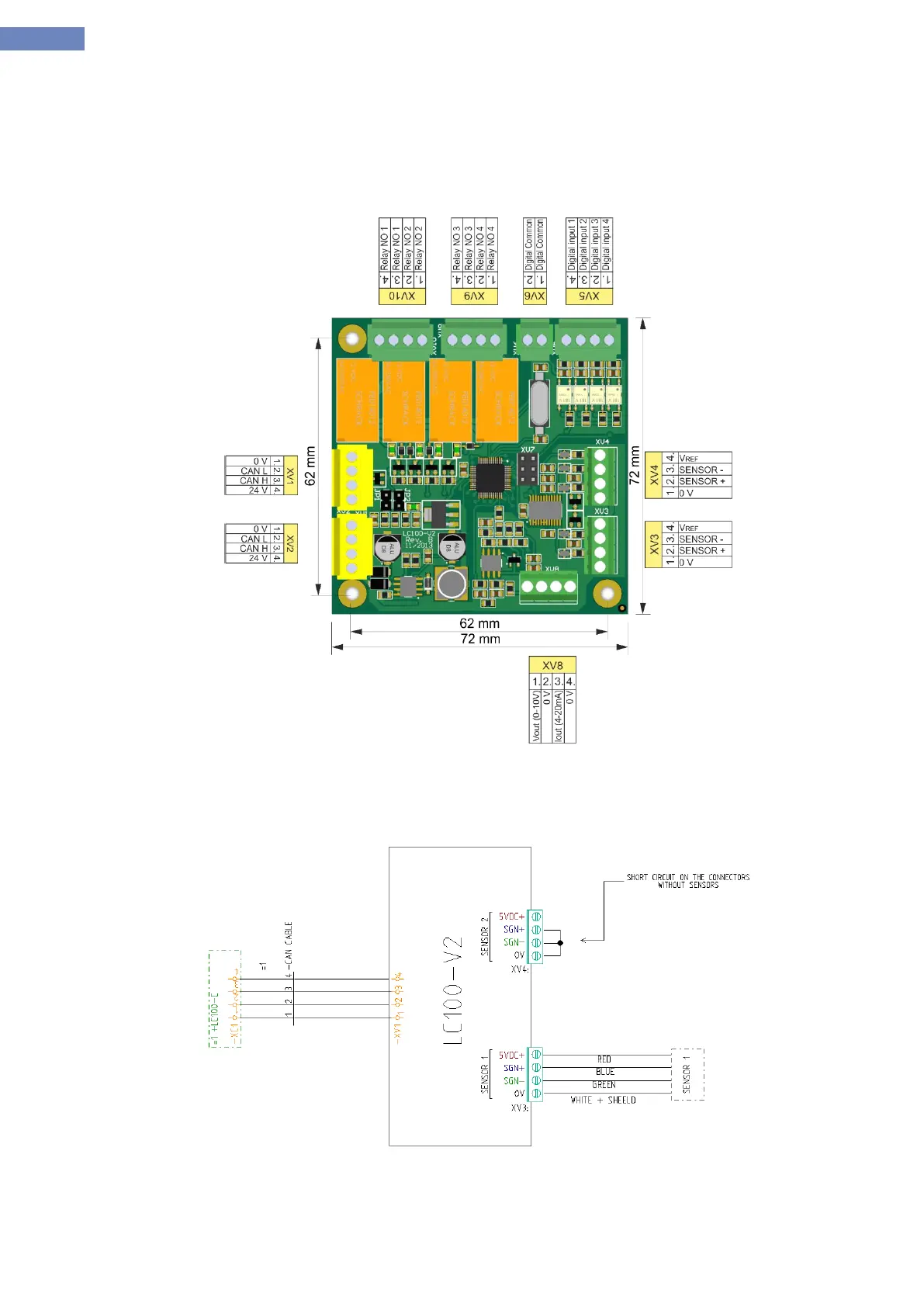

Picture 28 LC100-V2 board
