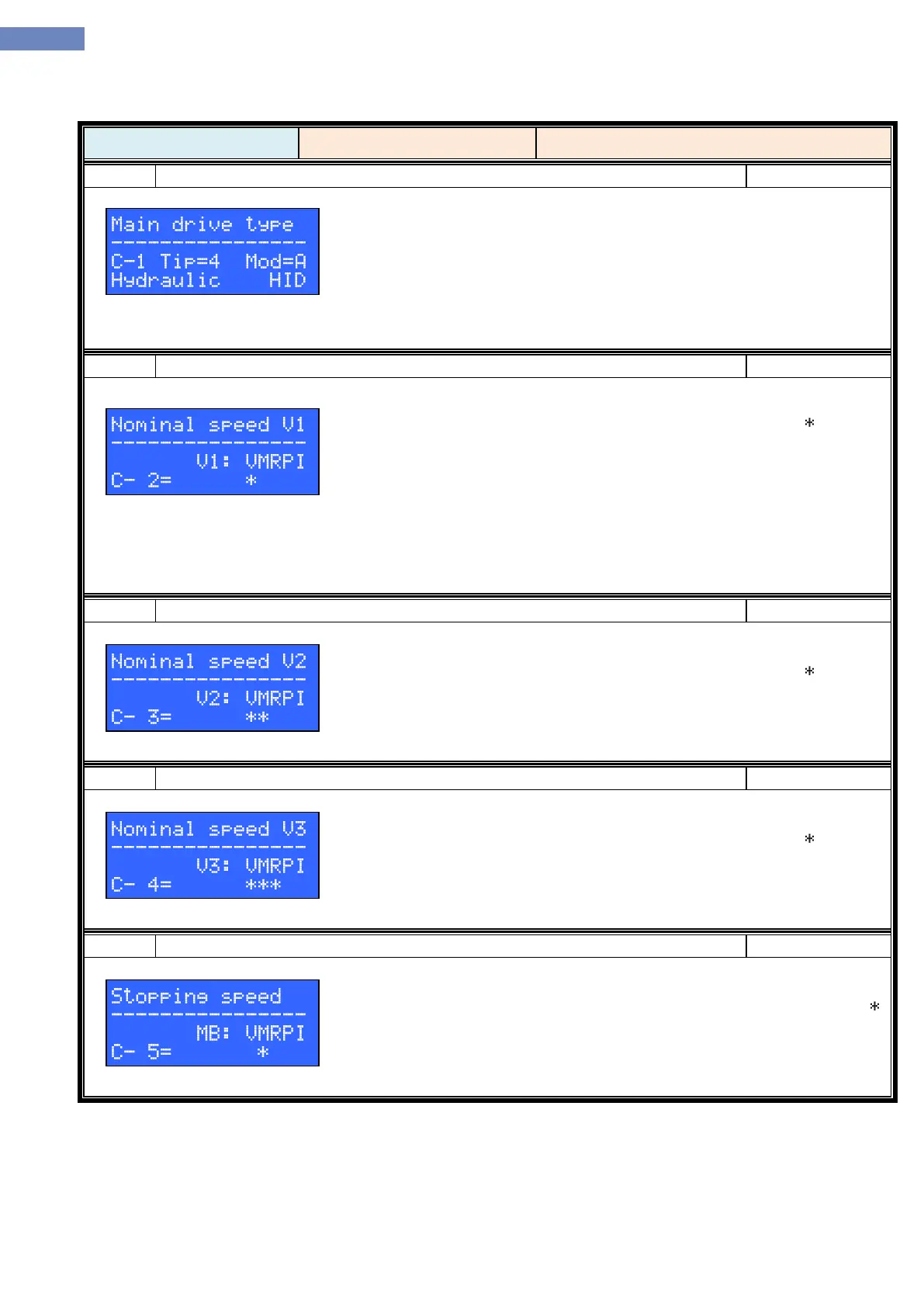

4.3 Main drive - Type C
Parameter is used for defining the main drive type.
1 –Not regulated AC1 – One speed elevator. When the drive is one speed
not regulated than also parameter E-01 must be set to 1. Also parameter C-
15 must be set to 1.
2 – Not regulated AC2 – Two speed not regulated elevator.
3 – Regulated VVVF – Frequency regulated elevator.
4 – Hydraulic HID – Hydraulic elevator.
Parameter is used to set speed encoding for nominal speed V1. Parameter is
available only for frequency regulated elevators (C-01=3). Sign „ “ under a
specific letter means that in nominal speed board activates the outputs with the
belonging parameter
Meaning of the letters:
V – Output on which „high speed“ function is set FO-004.
M – Output on which „low speed“ function is set FO-003.
R – Output on which „inspection speed“ is set FO-005.
P – Output on which „relevelling speed“ is set FO-006.
I – Output on which „intermidiate speed“ is set FO-007.
Parameter is used to set speed encoding for nominal speed V2. Parameter is
available only for frequency regulated elevators (C-01=3). Sign „ “ under a
specific letter means that in nominal speed board activates the outputs with the
belonging parameter.
Meaning of the letters is explained in parameter C-2.
Parameter is used to set speed encoding for nominal speed V3. Parameter is
available only for frequency regulated elevators (C-01=3). Sign „ “ under a
specific letter means that in nominal speed board activates the outputs with the
belonging parameter.
Meaning of the letters is explained in parameter C-2.
Parameter is used to set speed encoding for stopping speed (levelling speed).
Parameter is available only for frequency regulated elevators (C-1=3). Sign „ “
under a specific letter means that in stopping speed board activates the outputs
with the belonging parameter.
Meaning of the letters is explained in parameter C-2.
