Parameter is used to set speed encoding for relevelling speed. Parameter is
available only for frequency regulated elevators (C-01=3). Sign „ “ under a
specific letter means that in relevelling speed board activates the outputs with the
belonging parameter.
Meaning of the letters is explained in parameter C-2.
Parameter is used to set speed encoding for inspection speed 1. Parameter is
available only for frequency regulated elevators (C-01=3). Sign „ “ under a
specific letter means that in intermidiate speed board activates the outputs with
the belonging parameter.
Meaning of the letters is explained in parameter C-2.
Example for encoding the nominal speed and inspection speed.

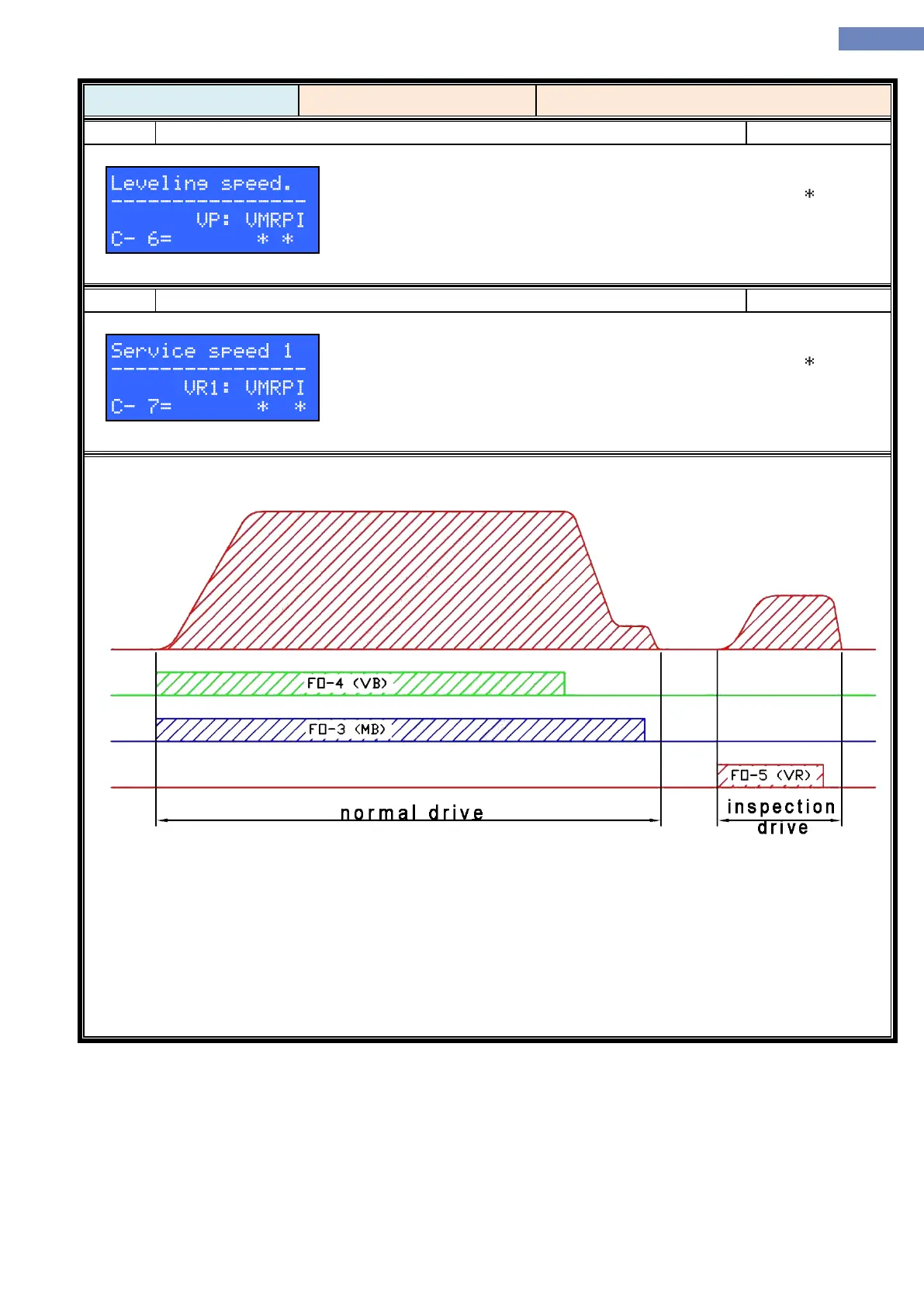

On the diagram there is a example for speed encoding for frequency regulated elevator. In the start the speed
encoding is for nominal speed C-03 (active is outut for nominal speed FO-004 and output for low speed FO00-
3). When slowing down elevetor switches to levelling speed C-04 (output for nominal speed is switched off FO-
004, and output for slow speed FO-003 stays on).
When driving with the service speed elevator switches on the outputs defined through parameter C-05 (output
for inspection speed FO-005).
Example on the diagram is only informative, it is shown based on the example of parameters in this manual.
Real encoding for the speeds depends on type of frequency regulator and wireing of the cabinet.
