4.4 Doors - Type D
4/6 Parameters
4/12 Door
Type D
D-1
Cabin door
0-2

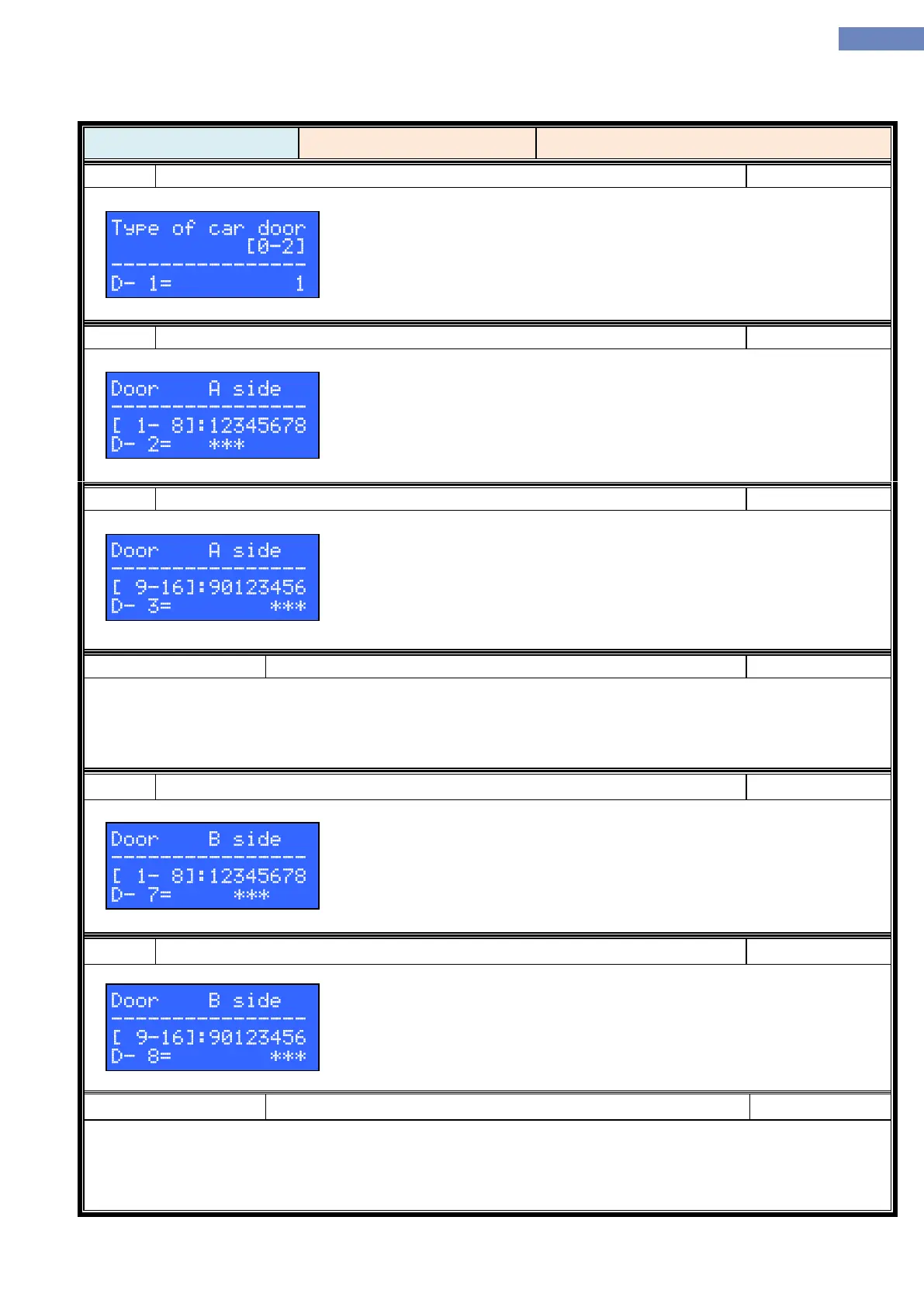

Cabin door type selection:
0- No door or manual door
1- One automatic cabin door
2- Two automatic cabine doors
In the case of two cabin doors, door opening in the stations must be defined
over the parameters D-02 to D-11.
D-2
A-side door for stations 1 to 8
---
A-side door opening selection in case of two cabin doors (D-01=2).
Parameter D-02 select door opening in the stations 1 to 8.
Example shows door opening in the stations 1, 2 and 3.
D-3
A-side door for stations 9 to 19
---
A-side door opening selection in case of two cabin doors (D-01=2).
Parameter D-03 select door opening in the stations 9 to 16.
Example shows door opening in the stations 14, 15 and 16.
D-4, D-5, D-6
A-side door
---
D-4 - same as D-3 but for the stations 17 to 24
D-5 - same as D-3 but for the stations 15 to 32
D-6 - same as D-3 but for the stations 33 to 40
D-7
B-side door for stations 1 to 8
---
B-side door opening selection in case of two cabin doors (D-01=2).
Parameter D-07 select door opening in the stations 1 to 8.
Example shows door opening in the stations 3, 4 and 5.
D-8
B-side door for stations 9 to 16
---
B-side door opening selection in case of two cabin doors (D-1=2).
Parameter D-08 select door opening in the stations 9 to 16.
Example shows door opening in the stations 14, 15 and 16.
D-9, D-10, D-11
B-side door
D-9 - same as D-8 but for the stations 17 to 24
D-10 - same as D-8 but for the stations 15 to 32
D-11 - same as D-8 but for the stations 33 to 40
