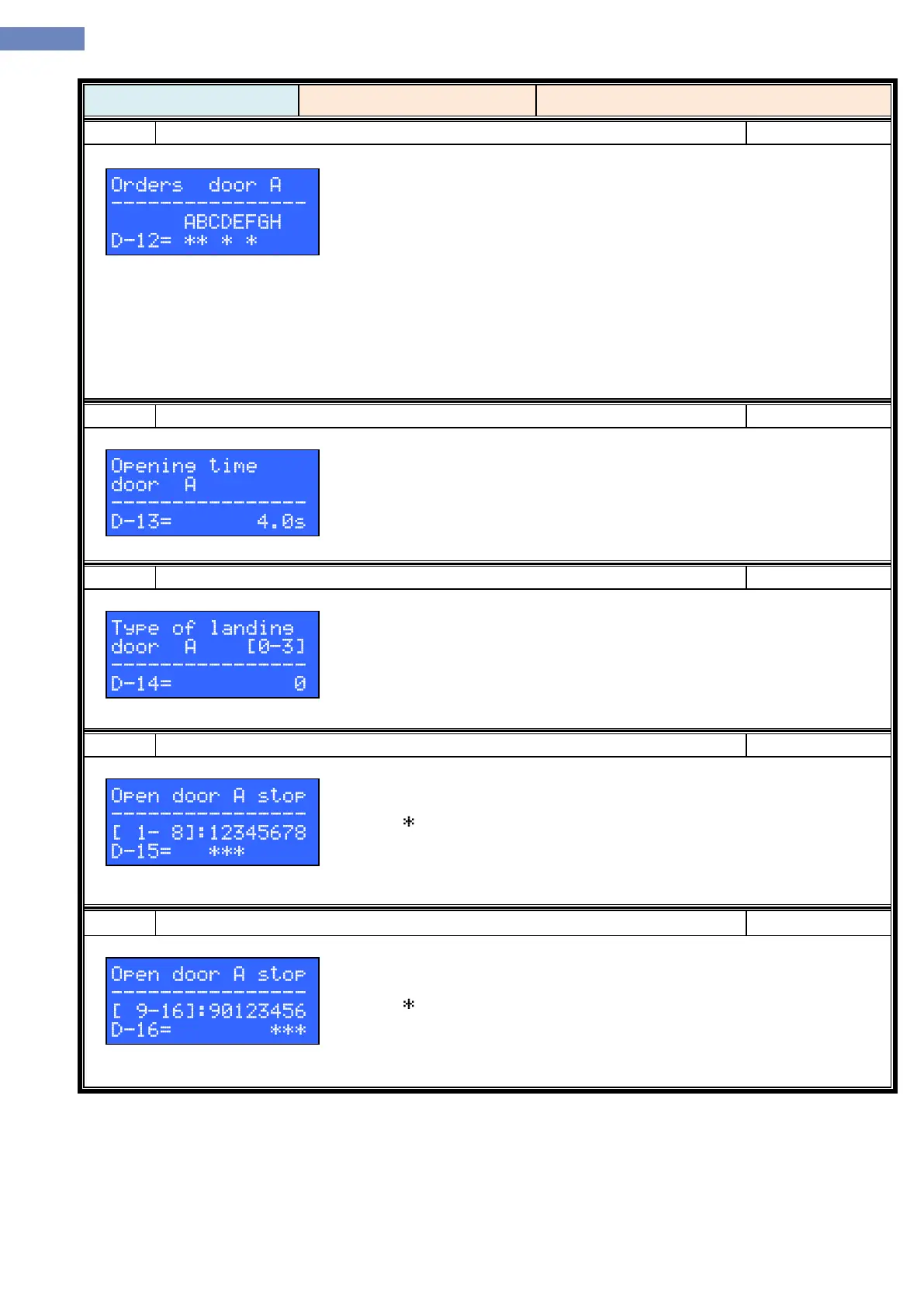

Voltage holding definition (command open or close active) for cabin door at
A-side.
A – Close door output FO-41 is active during travel.
B – Open door output FO-40 is active during passanger passing time.
C – Close door output FO-41 is active when the door is closed.
D – Close door output FO-41 is active during inspection travel FI-235 or feedback control FI-201 except
while open door order is active.
E – Close door output FO-41 is active during normal travel when elevator is not in the station (active
input FI-256 or FI-257), except while open door order is active..
F – Includes door manipulation over the feedback control (applies to the door B).
G – don't use nuding door A
Door A opening time defining.
It is used in case of no door end-switches (FI-260 and FI-261) or as
maximum door manipulation time during inspection travel.
A-side landing door type:
0 – Semi-automatic or manual door with mechanical locking.
1 – Automatic door with mechanical locking.
2 – Semi-automatic or manual door with electrical locking
3 – Automatic door with electrical locking.
A-side automatic door open in stations 1 to 8
Defining stations in which elevator waiting with door A open. For stations 1 to 8.
Parameter has function with automatic landing door A D-14=1 or 3.
Symbol „ “ below the number means that elevator waits in that station with door
open.
Example shows that elevator in standby in stations 1, 2 and 3 waiting with door
open. In other stations keeps door closed.
A-side automatic door open in stations 9 to 16
Defining stations in which elevator waiting with door A open. For stations 9 to
16. Parameter has function with automatic landing door A D-14=1 or 3.
Symbol „ “ below the number means that elevator waits in that station with door
open.
Example shows that elevator in standby in stations 14, 15 and 16 waiting with
door open. In other stations keeps door closed.
