MLC LC100 - Page 91

91
LC100 Instruction manual
4/6 Parameters
4/12 Door
Type D
D-17, D-18, D-19
Door A open
---
D-17 - same as D-16 but for stations 17 to 24
D-18 - same as D-16 but for stations 15 to 32
D-19 - same as D-16 but for stations 33 to 40

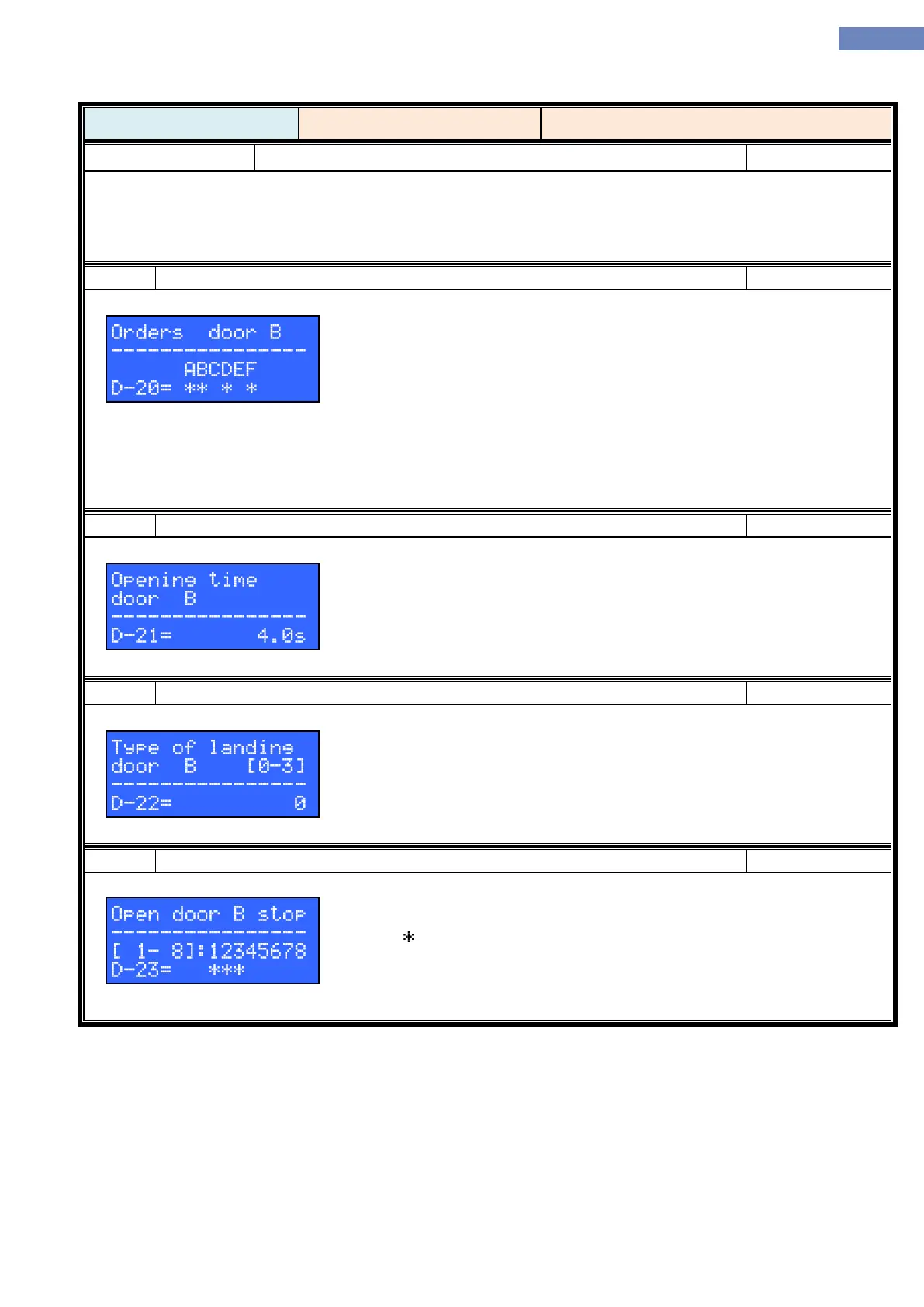

D-20
B-side door orders
0-7
Voltage holding definition definition (command open or close active) for cabin
door at B-side.
A – Close door output FO-45 is active during travel.
B – Open door output FO-44 is active during passanger passing time.
C – Close door output FO-45 is active when the door is closed.
D – Close door output FO-45 is active during inspection travel FI-235 or feedback control FI-201 except
while open door order is active.
E – Close door output FO-45 is active during normal travel when elevator is not in the station (active
input FI-256 or FI-257), except while open door order is active.
F – Includes door manipulation over the feedback control (applies to the door B).
D-21
B-side door opening time
0-25s
Door A opening time defining.
It is used in case of no door end-switches (FI-270 and FI-271) or as
maximum door manipulation time during inspection travel.
D-22
B-side landing door type
0-3
B-side landing door type:
0 – Semi-automatic or manual door with mechanical locking.
1 – Automatic door with mechanical locking.
2 – Semi-automatic or manual door with electrical locking
3 – Automatic door with electrical locking.
D-23
B-side automatic door open in stations 1 to 8
---
Defining stations in which elevator waiting with door B open. For stations 1 to 8.
Parameter has function with automatic landing door B D-22=1 or 3.
Symbol „ “ below the number means that elevator waits in that station with door
open.
Example shows that elevator in standby in stations 1, 2 and 3 waiting with door
open. In other stations keeps door closed.
