2.21.2 LC100-M6 dot matrix display
LC100-M6 matrix dot display with resoluton 16x16 dots is made in two versions:
LC100-M6B Blue dot display
LC100-M6R Red dot display
LC100-M6 displays are used as landing displays with connector for connecting the landing calls. Connection to the
displays is made trough XC12 connector which is CAN2 bus.
Each display is addressed for a floor. Addressing is done through the aditional menue for addressing.
What the displays will show can be set trough P-M-L modules TYPE P.

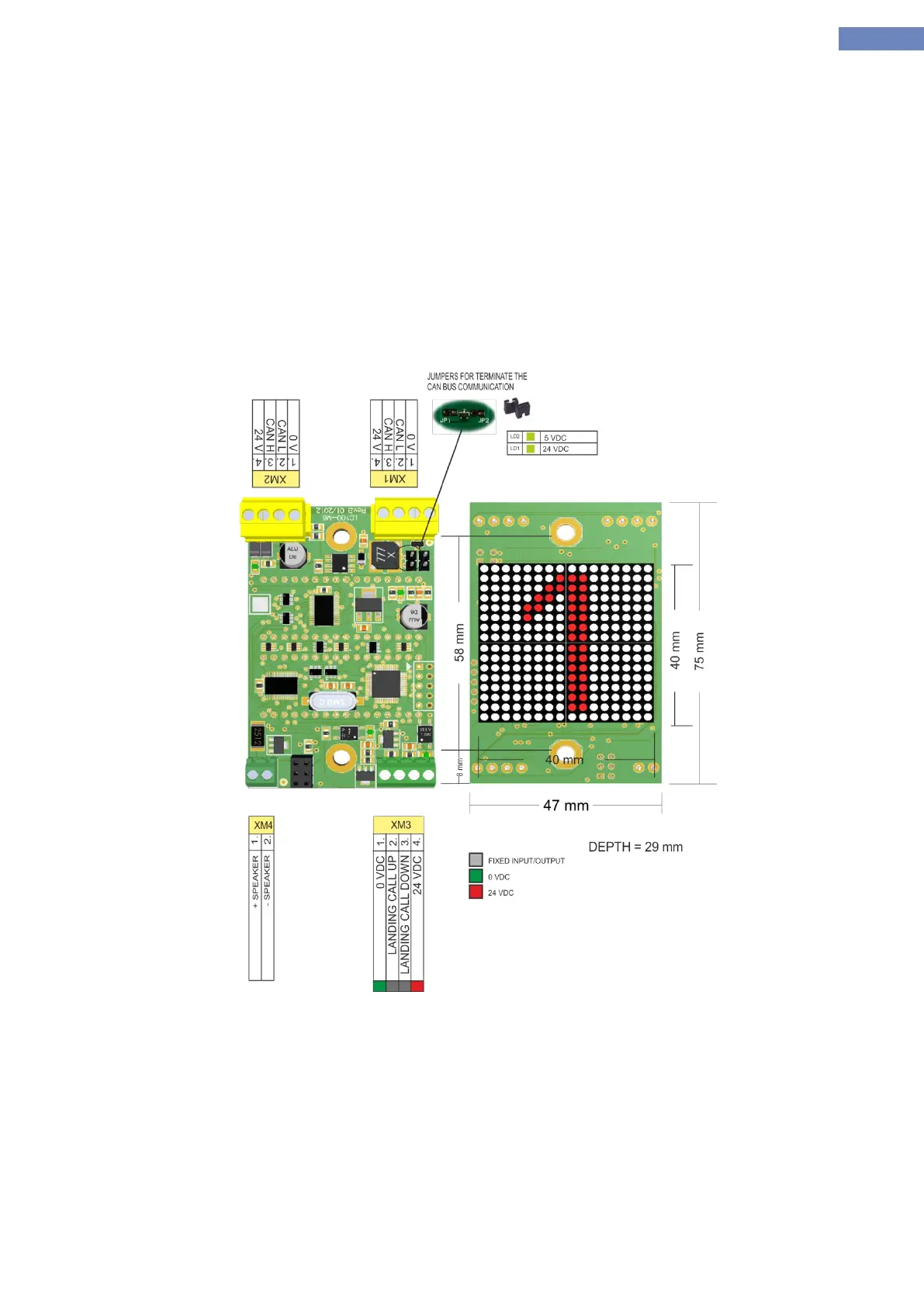

Picture 19 - LC100-M6 dot matrix display
