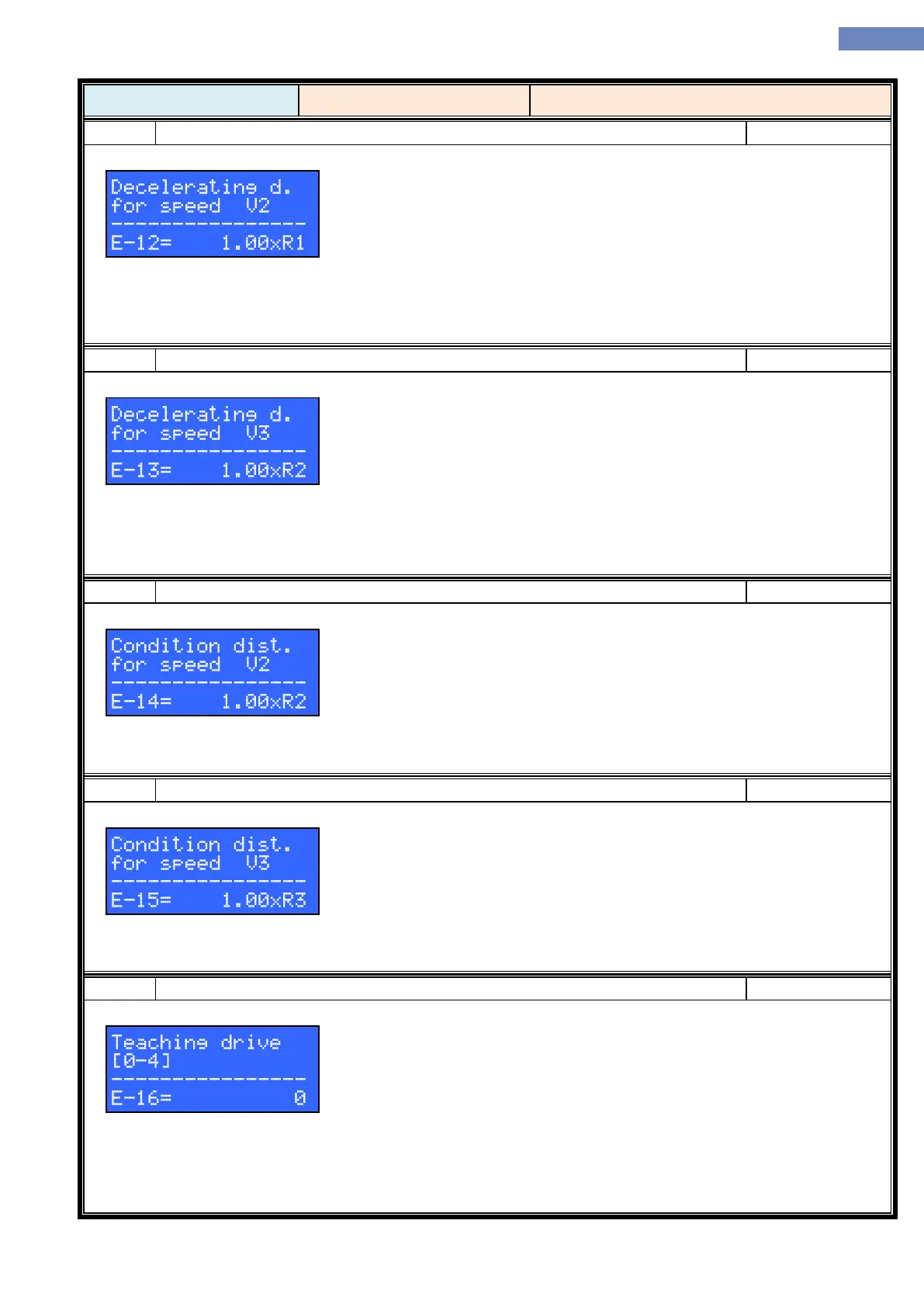

Decelerating distance for speed V2 [imp]
Parameter is used for positioning type 5. E-12 represent the decelerating zone
for V2. If there is an input for second referent switch FI-251 and FI-253 then the
zone is defined by the input. If the inputs are not defined then decelerating zone
can be calculated as multiplier of zone for V1
R1 – is deceleration distance for V1.
E-12 – represent R2 (deceleration distance for V2)
I.e. Decelerating zone for V1 is 1m (I.e 1000imp) where speed V1=1m/s.
If there is need to set aditional speed V2=1,6m/s with deceleration distance 2,5m E-12 will be set to E-12=2.5xR1.
Then deceleration zone for V2 is set to 2,5m (2500imp). Assumption is that 1mm=1imp Which can be diferent in
real situation.
Decelerating distance for speed V3 [imp]
Parameter is used for positioning type 5. E-13 represent the decelerating zone
for V3. Parameter is used to define deceleration distance for V3 as a multiplier
of zone for V2
R2 – is deceleration distance for V2 (parameter E-12).
E-13 – represent R3 (deceleration distance for V3)
I.e. Decelerating zone for V2 (E-12) is 2,5m (I.e 2500imp) where speed V2=1,6m/s.
If there is need to set aditional speed V3=2m/s with deceleration distance 5m E-13 will be set to
E-13=2.00xR2. Then deceleration zone for V3 is set to 5m (5000imp). Assumption is that 1mm=1imp Which can
be diferent in real situation.
Condition distance for V2 [imp]
Parameter is used to determine drive speed. When drive command is given
elevator will start with the speed V2 if condition E-14 is satisfied.
R2 – presents deceleration distance for V2 (parameter E-12).
I.e. We want to drive with the speed V2 (1,6m/s) if the driving distance is
more than 6m. E-12 is set to 2,5m (2500imp), than we must set the E-14 to
E-14=2.4xR2 which means 6m (6000imp).
If the drive distance is more than E-14 (6m) the elevator will drive with the speed V2 othervise it will start with
V1.
Uvjet za izbor vožnje brzinom V3 [imp]
Parameter is used to determine drive speed. When drive command is given
elevator will start with the speed V3 if condition E-15 is satisfied.
R3 – presents deceleration distance for V3 (parameter E-13).
I.e. We want to drive with the speed V3 (2,5m/s) if the driving distance is
more than 12m. E-13 is set to 5m (5000imp), than we must set the E-15 to
E-15=2.4xR3 which means 12m (12000imp).
If the drive distance is more than E-15 (12m) the elevator will drive with the
speed V3 othervise it will check conditions for speed V2 (parameter E-14)
Parameter is used to activate the learning travel when using positioning type
E-01= 4 ili 5.
When all Positioning elements are set and parameters E-12 to E-14, if
used, learning drive must be done.
To do a learning travel parameter E-16 must be set to „0“, after that
parameter change the value as follows:
0 – Learning drive command is given.
1 – Learning drive in progres.
2 – Calculating the results
3 – Learning travel done
4 – Not used
