7 - 4 MC9500-K Mobile Computer Integrator Guide

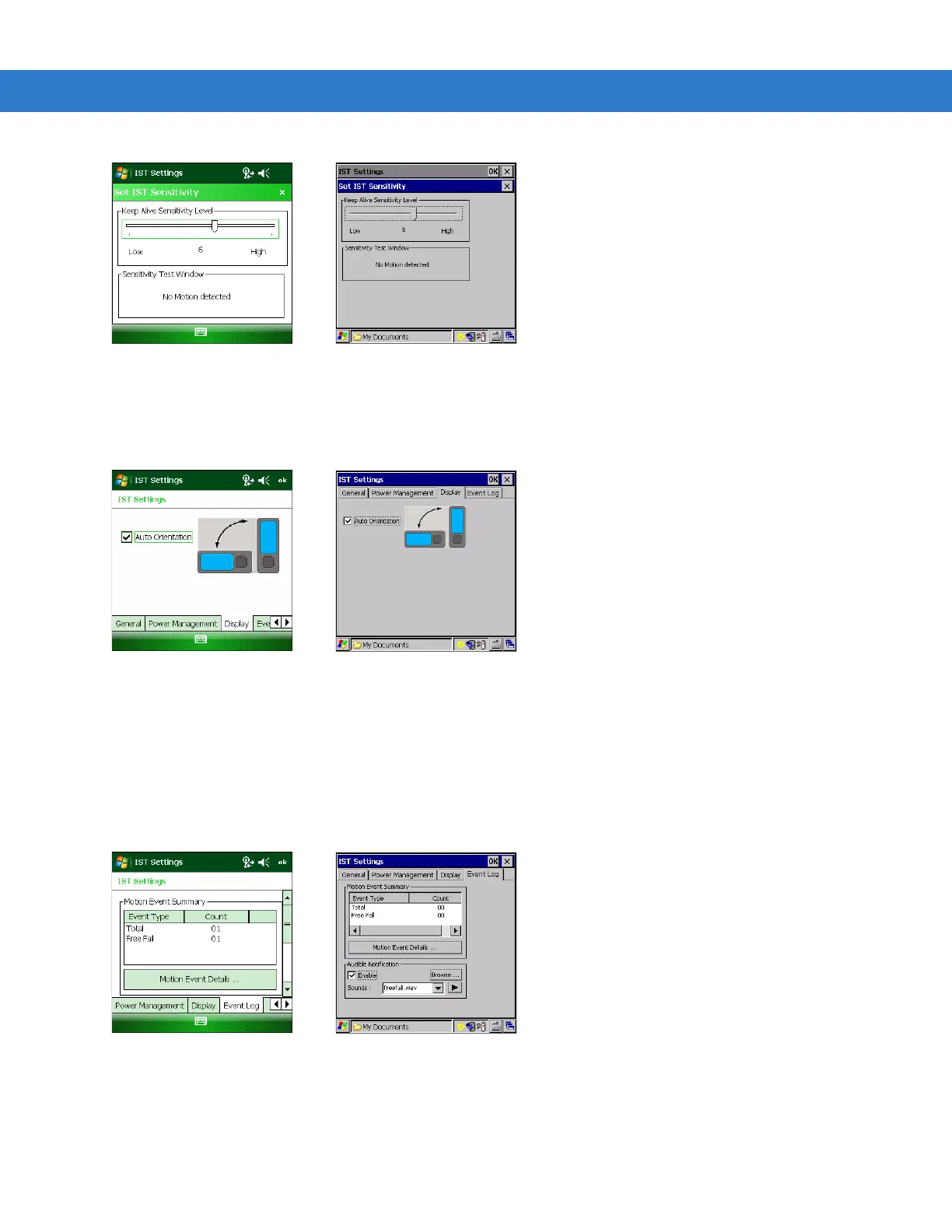

Figure 7-5
Set IST Sensitivity Window
Display Tab
Use the Display tab configure display interaction settings.
Figure 7-6
Display Tab
The Auto Orientation parameter controls the display rotation according to the MC31XX orientation. Select the Auto
Orientation checkbox to enable this feature. Auto orientation is disabled by default.
Event Log Tab
Use the Event Log tab to display the event details. This feature in IST mainly focuses on abuse by dropping the
device.
Figure 7-7
Event Log Tab
The Motion Event Summery list displays a summary of the event report. To view the full report tap the Motion
Event Details… button.
Use the Audible Notification panel to enable playing of a wave file when the MC31XX is dropped. Select a
desired .wav file from the Sounds: drop-down list.
