2 - 18 MC31XX Series Mobile Computer Integrator Guide

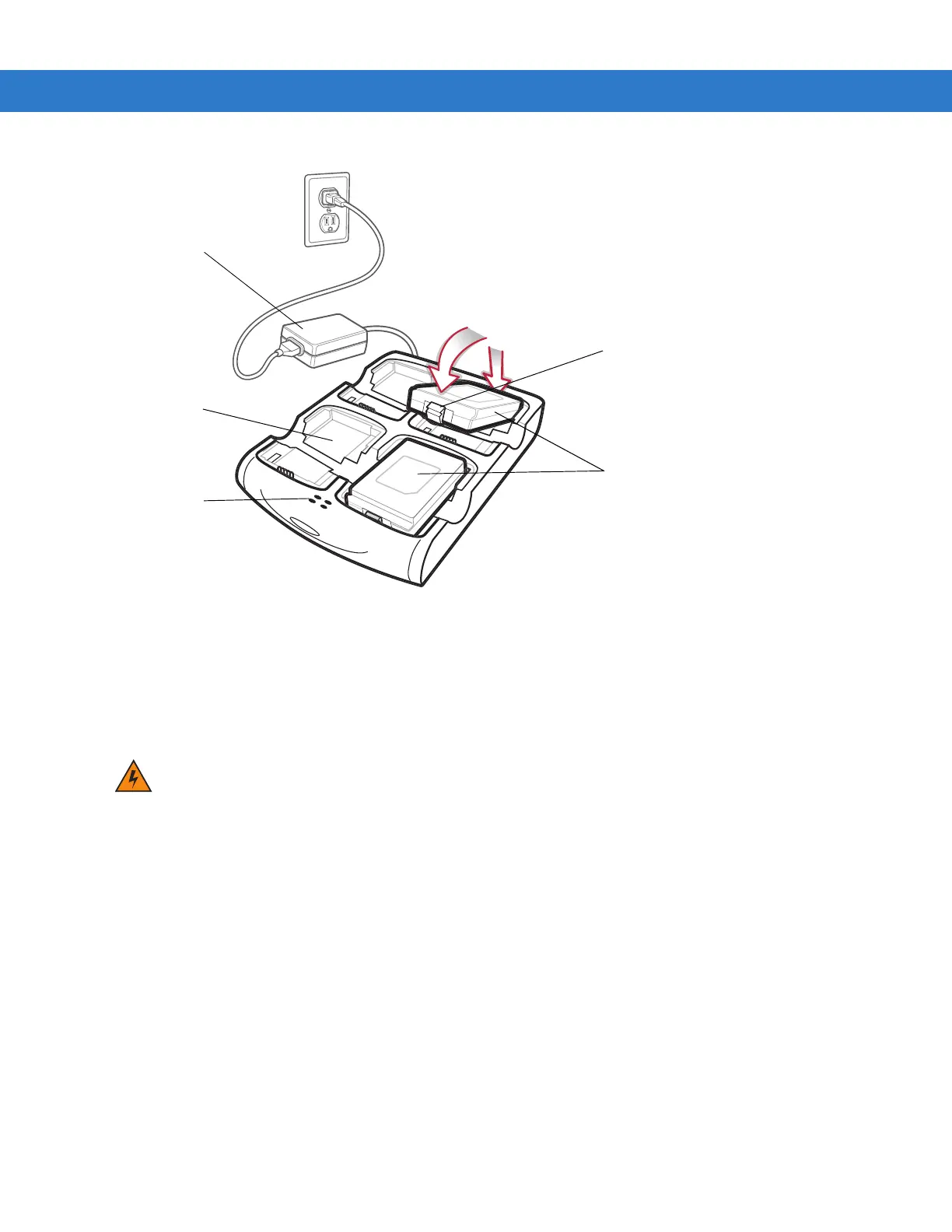

Figure 2-17
Four Slot Spare Battery Charger
3. Gently press down on the battery to ensure proper contact. The Standard Battery usually charges in less than
five hours and the Extended Life Battery usually charges in less than eight hours. See Table 2-2 on page 2-7
for charging status indications.
4. When charging is complete, press the battery clip and lift battery out of the slot.
LED Charge Indications
The Spare Battery Charging LEDs indicate the spare battery charging status. The Spare Battery Charging LEDs
are arranged in the same pattern as the spare battery charging slots so that the charging status of each battery can
be identified. See Table 2-2 on page 2-7 for charging status indications.
Power Supply
Spare
Batteries
Spare
Battery
Charging
Slot
Spare Battery
Charging
LEDs (4)
Battery
Clip
1
2
WARNING! Do not use a tool to remove the battery.
