1 - 18 MC31XX Series Mobile Computer Integrator Guide
Handstrap Removal and Replacement (MC31XXS/R)
To remove the handstrap:
1. Use a #00 Phillips screwdriver to remove the screws.
2. Lift the mounting clip.
3. Slide the mounting clip out of the strap loop.
4. Open the handstrap flap and pull the handstrap through the battery door mounting slot.

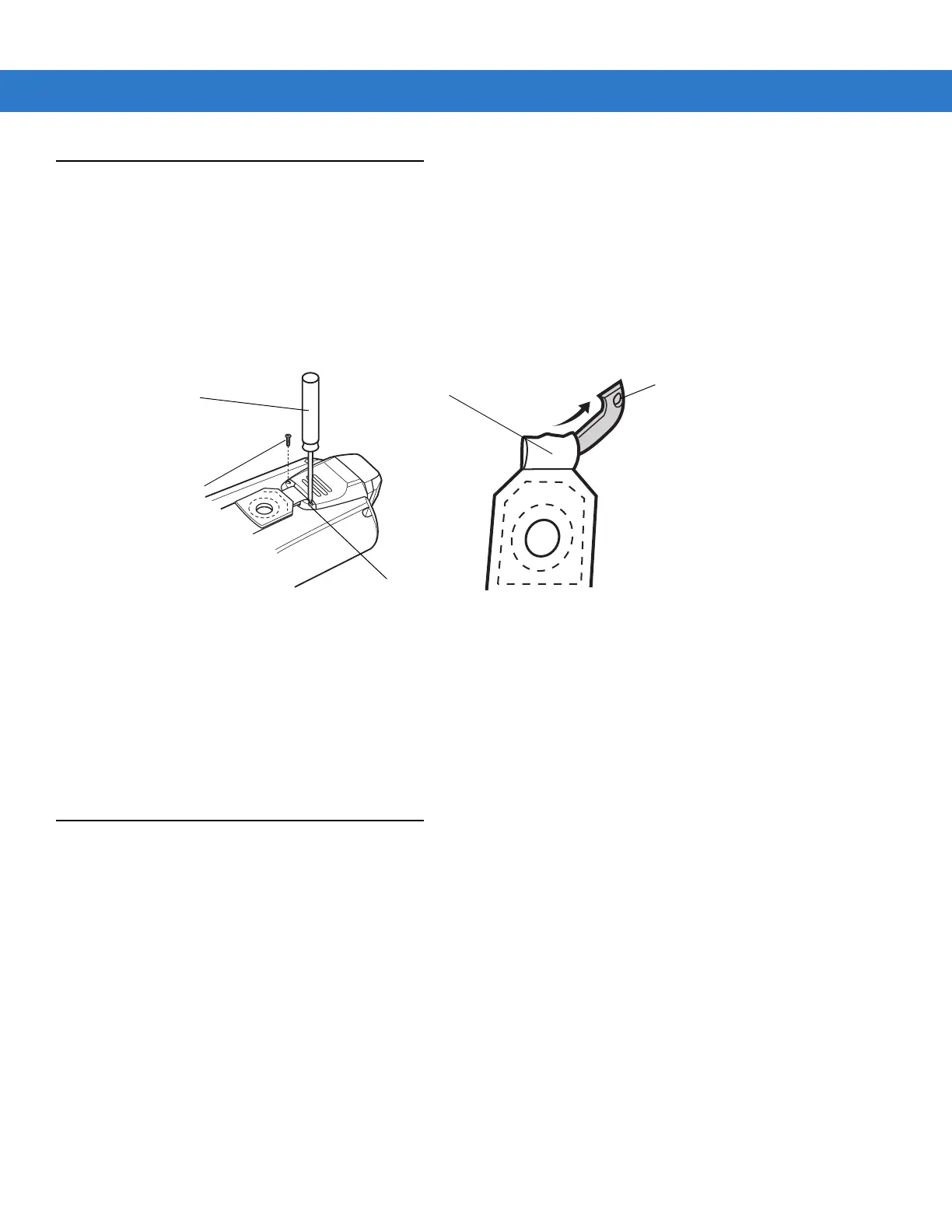

Figure 1-23
Strap/Door Removal and Replacement (MC31XXS/R)
To replace the handstrap:
1. Feed the mounting clip through the strap loop.
2. Secure the mounting clip to the housing using the two screws.
3. Feed the handstrap through the slot on the battery door.
4. Attach the hook material to the loop material and press together.
Handstrap Removal and Replacement (MC3190G)
To remove the handstrap:
1. Slip the button through the loop.
Screws
#00 Phillips
Screwdriver
Mounting
Clip
Strap Loop
Mounting
Clip
To Next Page
