2 - 6 MC31XX Series Mobile Computer Integrator Guide

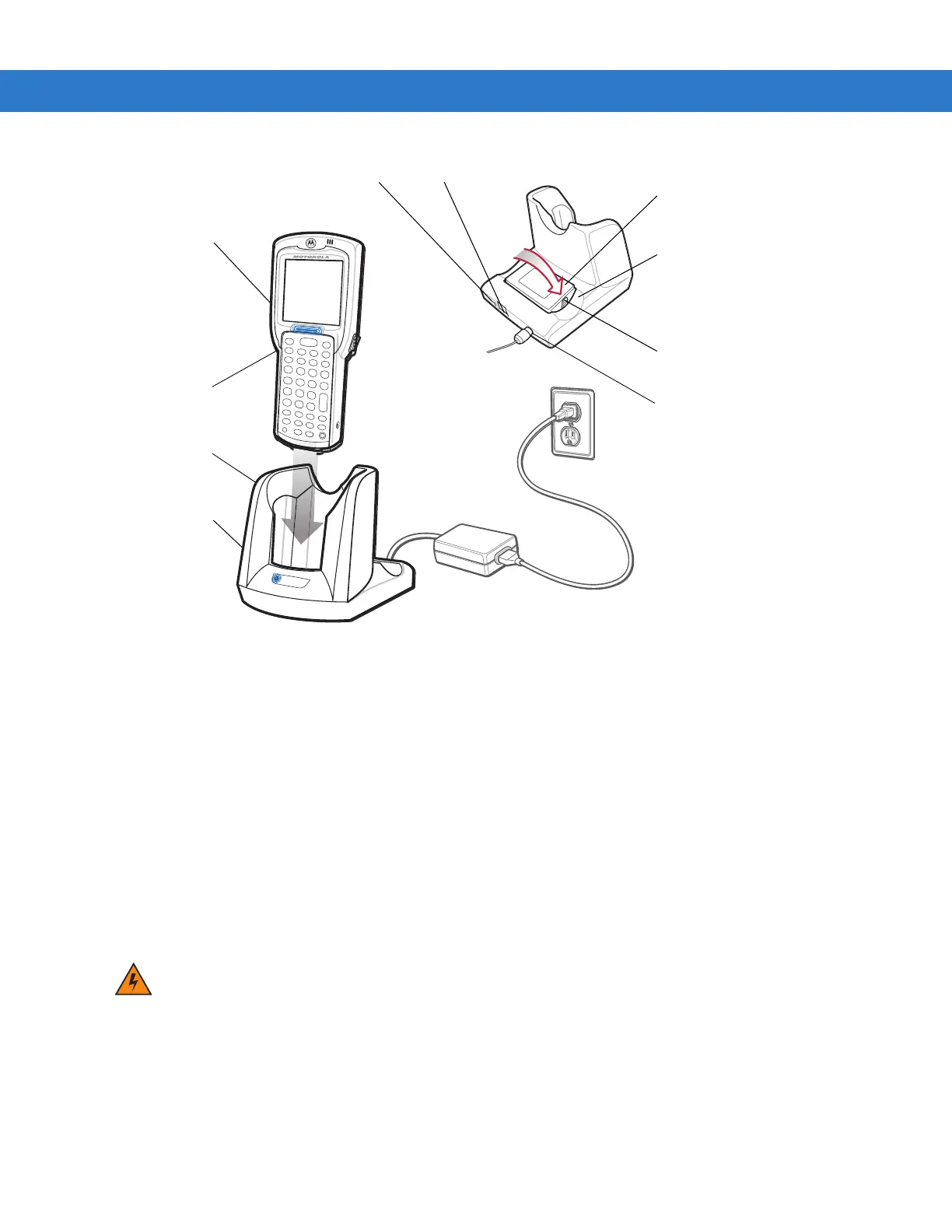

Figure 2-2 Single Slot Serial/USB Cradle
3. When charging is complete, remove the mobile computer from the mobile computer slot.
To charge a spare battery:
1. Connect the Single Slot Serial/USB cradle to a Motorola approved power source.
2. Insert the spare battery into the spare battery charging slot, bottom first, and pivot the top of the battery down
onto the contact pins.
3. Gently press down on the battery to ensure proper contact.
4. The cradle Spare Battery Charging LED indicates the spare battery charging status. The Standard Battery
usually charges in less than five hours and the Extended Life Battery usually charges in less than eight hours.
See Table 2-2 for charging status indications.
5. When charging is complete, press the battery clip and lift the battery out of the slot.
LED Charge Indications
The Single Slot Serial/USB cradle uses the amber Charge LED Indicator to indicate MC31XX battery charging
status and the Spare Battery Charging LED to indicate spare battery charging status. See Table 2-2 for charging
status indications.
Scan/Charge
Indicator
LED Bar
Mobile
Computer Slot
Spare
Battery
Spare Battery
Charging LED
Power Port
Serial Port
USB Port
Spare
Battery
Charging
Slot
Battery
Clip
Charge LED
Indicator
(amber)
WARNING! Do not use a tool to remove the battery.
