2 - 10 MC31XX Series Mobile Computer Integrator Guide
Four Slot Ethernet Cradle
This section describes how to set up and use a Four Slot Ethernet cradle with the mobile computer.
The Four Slot Ethernet cradle:
•
Provides 5.4 VDC power for operating the mobile computer.
•
Connects the mobile computer (up to four) to an Ethernet network.
You cannot ActiveSync using the Four Slot Ethernet cradle. To ActiveSync with a host computer, use the SIngle
Slot Serial/USB cradle.
Setup
Connect the Ethernet cradle (Ethernet port 1) to an Ethernet hub or a port on the host device. Connect the Ethernet
cradle (power port) to a Motorola approved power supply.

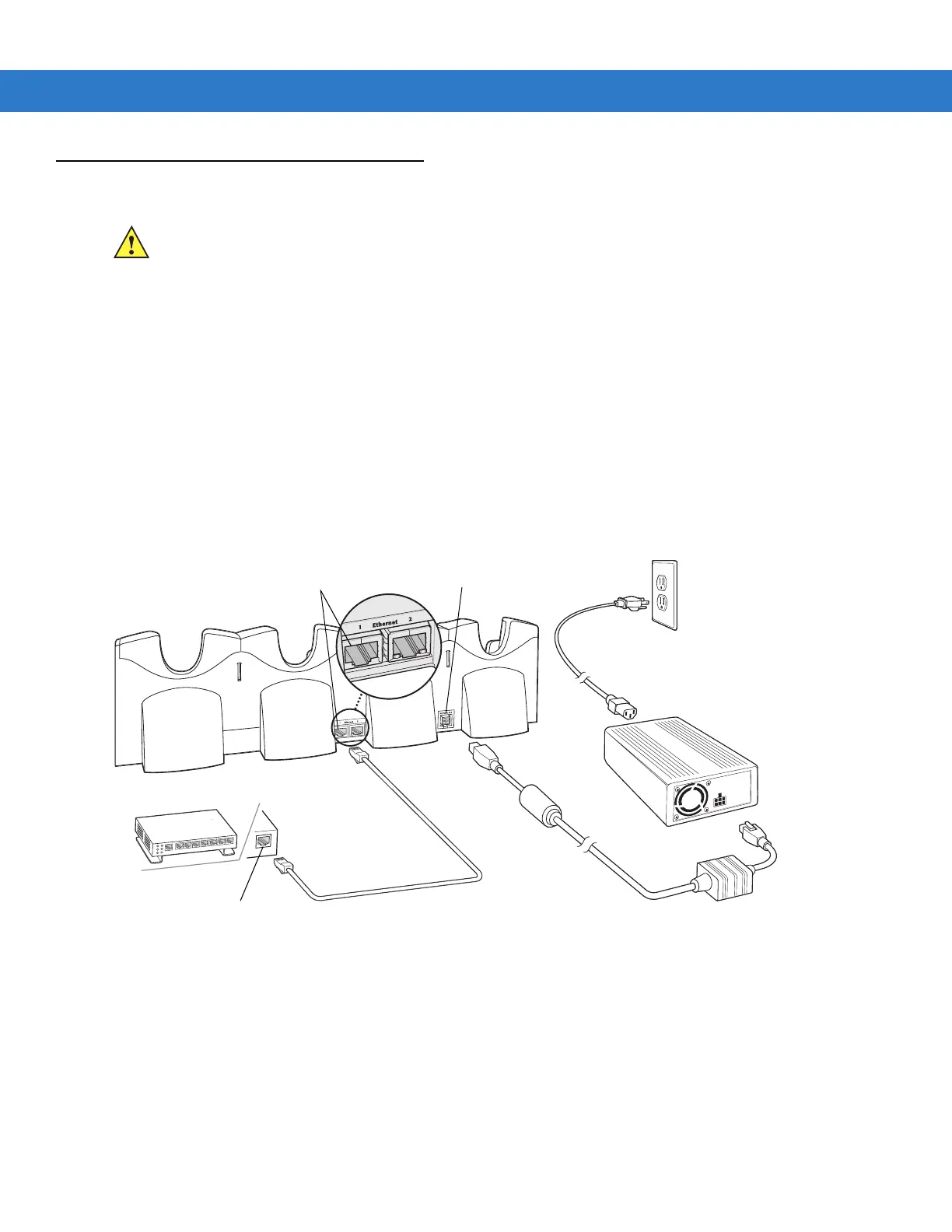

Figure 2-5
Four Slot Ethernet Cradle Connection
Ethernet Cradle Drivers (Windows CE 6.0)
The Ethernet cradle drivers are pre-installed on the MC31XX and initiate automatically when the MC31XX is
placed in a properly connected Four Slot Ethernet cradle.
When the mobile computer is inserted into the Four Slot Ethernet cradle, the LAN icon indicates that the mobile
computer is connected to a network.
Double-tap the LAN icon to open the LANNDS1 window. This window display the TCP/IP information for the
mobile computer.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 8-1.
Power Port
Ethernet Port 1
Ethernet Switch
Connection
