Accessories 2 - 9

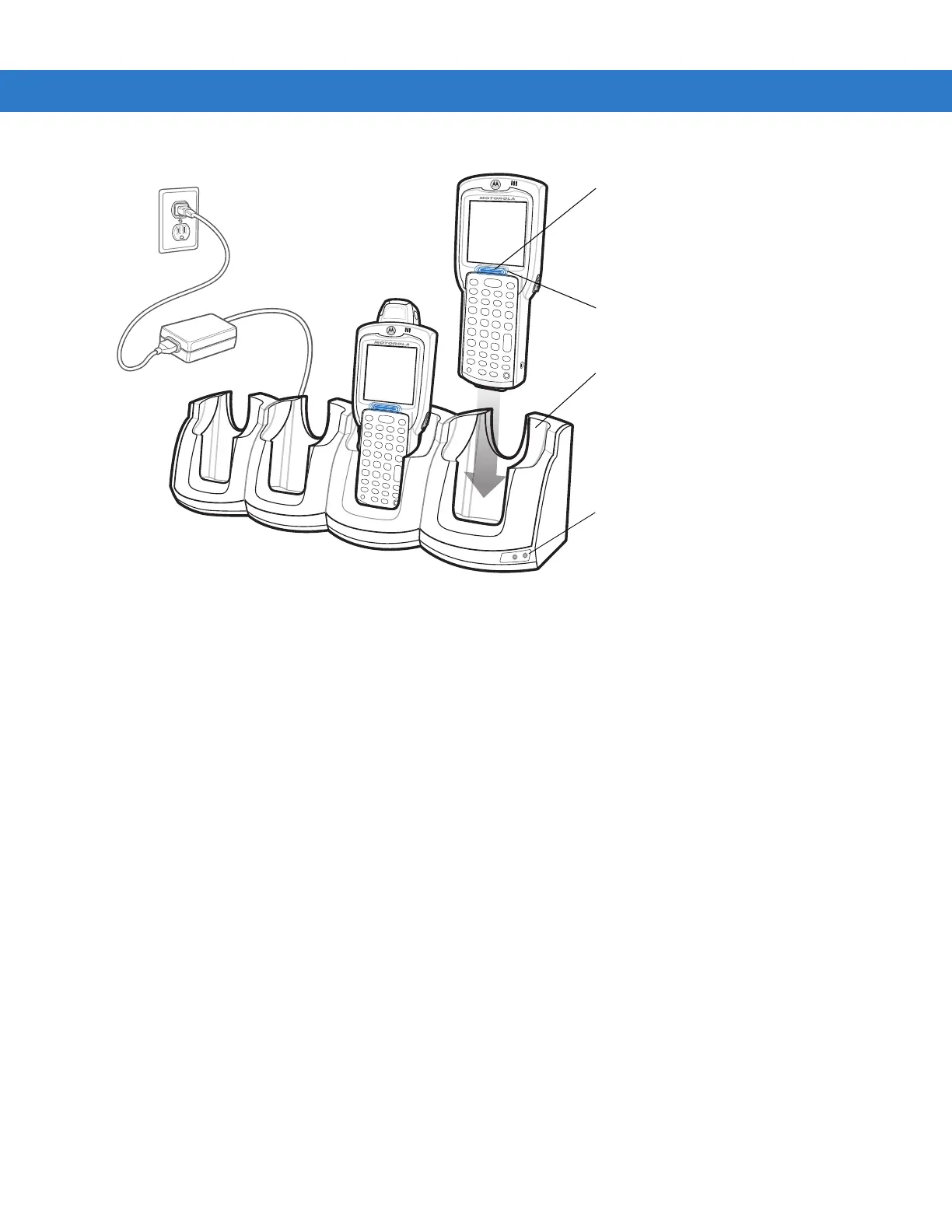

Figure 2-4
Four Slot Charge Only Cradle
3. The mobile computer amber Charge LED Indicator indicates the mobile computer battery charging status. The
Standard Battery usually charges in less than five hours and the Extended Life Battery usually charges in less
than eight hours. See Table 2-2 on page 2-7 for charging status indications.
4. When charging is complete, remove the mobile computer from the cradle.
Power LED
The green Power LED lights to indicate that the Four Slot Charge Only cradle is connected to a power source.
LED Charge Indications
The Four Slot Charge Only cradle uses the amber Charge LED Indicator to indicate battery charging status. See
Table 2-2 on page 2-7 for charging status indications.
Power LED
Scan/Charge
Indicator LED Bar
Mobile Computer
Slot
Charge LED
Indicator (amber)
