2 - 14 MC31XX Series Mobile Computer Integrator Guide
Wall Mount Bracket
Use the optional Wall Mount Bracket to mount a four slot cradle directly to a wall. To attach the Wall Mount Bracket:
1. Use the Wall Mount Bracket as a template and mark the locations of the four mounting screws.
2. Mount the fasteners to the wall. The screw heads should protrude about a half of an inch from the wall.
3. Slip the Wall Mount Bracket over the screw heads and slide the Wall Mount Bracket down over the screw
heads.
4. Tighten the screws to secure the Wall Mount Bracket to the wall.

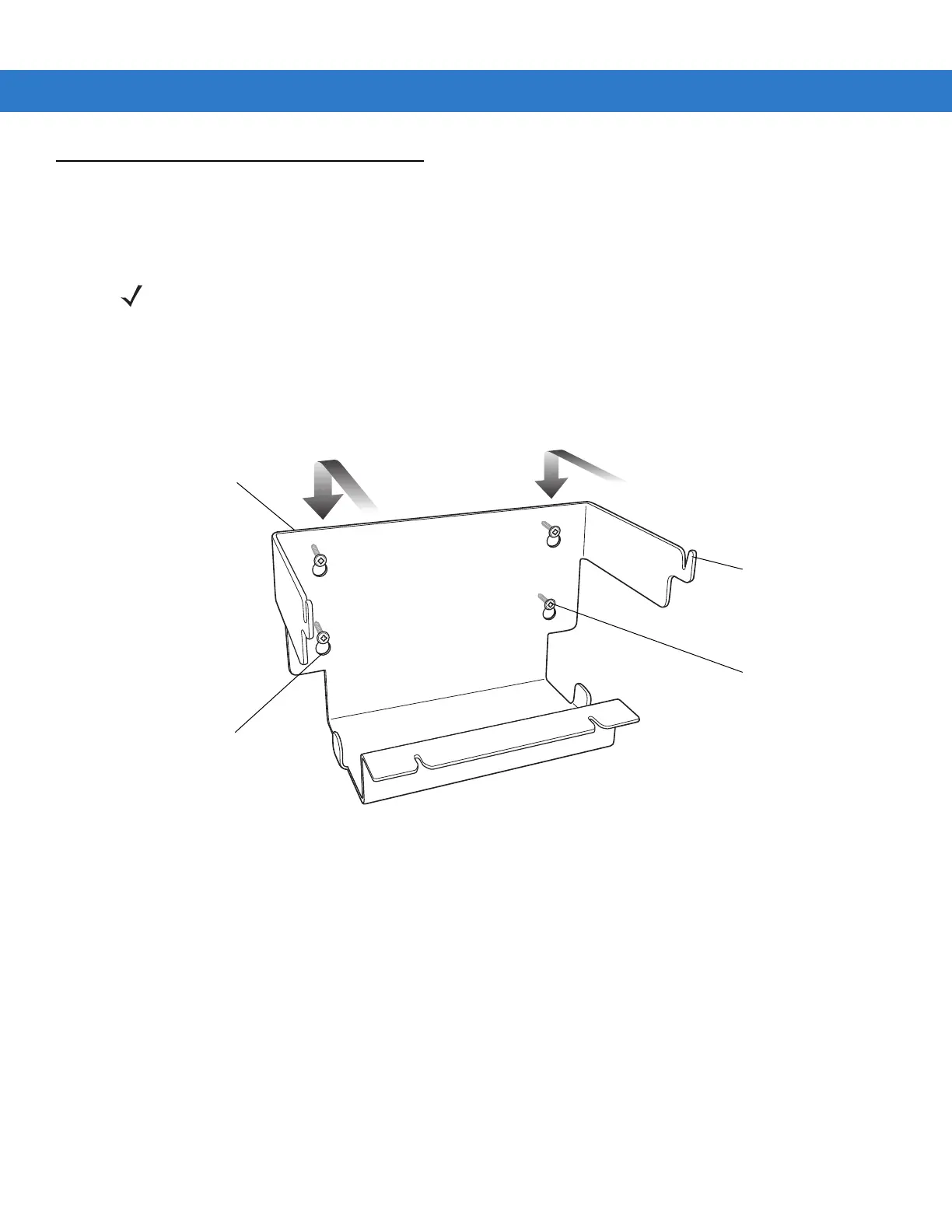

Figure 2-12 Wall Mount Bracket
To mount a four slot cradle:
1. Screw the supplied fasteners into the bottom of the four slot cradle. The screw heads should protrude about a
quarter of an inch from the cradle.
NOTE Use fasteners appropriate for the type of wall and the Wall Mount Bracket, mounting slots. The Wall Mount
Bracket, mounting slots are designed for a fastener with a #8 pan head.
Mounting Screws
(4)
Wall Mount Bracket
Mounting Tabs (2)
Mounting Slots
