Motorola MC31XX Series Integrator Guide

Accessories 2 - 15

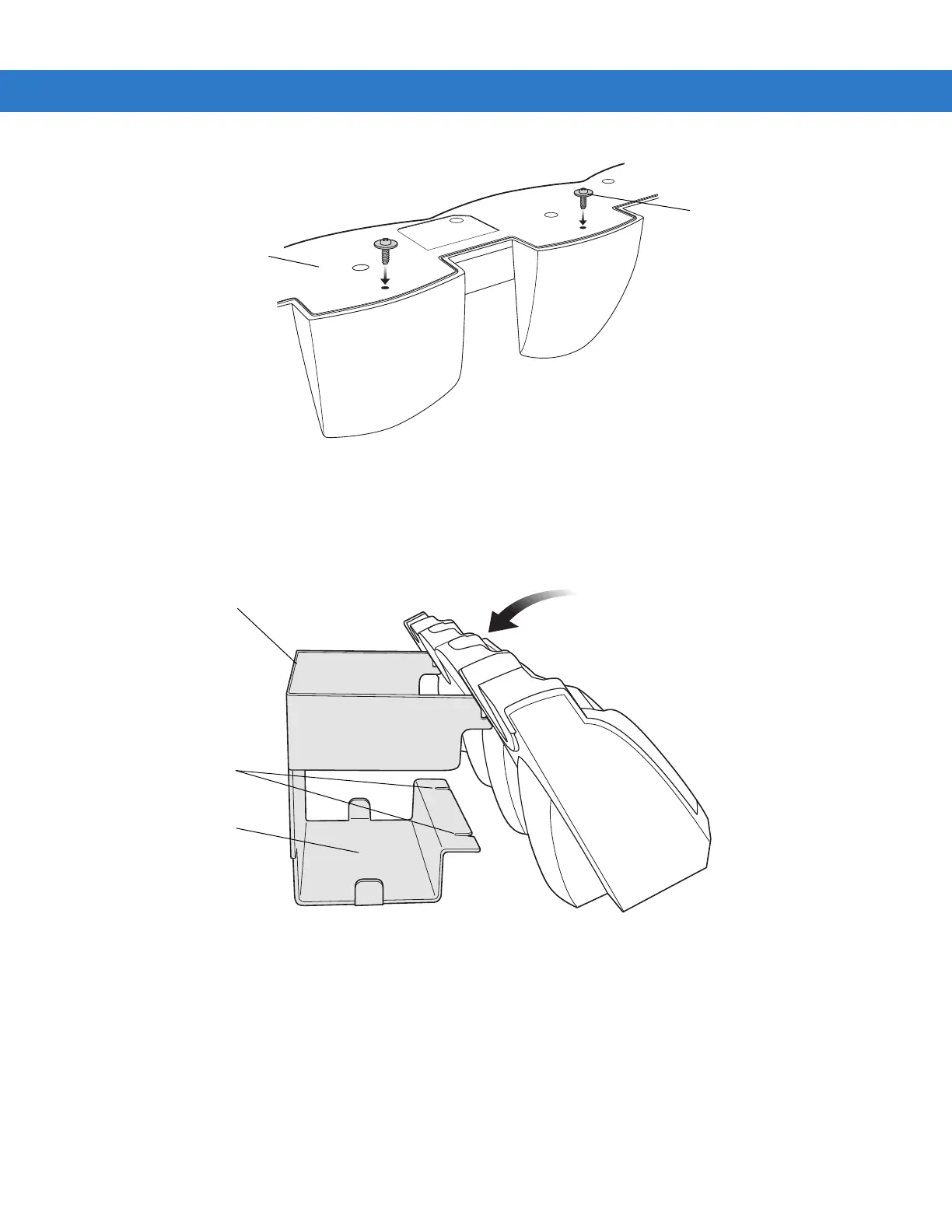

Figure 2-13 Cradle Mounting Screws
2. Align the Wall Mount Bracket mounting tabs with the mounting slots in the back of the four slot cradle. Slip the
two mounting tabs into mounting slots.
3. Swing the four slot cradle down onto the mounting bracket and align the mounting screws so that they fit into
the screw slots.
Figure 2-14 Wall Mount Bracket
4. Tighten the mounting screws to secure the four slot cradle to the Wall Mount Bracket.
Mounting Screws
(2)
Four Slot Cradle Bottom
Wall Mount Bracket
Screw Slots
Power Supply Well
