MR TAPCON 250 - Page 190

13 Technical data
Maschinenfabrik Reinhausen GmbH 2022190 8595028/00 ENTAPCON
®
250

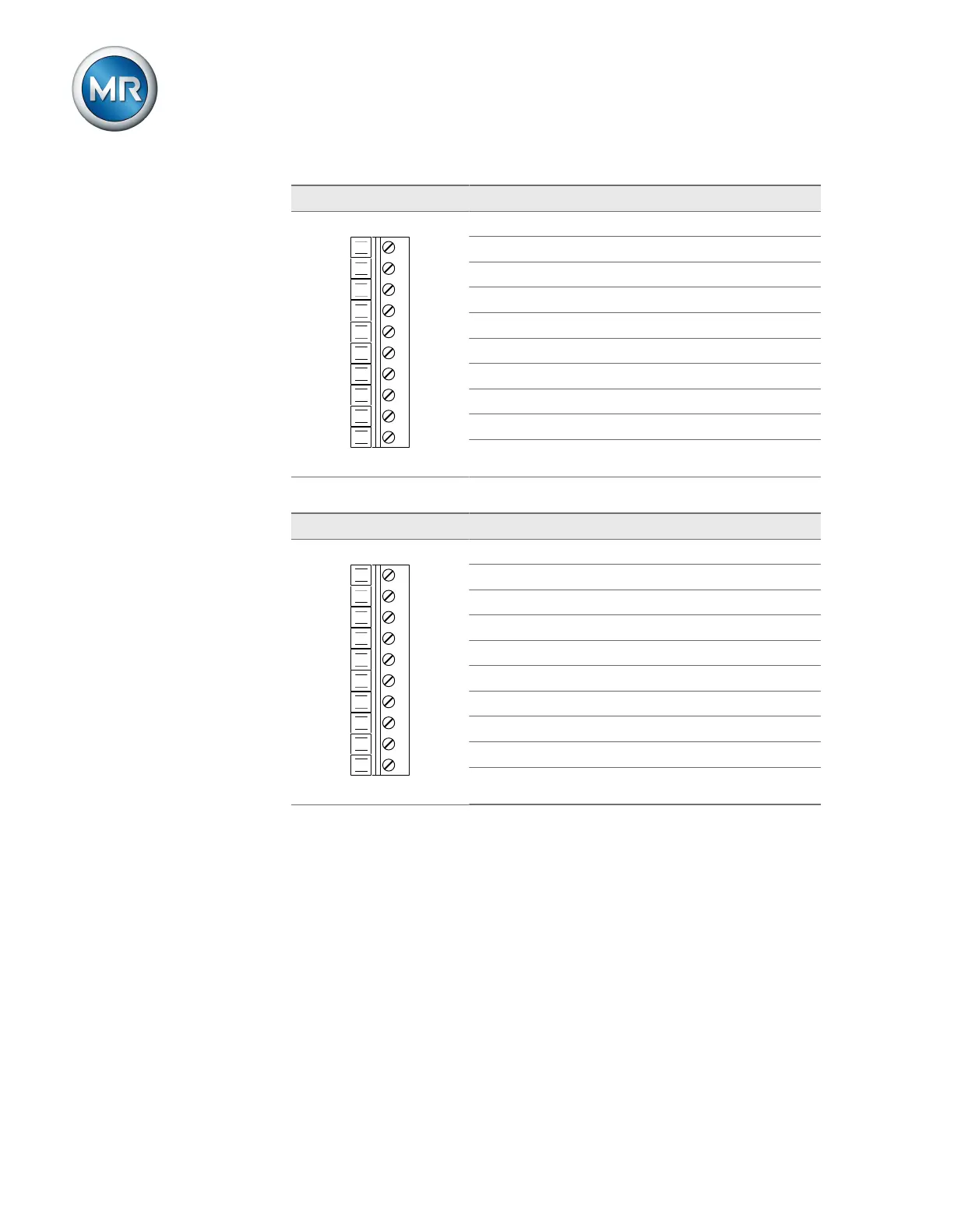

Interface Pin Description
1
2
3
4
5
6
7
8
9
10
10 Common reference (common)
9 Common reference (common)
8 Input 7
7 Input 6
6 Input 5
5 Input 4
4 Input 3
3 Input 2
2 Input 1
1 Input 0
Table74: ConnectorX1 (group 0)
Interface Pin Description
1
2
3
4
5
6
7
8
9
10
10 Common reference (common)
9 Common reference (common)
8 Input 17
7 Input 16
6 Input 15
5 Input 14
4 Input 13
3 Input 12
2 Input 11
1 Input 10
Table75: ConnectorX2 (group 1)
