13 Technical data
Maschinenfabrik Reinhausen GmbH 2022192 8595028/00 ENTAPCON
®
250

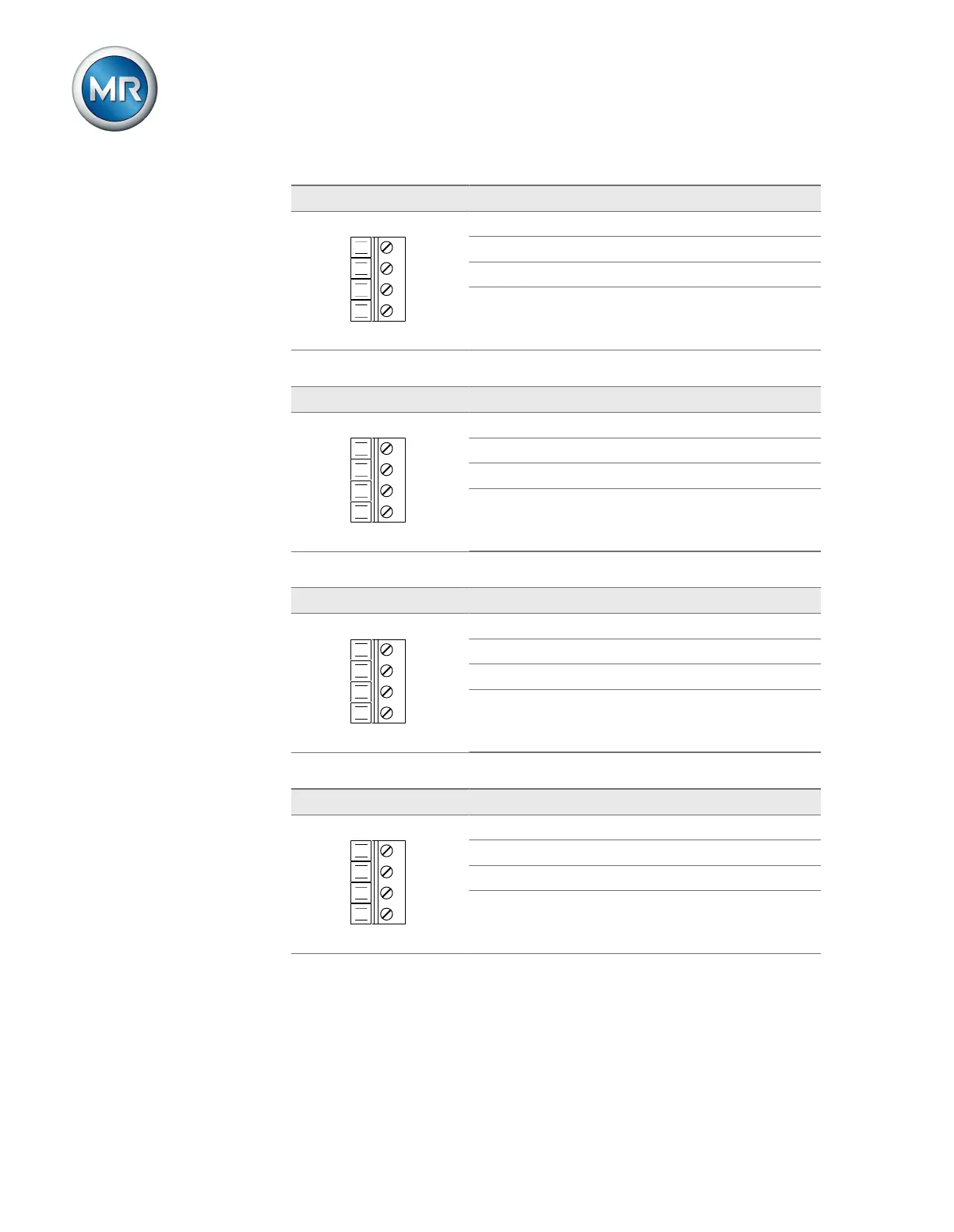

Interface Pin Description
1
2
3
4
4 Common reference (common) output 1
3 Common reference (common) output 0
2 Output1
1 Output 0
Table77: ConnectorX1 (group 0)
Interface Pin Description
1
2
3
4
4 Common reference (common) output 3
3 Common reference (common) output 2
2 Output 3
1 Output 2
Table78: ConnectorX2 (group 1)
Interface Pin Description
1
2
3
4
4 Common reference (common) output 5
3 Common reference (common) output 4
2 Output 5
1 Output 4
Table79: ConnectorX3 (group 2)
Interface Pin Description
1
2
3
4
4 Common reference (common) output 7
3 Common reference (common) output 6
2 Output 7
1 Output 6
Table80: ConnectorX4 (group 3)
