MR TAPCON 250 - Page 193

13 Technical data
Maschinenfabrik Reinhausen GmbH 2022 1938595028/00 EN TAPCON
®
250
13.2.9 Analog inputs AI 4
AI4
Inputs (electrically isolated) 4 x 1
Measuring range -20…+20mA, overcurrent approx. 20%
-10…+10V, overvoltage approx. 30%
Accuracy 0.15% at 25°C
Current
0.2% at 0…50°C
0.3% at -20…70°C
0.4% at -40…70°C
Voltage
0.4% at 0…50°C
0.5% at -20…70°C
0.6% at -40…70°C
Input impedance 52Ω at ±20mA
20.5kΩ at ±10V
Table81: AI4 assembly technical data

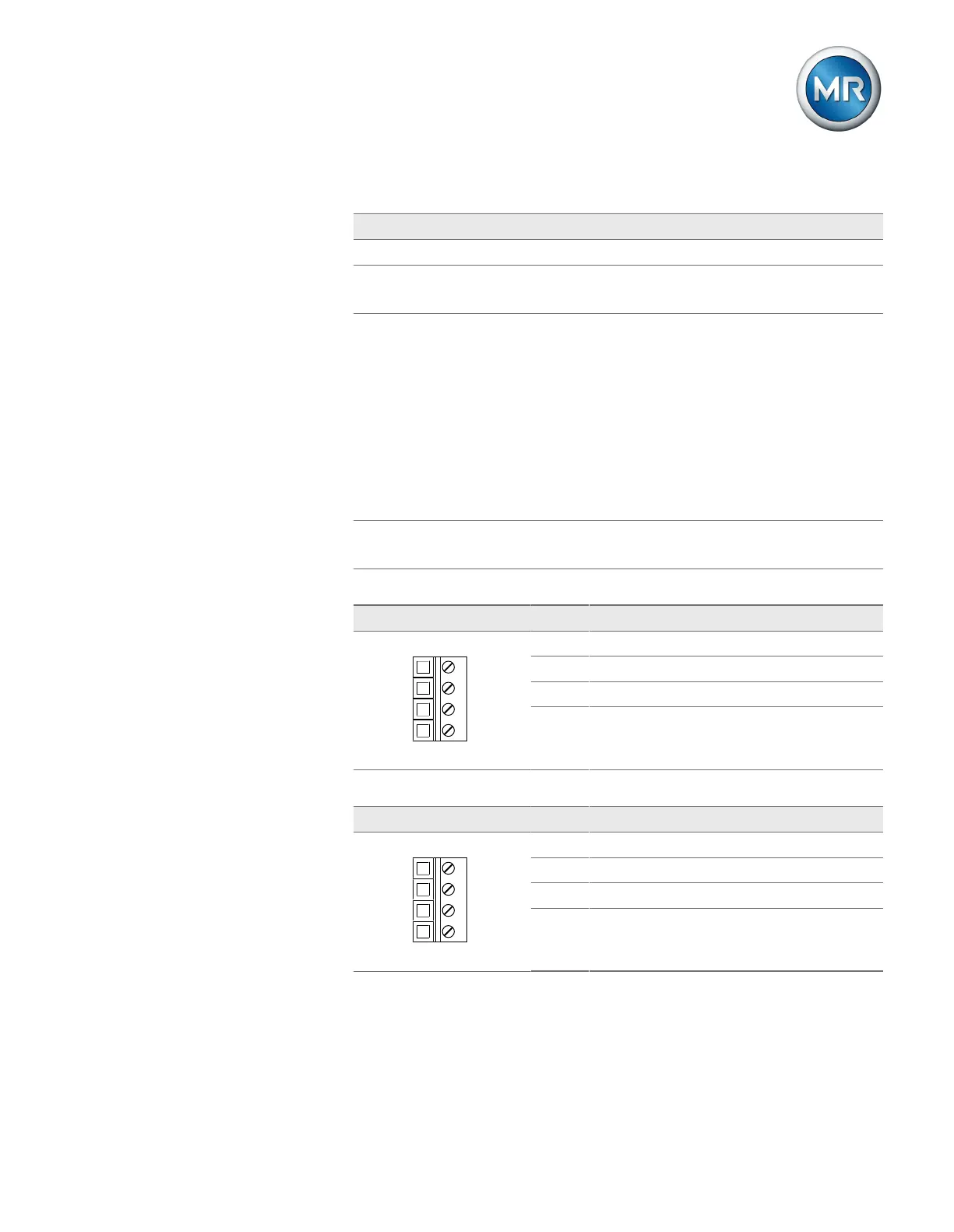

Interface Pin Description
1
2
3
4
4 V0U- voltage input
3 V0I- current input
2 V0 I+ current output
1 V0U+ voltage output
Table82: ConnectorX1 (group 0)
Interface Pin Description
1
2
3
4
4 V1U- voltage input
3 V1I- current input
2 V1 I+ current output
1 V1U+ voltage output
Table83: ConnectorX2 (group 1)
