4.4.3.1.7 Digital outputs DO 8

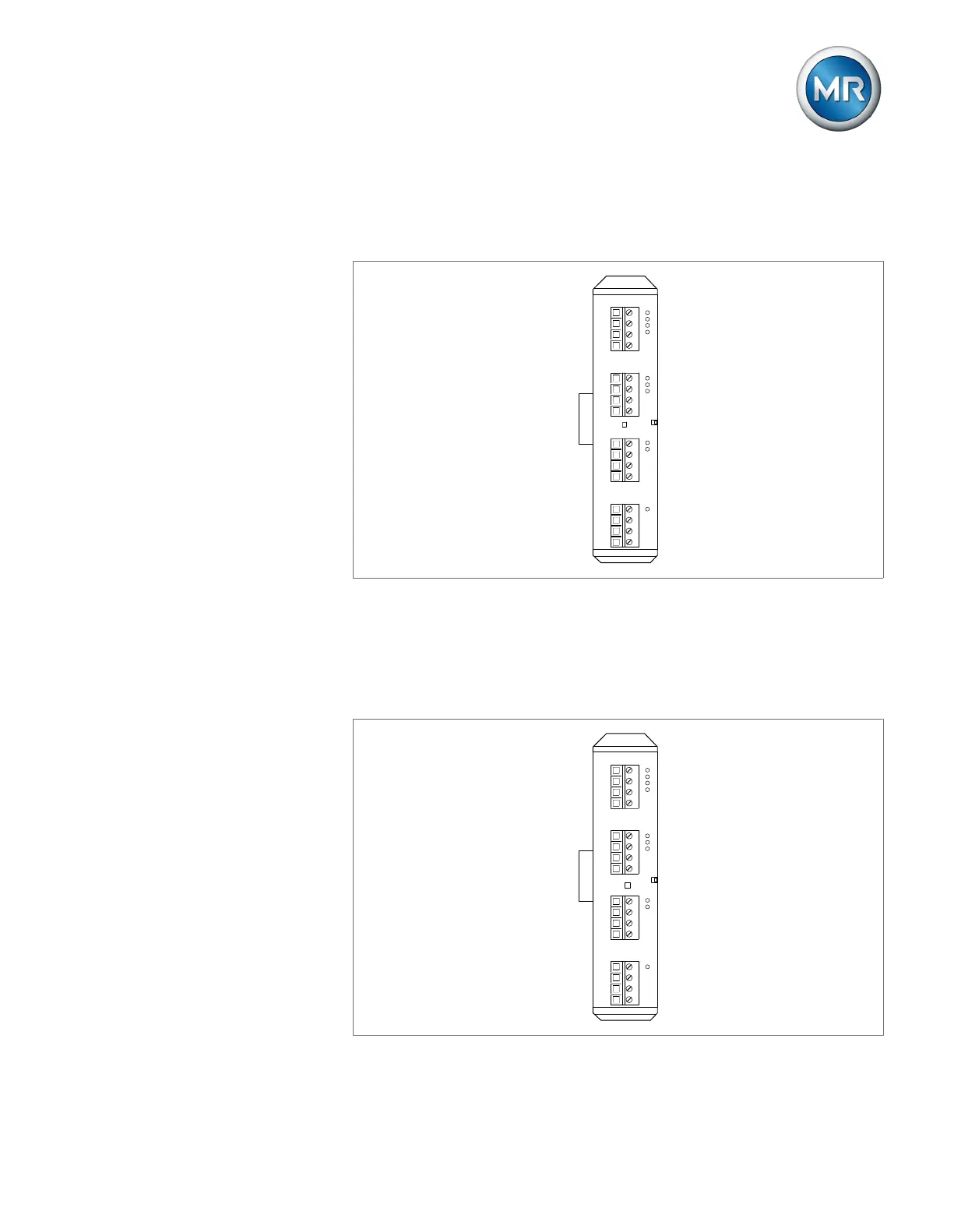

The DO8 assembly provides you with 8digital outputs (relays). The RY LED
signals that the assembly is ready for operation.
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
X1
X2
X3
X4
SICAM A8000
DI - 8212
RY
Figure15: DO8 assembly
4.4.3.1.8 Analog inputs AI 4
The AI4 assembly provides you with 4analog inputs for measuring the cur-
rent (-20...+20mA) or voltage (-10...+10V) of analog sensors. The RY LED
signals that the assembly is ready for operation.
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
X1
X2
X3
X4
SICAM A8000
AI - 8320
RY
Figure16: AI4 assembly
