Use and warning instructions in compliance with EC regulations - Page 39
A
5 7
1 3 2 6
4

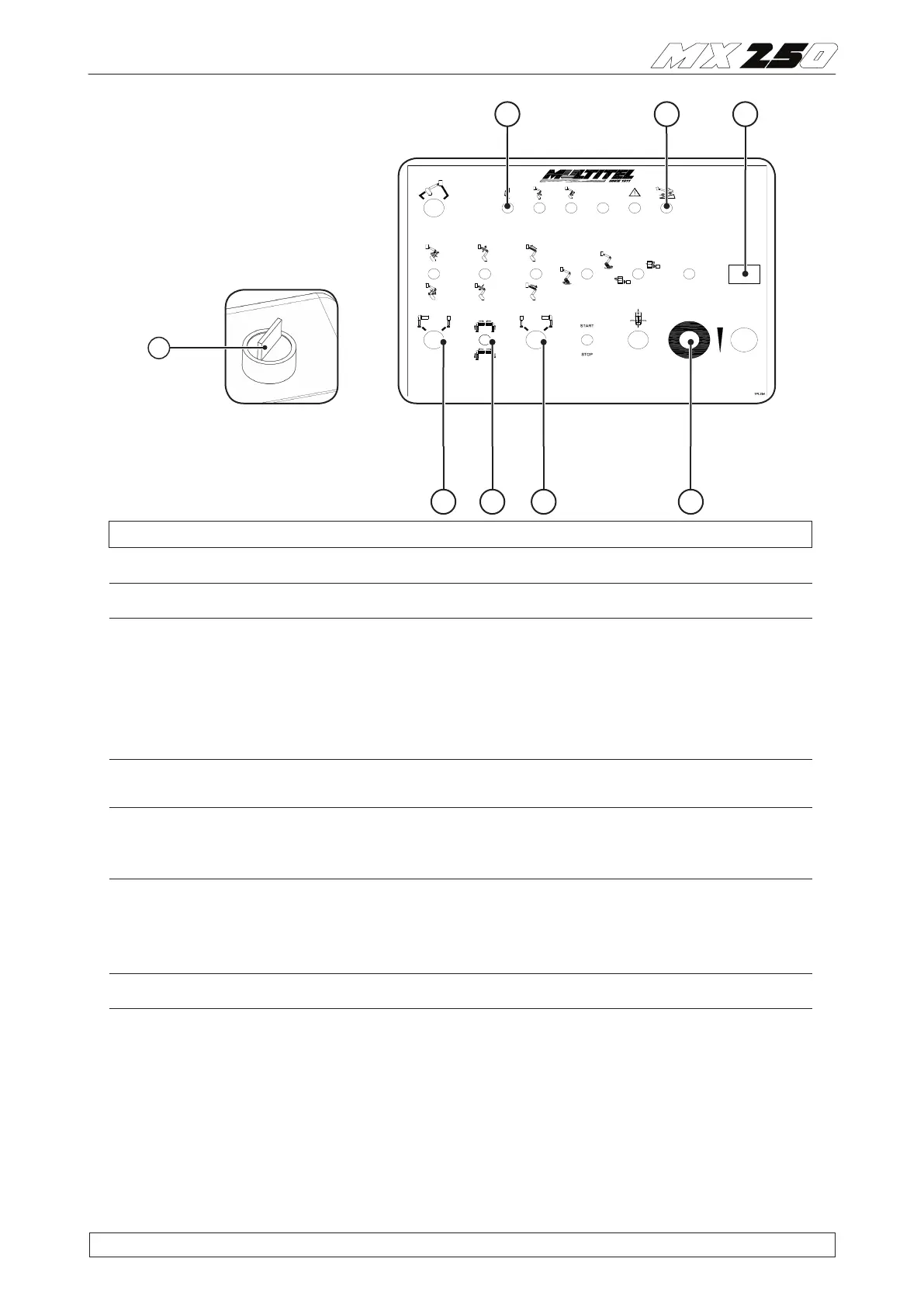

POS. DESCRIPTION
1
2-Position "A" green selector. Left side outrigger configuration selection.
2
2-Position "A" green selector. Right side outrigger configuration selection.
3
Outriggers simultaneous drive.
Pulling the lever downwards starts the automatic outrigging according to the position of the POS 1 and POS 2 selec-
tors. You need to hold the button down until the vehicle stops its upward movement and the green consent indicator
comes on.
Pushing the lever upwards closes the outriggers. The button must be kept pressed until complete retraction of the
crosspieces.
4
Green indicator. Authorisation indicator for outriggers resting on the ground.
When this indicator is on, it means that it is possible to manoeuvre the boom.
5
Red indicator. Cart maximum gradient reached indicator.
When the indicator is on, it means that the cart gradient is greater than the maximum allowed. To obtain consent to
the boom movement, repeat the outrigging procedure.
6
Red mushroom emergency pushbutton with mechanical latch.
Operating this pushbutton stops all movements and the vehicle engine (if applicable). The engine can only be
started back up again when the button is released.
AVOID USING THIS DEVICE JUST TO STOP THE ENGINE.
7
Hour meter
