Multitel MX 250 - Extensions Control; Automatic Outrigging (Optional)

Use and warning instructions in compliance with EC regulations - Page 38
3
2
4
1
IMPORTANT!
The corresponding numbers are indicated on the outrigger jacks.

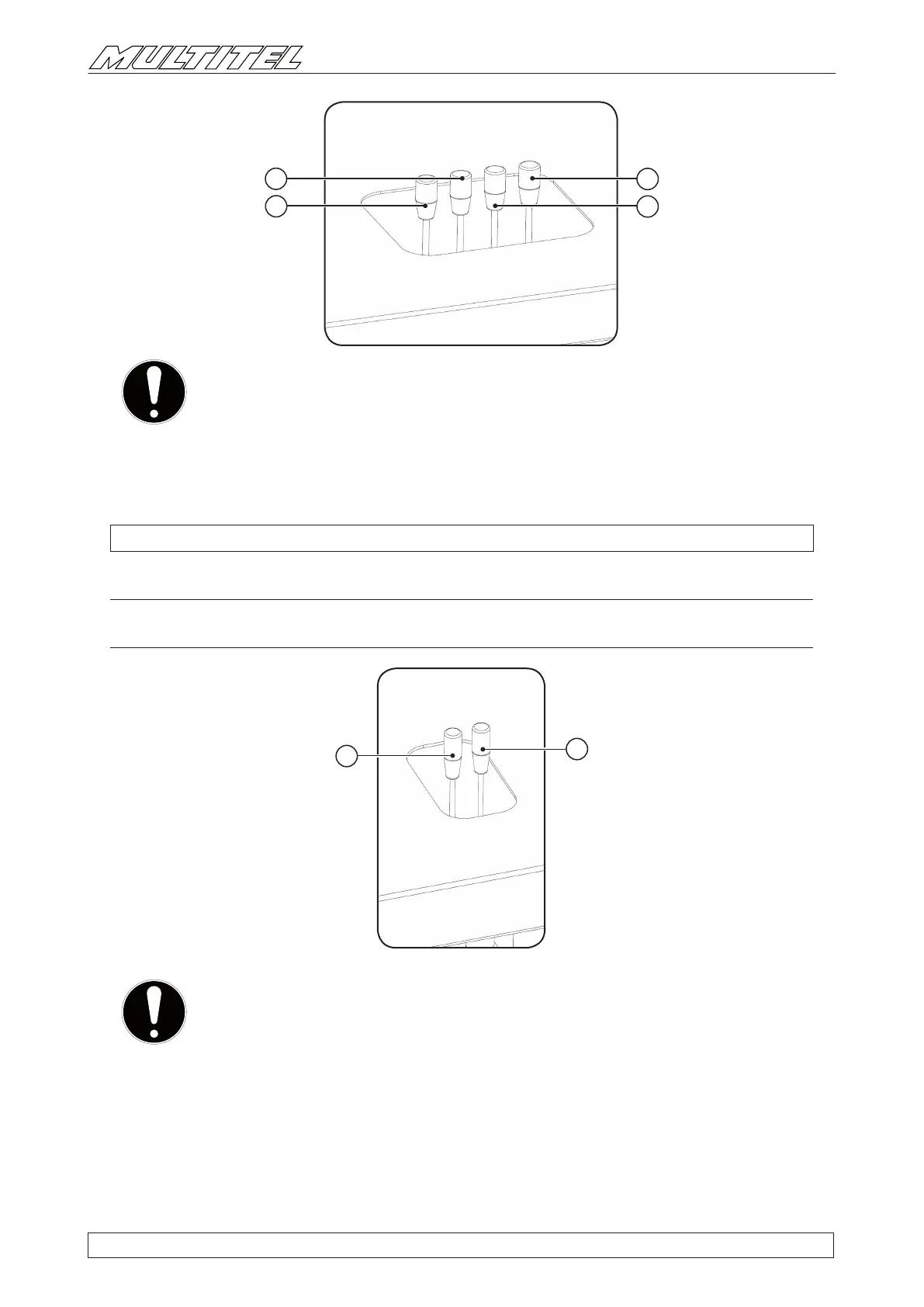

6.1.1. EXTENSIONS CONTROL
The outriggers are equipped with extendible crosspieces.
POS. OUTRIGGERS CONTROL DESCRIPTION
1
REAR LEFT
By pushing the lever the crosspiece retracts towards the platform, while by pulling
the lever the crosspiece comes out, stretching.
2
REAR RIGHT
By pushing the lever the crosspiece retracts towards the platform, while by pulling
the lever the crosspiece comes out, stretching.
1
3
IMPORTANT!
The corresponding numbers are indicated on the outrigger jacks.
6.1.2. AUTOMATIC OUTRIGGING (OPTIONAL)
The automatic outrigging device is optional and replaces the levers:
