NETGEAR GS752TP User Manual

Configuring Switching Information
86
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches

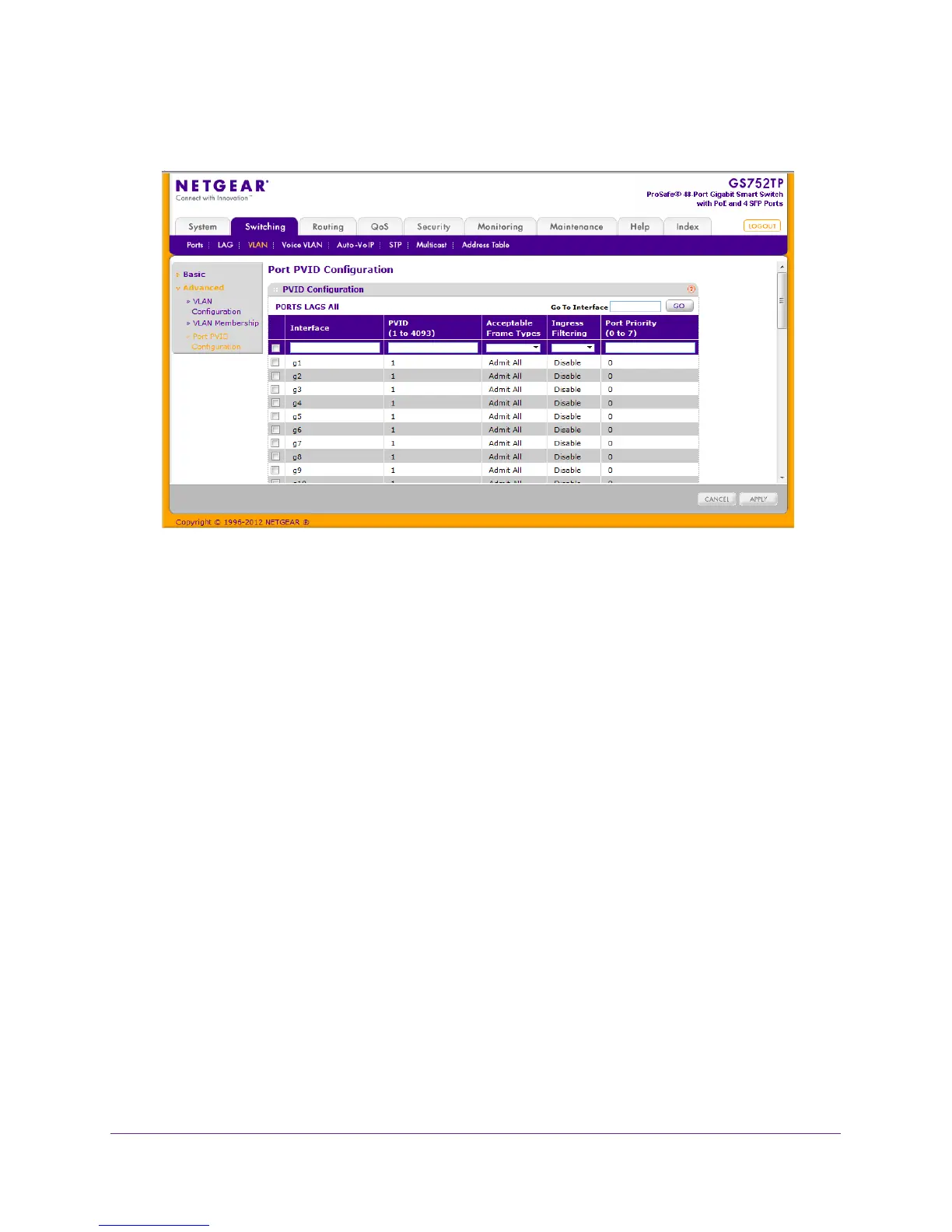

The following screen displays:
2. Select the check box next to the interfaces to configure.
You can select multiple interfaces to apply the same setting to the selected interfaces.
Select the check box in the heading row to apply the same settings to all interfaces.
• To configure PVID settings for a physical port, click PORTS.
• To configure PVID settings for a link aggregation group (LAG), click LAGS.
• To configure PVID settings for both physical ports and LAGs, click ALL
.
3. Configure the PVID to assign to untagged or priority tagged frames received on this port.
4. In the
Acceptable Frame
Types list, specify how you want the port to handle untagged and
priority tagged frames.
Whichever you select, VLAN tagged frames are forwarded in accordance with the IEEE
802.1Q VLAN standard. The factory default is Admit All.
• VLAN Only. The port discards any untagged or priority tagged frames it receives.
• Admit All. Untagged and priority tagged frames received on the port are accepted
and assigned the value of the Port VLAN ID for this port.
5. In the Ingress Filtering list, specify how you want the port to handle tagged frames.
You have the following options:
• Enable.
A tagged frame is discarded if this port is not a member of the VLAN
identified by the VLAN ID in the tag. In an untagged frame, the VLAN is the Port VLAN
ID specified for the port that received this frame.
• Disable. All frames are forwarded in accordance with the IEEE 802.1Q VLAN
standard. The factory default is Enable.

NETGEAR GS752TP Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Number of multicast groups filtered	1024
Fiber optic connector	SFP
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
10G support	-
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
MAC address table	8000 entries
Packet buffer memory	8 MB
Number of static routes	32
Supported network protocols	IPv4, IPv6, TFTP, SNTP, TACACS+
Power consumption (typical)	384 W
Safety	CE, CSA, UL
Product color	Gray
Electromagnetic compatibility	CE, FCC, Class A EN 55022, Class A C-Tick, EN 50082-1, EN 55024, CCC
Mean time between failures (MTBF)	220447 h
Heat dissipation	1750.70 BTU/h
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Total Power over Ethernet (PoE) budget	15.4 W
Power over Ethernet plus (PoE+) ports quantity	8
Cables included	AC

Weight and Dimensions

Depth	316 mm
Width	440 mm
Height	43 mm
Weight	5100 g
