Monitoring the System
216
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches
EAP Statistics
Use the EAP Statistics screen to display information about EAP packets received on a
specific port.
To display a EAP Statistic:
1. Select Monitoring
Ports EAP Statistics.

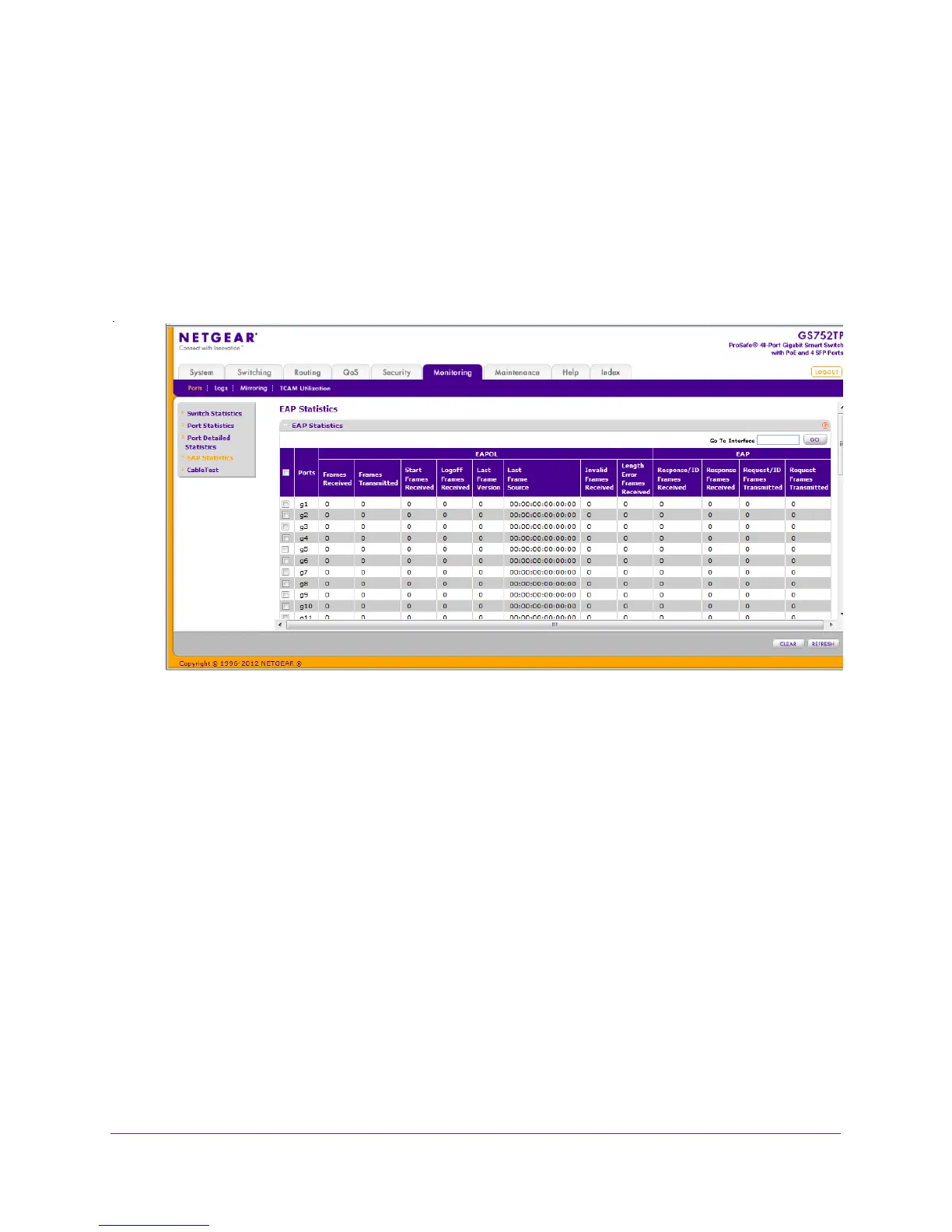

The following screen displays:
2. Select the interface for which data is to be displayed.
This can be done by either clicking the check box by the required port or by entering the
port name in the Go to Interface field and clicking Go.
The following table describes the EAPOL and EAP statistics displayed.
Frames Received. The number of valid EAPOL frames received on the port.
Frames Transmitted
.
The number of EAPOL frames transmitted through the port.
Start Frames Received. The number of EAPOL start frames received on the port.
Logoff Frames Received. The number of EAPOL log-off frames that have been
received on the port.
Last Frame Version.
The protocol version number attached to the most recently
received EAPOL frame.
Last Frame Source. The source MAC Address attached to the most recently
received EAPOL frame.
Invalid Frames Received
. The number of unrecognized EAPOL frames received on
this port.
