Configure Quality of Service
156
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches

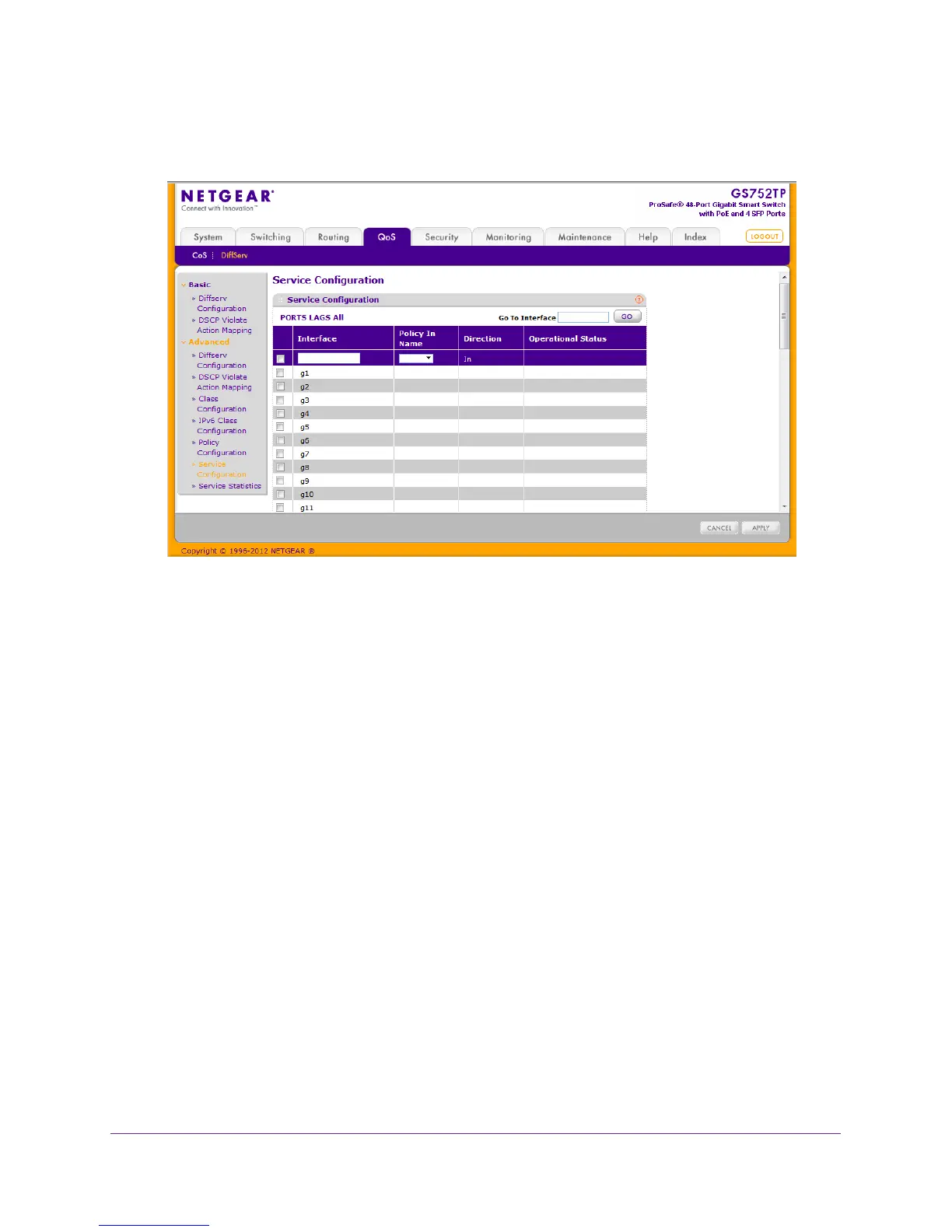

The following screen displays:
2. To configure DiffServ policy settings for a physical port, link aggregation group (LAG) or
both, click PORTS, LAGS or ALL, respectively.
3. Select the check box next to the port or LAG to configure.
You can select multiple ports and LAGs to apply the same setting to the selected
interfaces. Select the check box in the heading row to apply the same settings to all
interfaces.
4. Select a previously defined policy or None from the Policy In list and click APPLY.
None removes all policies from the interfaces.
Service Statistics
Use the Service Statistics screen to display service-level statistical information about all
interfaces that have DiffServ policies attached.
To display and refresh service-level statistical information:
1. Select QoS
DiffServ Advanced Service Statistics.
