NETGEAR GS752TP User Manual

Configure Quality of Service
146
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches
 To view DiffServ general status group information:
Select QoS
 DiffServ  Advanced  Diffserv Configuration.

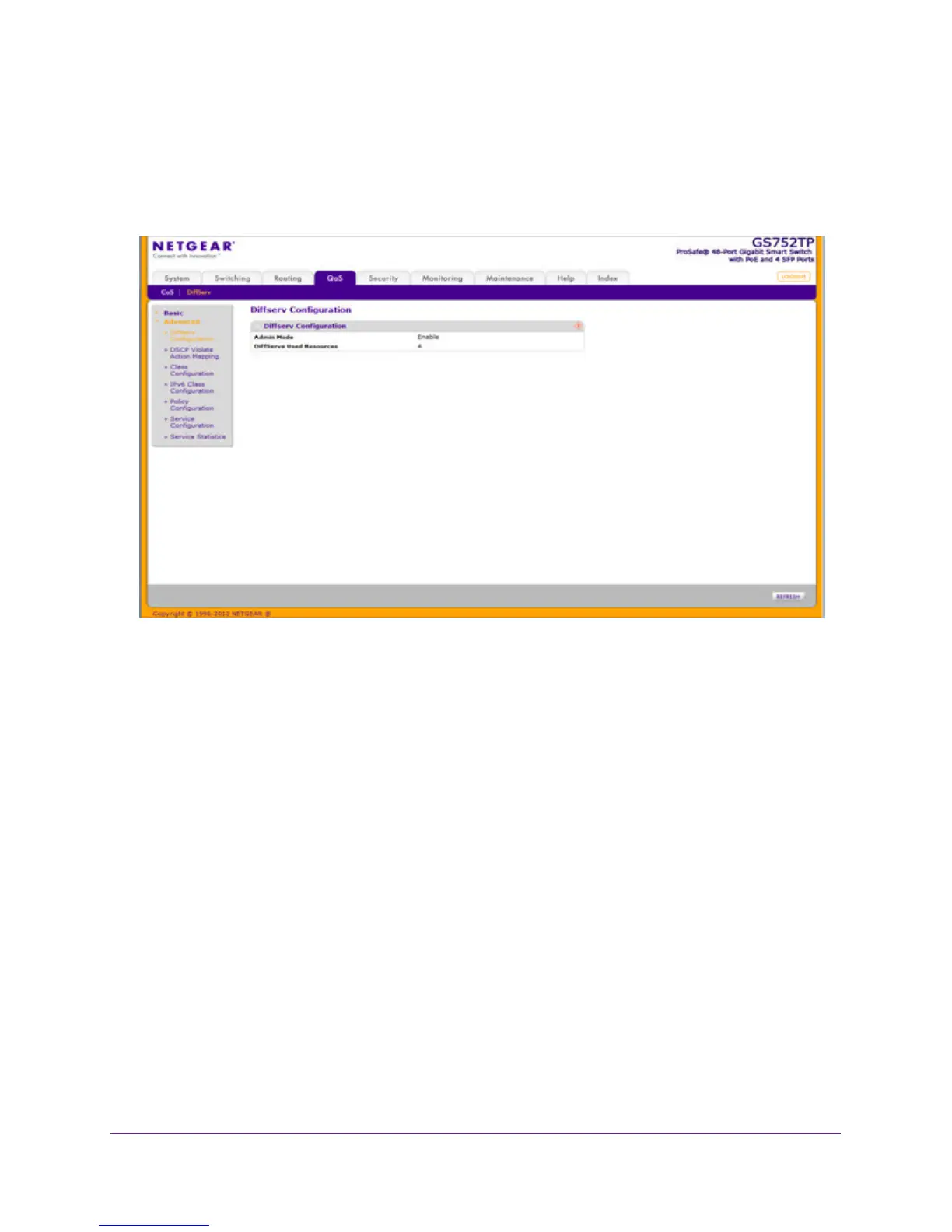

The following screen displays:
The following information is displayed:
• The Admin Mode for DiffServ is always Enabled.
• The DiffServ Used Resources field displays the number of entries used by DiffServ.
DSCP Violate Action Mapping
When a policer is assigned to a class map (flows), use the DSCP Violate Action Mapping
screen to specify the action to take when the amount of traffic in the flows exceeds the
QoS-specified limits. The portion of the traffic that causes the flow to exceed its QoS limit is
referred to as violate action packets.
When this action occurs, the switch remaps the original DSCP value of the violate action IP
packets with a new value based on the DSCP Violate Action Mapping table.
The switch uses
the new values to assign resources and the egress queues to these packets. The switch also
physically replaces the original DSCP value in the violate action packets with the new DSCP
value.
This feature changes (remarks) the DSCP tags for incoming traffic switched between trusted
QoS domains.
For example, assume that there are three levels of service—A, B, and C— and the DSCP
incoming values used to mark these levels are 10, 20, and 30 respectively. If this traffic is
forwarded to another service provider that has the same three levels of service, but uses
