NETGEAR GS752TP User Manual

Configuring Switching Information
75
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches
• Enable. The switch sends pause packets if the port buffers become full.
• Disable. The switch does not send pause packets if the port buffers become full.
3. View the Jumbo Frames Status.
4. In the Jumbo Frames After Reset list, select
Enable
or Disable.
Jumbo frames support takes effect only after it is enabled, and after the switch is
rebooted. The Jumbo Frames Status field displays the status of this feature.
5. Click APPLY to apply the changes to the system.
Port Configuration
Use the Port Configuration screen to configure the physical interfaces on the switch.
 To configure port settings:
1. Select Switching
 Ports  Port Configuration.

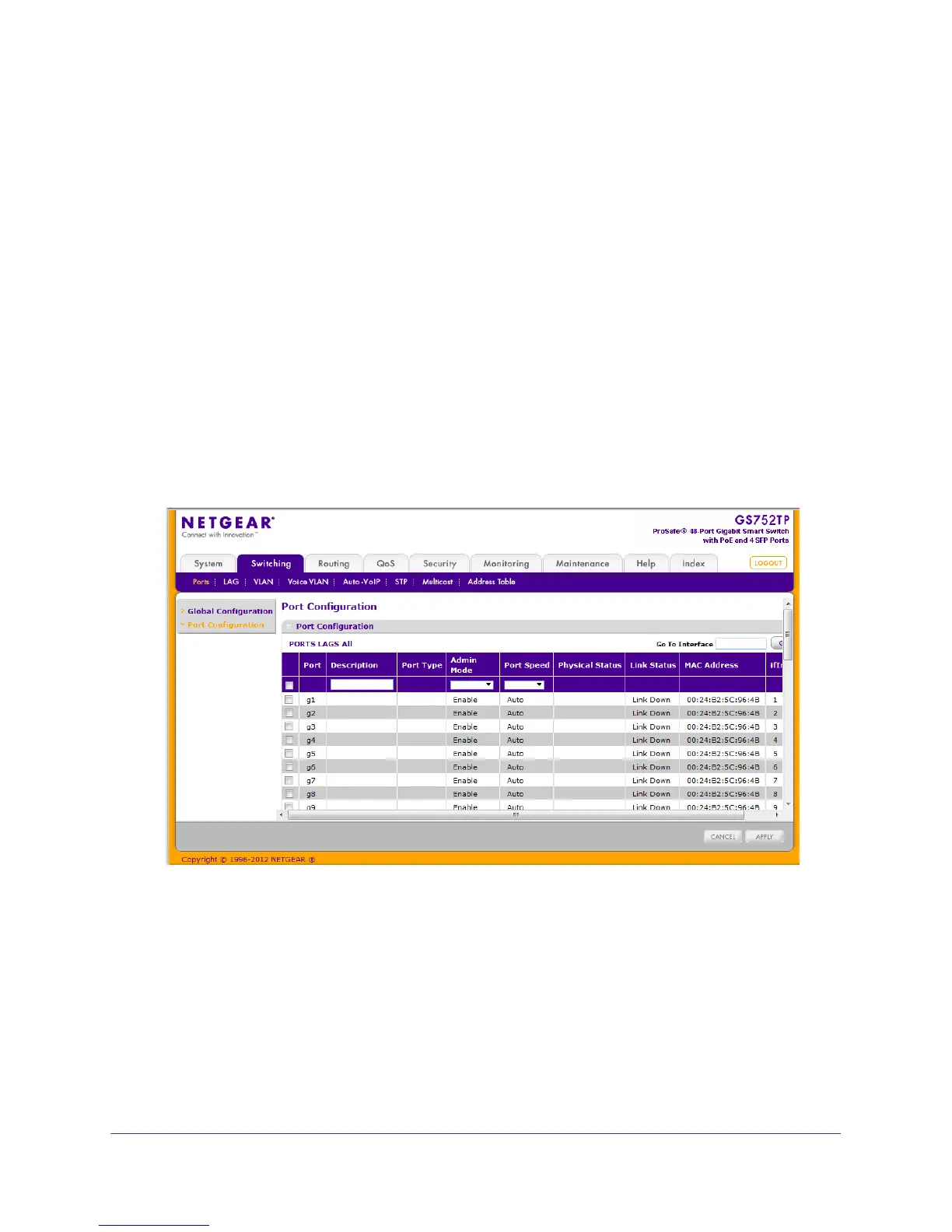

The following screen displays:
2. Select the interface for which you want to configure settings.
• To configure settings for a physical port, click PORTS.
• To configure settings for a link aggregation group (LAG), click LAGS.
• To configure settings for both physical ports and LAGs, click All.
3. Select the check box next to the port or LAG to configure.
Y
ou can select multiple ports and LAGs to apply the same setting to the selected
interfaces. Select the check box in the heading row to apply the same settings to all
interfaces.

NETGEAR GS752TP Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Number of multicast groups filtered	1024
Fiber optic connector	SFP
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
10G support	-
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
MAC address table	8000 entries
Packet buffer memory	8 MB
Number of static routes	32
Supported network protocols	IPv4, IPv6, TFTP, SNTP, TACACS+
Power consumption (typical)	384 W
Safety	CE, CSA, UL
Product color	Gray
Electromagnetic compatibility	CE, FCC, Class A EN 55022, Class A C-Tick, EN 50082-1, EN 55024, CCC
Mean time between failures (MTBF)	220447 h
Heat dissipation	1750.70 BTU/h
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Total Power over Ethernet (PoE) budget	15.4 W
Power over Ethernet plus (PoE+) ports quantity	8
Cables included	AC

Weight and Dimensions

Depth	316 mm
Width	440 mm
Height	43 mm
Weight	5100 g
