Configuring Switching Information
93
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches
STP Configuration
The STP Switch Configuration screen contains fields for enabling STP on the switch.
To configure STP settings on the switch:
1. Select Switching
STP Basic STP Configuration.

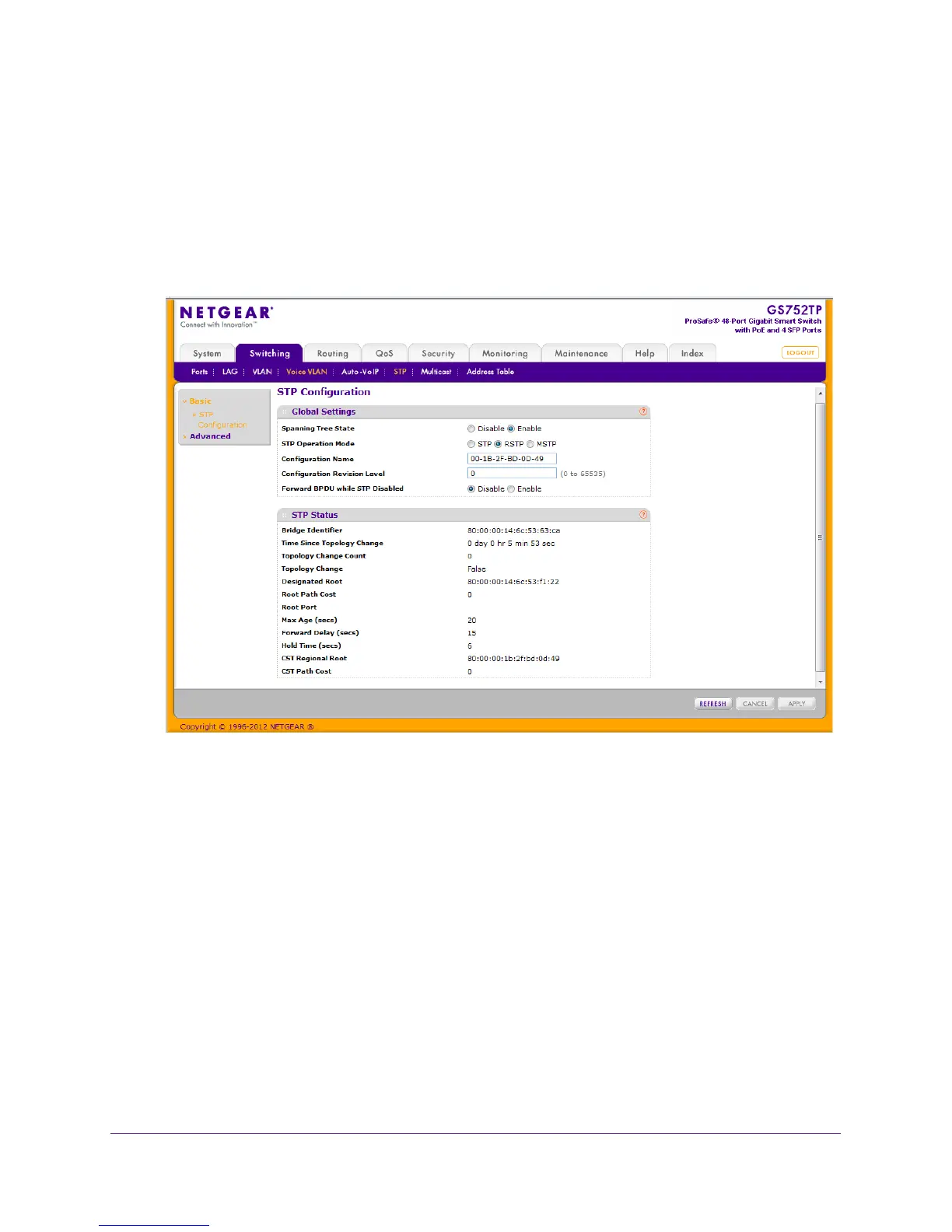

The following screen displays:
2. Next to Spanning Tree State, specify whether to enable or disable spanning tree operation
on the switch.
3. Next to STP Operation Mode, specify the Force Protocol Version parameter for the switch.
The following options are:
STP (Spanning Tree Protocol). IEEE 802.1D
RSTP (Rapid Spanning Tree Protocol). IEEE 802.1w
MSTP (Multiple Spanning Tree Protocol). IEEE 802.1s
4. Specify the configuration name and revision level.
Configuration Name. Name used to identify the configuration currently being used. It
can be up to 32 alphanumeric characters.
Configuration Revision Level
. Number used to identify the configuration currently
being used. The valid range is 0–65535. The default value is 0.
5. Next to Forward BPDU while STP Disabled, select Enable or Disable.
