NETGEAR GS752TP User Manual

Configuring Switching Information
118
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches
Multicast Router VLAN Configuration
The statically configured router attached (VLAN, interface) is added to the learned multicast
router attached interface list if the interface is active and is a member of the VLAN. As is not
the case in the previous release of the system firmware, snooping dynamic learning mode
(snooping interface mode or snooping VLAN mode) does not need not to be enabled on the
interface. The dynamic learning mode is applicable only for dynamically learned multicast
router information (queries from an attached true querier).
 To configure the Multicast Router VLAN:
1. Select Switching
 Multicast  MLD Snooping  Multicast Router VLAN Configuration.

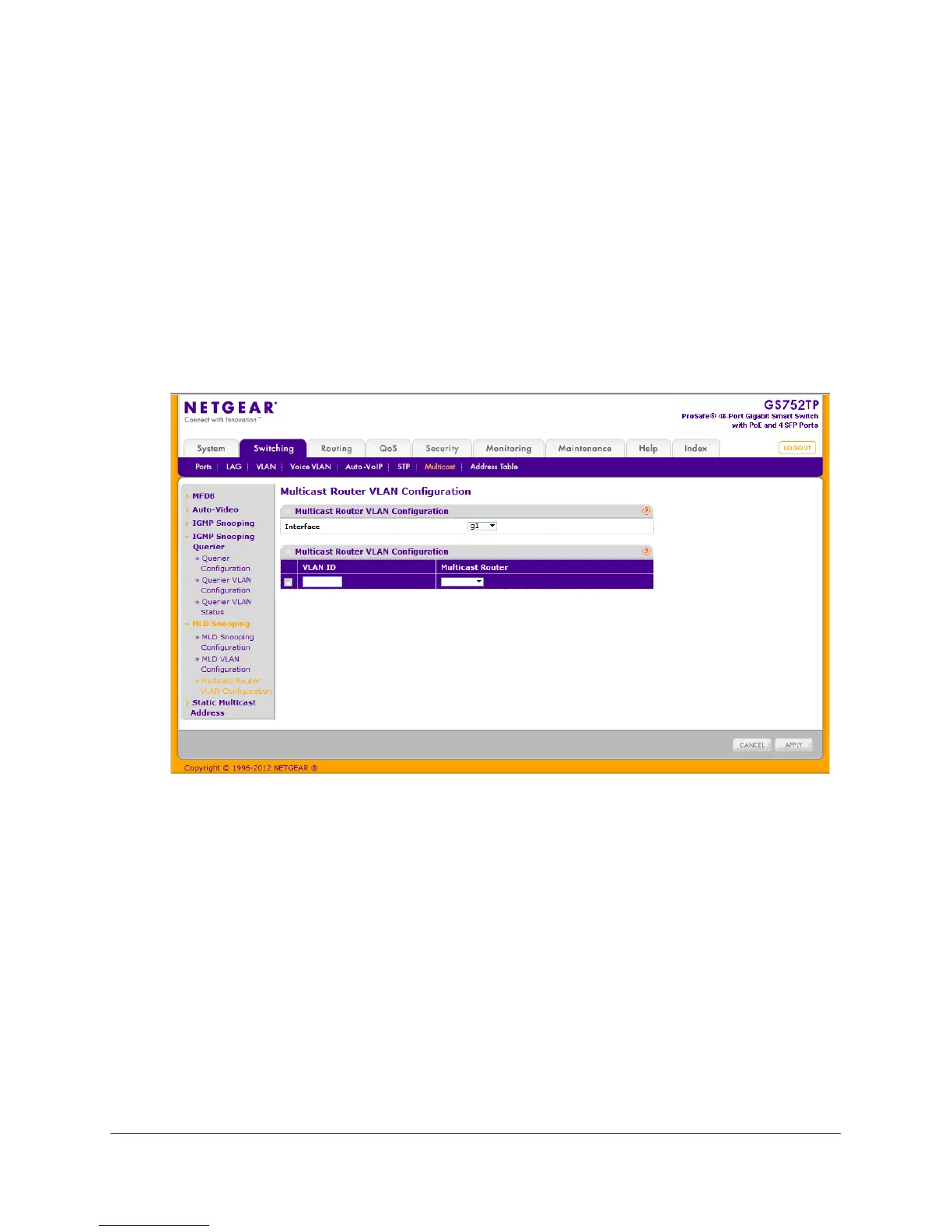

The following screen displays:
2. In the Interface field, select the interface ID.
The entry corresponding to the specified interface is selected.
3. In the VLAN ID field, enter the VLAN ID for which the multicast router mode is to be enabled
or disabled.
4. In the Multicast Router field, enable or disable multicast router on the selected interface.
5. Click APPL
Y to send the updated configuration to the switch.
Configuration changes take place immediately.
Static Multicast Address
The Static Multicast Address link feature contains features described in the following
sections:

NETGEAR GS752TP Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Number of multicast groups filtered	1024
Fiber optic connector	SFP
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
10G support	-
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
MAC address table	8000 entries
Packet buffer memory	8 MB
Number of static routes	32
Supported network protocols	IPv4, IPv6, TFTP, SNTP, TACACS+
Power consumption (typical)	384 W
Safety	CE, CSA, UL
Product color	Gray
Electromagnetic compatibility	CE, FCC, Class A EN 55022, Class A C-Tick, EN 50082-1, EN 55024, CCC
Mean time between failures (MTBF)	220447 h
Heat dissipation	1750.70 BTU/h
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Total Power over Ethernet (PoE) budget	15.4 W
Power over Ethernet plus (PoE+) ports quantity	8
Cables included	AC

Weight and Dimensions

Depth	316 mm
Width	440 mm
Height	43 mm
Weight	5100 g
