• Destination MAC Mask. 00:00:00:00:FF:FF
• Source MAC. 02:02:1A:BC:DE:EF
• Source MAC Mask. 00:00:00:00:FF:FF
• VLAN ID. 2
For more information about MAC ACL rules, see MAC Rules on page 192.

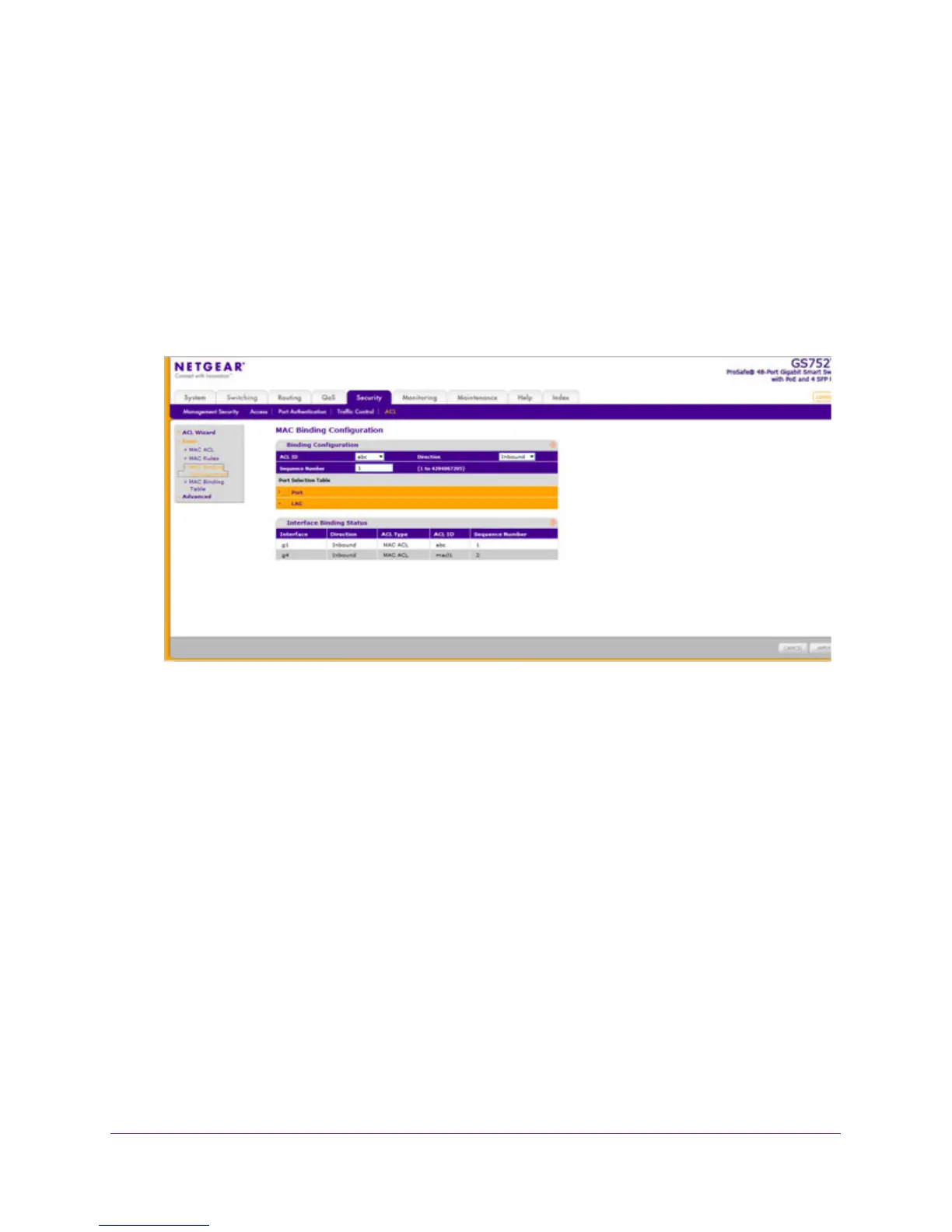

3. In the MAC Binding Configuration screen, assign the Sales_ACL to Ethernet ports 6, 7, and
8 and click APPL
Y.
For more information, see MAC Binding Configuration on page 194.
You can assign an optional sequence number to indicate the order of this access list
relative to other access lists if any are already assigned to this interface and direction.
4. The MAC Binding Table displays the interface and MAC ACL binding information.
For more information, see MAC Binding Table on page 195.
The ACL named Sales_ACL looks for Ethernet frames with destination and source MAC
addresses and MAC masks defined in the rule. Also, the frame must be tagged with
VLAN ID 2, which is the Sales department VLAN.
The CoS value of the frame must be 0,
which is the default value for Ethernet frames. Frames that match this criteria are permitted
on interfaces 6, 7, and 8 and are assigned to the hardware egress queue 0, which is the
default queue.
All other traffic is explicitly denied on these interfaces.
To allow more traffic to
enter these ports, you must add a permit rule with the desired match criteria and bind the rule
to interfaces 6, 7, and 8.
Sample Standard IP ACL Configuration
The following example shows how to create an IP-based ACL that prevents any IP traffic
from the Finance department from being allowed on the ports that are associated with other
departments. Traffic from the Finance department is identified by each packet’s network IP
address.

NETGEAR GS752TP Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Number of multicast groups filtered	1024
Fiber optic connector	SFP
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
10G support	-
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
MAC address table	8000 entries
Packet buffer memory	8 MB
Number of static routes	32
Supported network protocols	IPv4, IPv6, TFTP, SNTP, TACACS+
Power consumption (typical)	384 W
Safety	CE, CSA, UL
Product color	Gray
Electromagnetic compatibility	CE, FCC, Class A EN 55022, Class A C-Tick, EN 50082-1, EN 55024, CCC
Mean time between failures (MTBF)	220447 h
Heat dissipation	1750.70 BTU/h
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Total Power over Ethernet (PoE) budget	15.4 W
Power over Ethernet plus (PoE+) ports quantity	8
Cables included	AC

Weight and Dimensions

Depth	316 mm
Width	440 mm
Height	43 mm
Weight	5100 g
