NETGEAR GS752TP User Manual

Configuring Routing
135
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches
ARP Entry Configuration
 To add a static entry to the ARP table:
1. Select Routing
 ARP > Advanced  ARP Create.

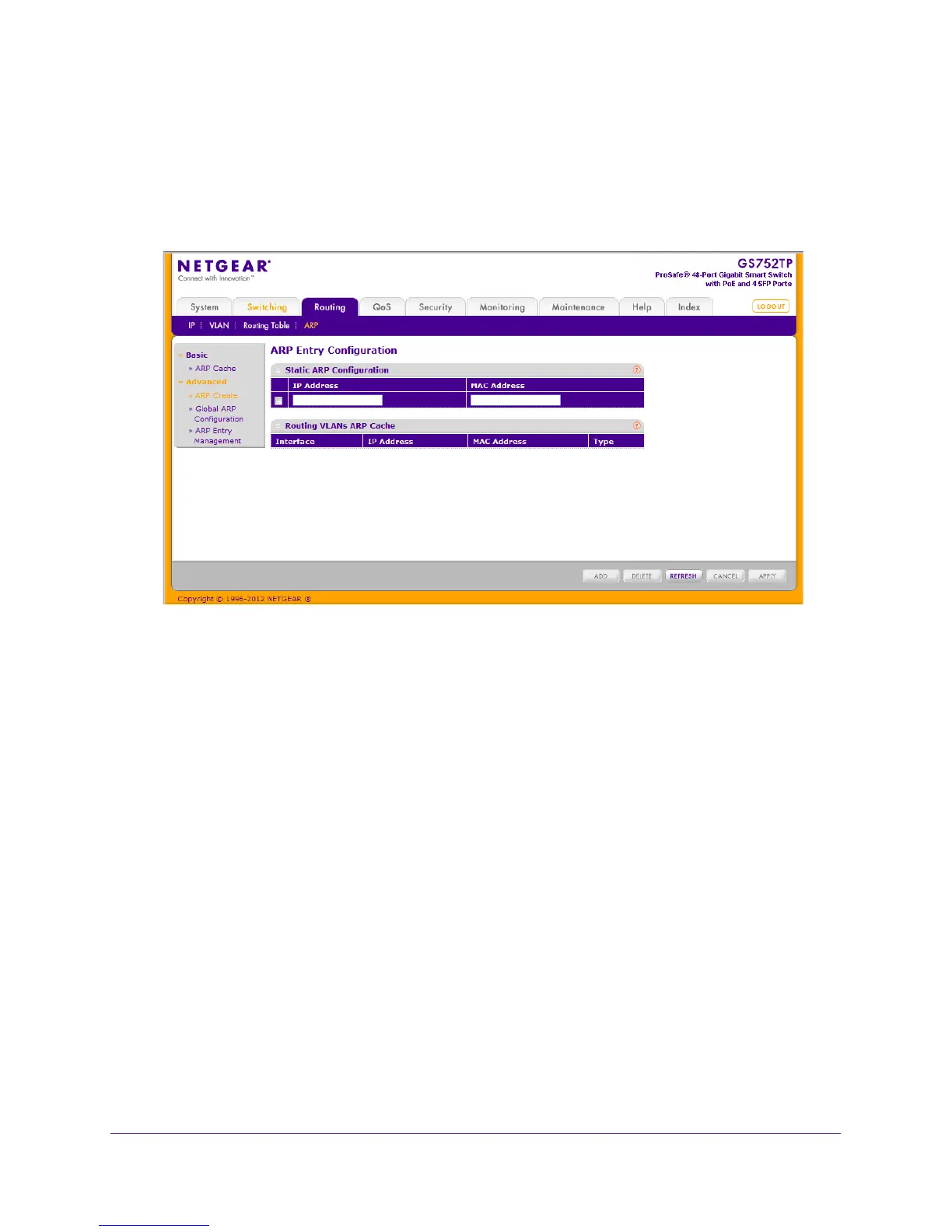

The following screen displays:
2. In the IP Address field, specify the IP address that you want to add.
It must be the IP address of a device on a subnet attached to one of the switch's existing
routing interfaces.
3. In the MAC Address field, specify the unicast MAC address of the device.
The format is six 2-digit hexadecimal numbers separated by colons, for example
00:06:29:32:81:40.
4. Click ADD to add the static entry to the switch configuration.
T
o delete a static entry from the ARP cache, select DELETE.
Entries for the switch are displayed in the Routing VLANs ARP Cache Table. This table
contains both static and dynamic addresses. Static addresses are manually configured and
do not age out.
The device creates dynamic addresses from the
ARP packets it receives.
Dynamic addresses age out after a configured time

NETGEAR GS752TP Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Number of multicast groups filtered	1024
Fiber optic connector	SFP
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
10G support	-
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
MAC address table	8000 entries
Packet buffer memory	8 MB
Number of static routes	32
Supported network protocols	IPv4, IPv6, TFTP, SNTP, TACACS+
Power consumption (typical)	384 W
Safety	CE, CSA, UL
Product color	Gray
Electromagnetic compatibility	CE, FCC, Class A EN 55022, Class A C-Tick, EN 50082-1, EN 55024, CCC
Mean time between failures (MTBF)	220447 h
Heat dissipation	1750.70 BTU/h
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Total Power over Ethernet (PoE) budget	15.4 W
Power over Ethernet plus (PoE+) ports quantity	8
Cables included	AC

Weight and Dimensions

Depth	316 mm
Width	440 mm
Height	43 mm
Weight	5100 g
