The password (network key) is on the product label.
Your computer or WiFi device connects to the modem router’s WiFi network.
If the computer is set to a static (fixed) IP address (this setting is uncommon), either
change the computer to obtain an IP address automatically from the modem router
Note
through DHCP, or change the IP address of the computer to a static IP address in
the 192.168.0.2–192.168.0.254 range.

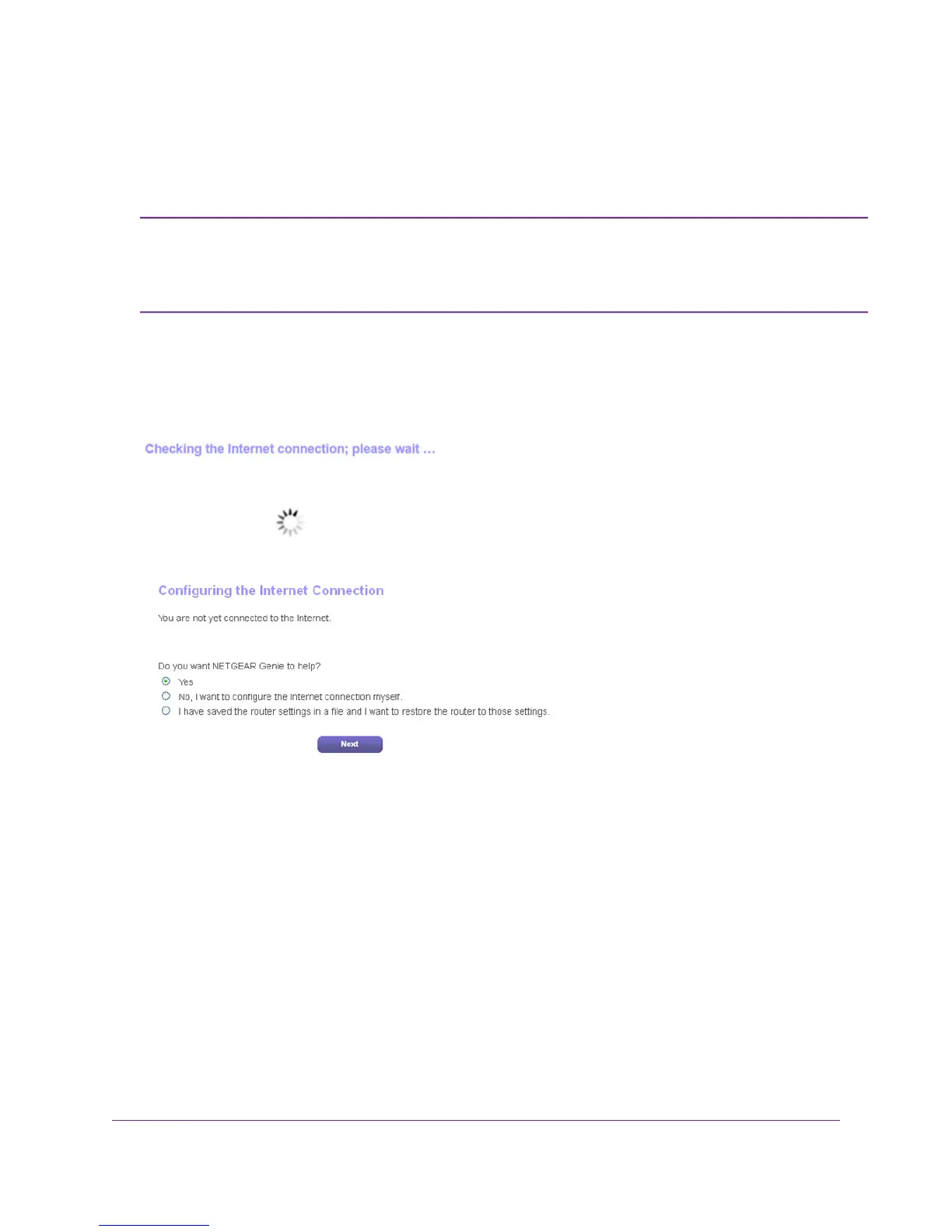

10. Launch a web browser.
The modem router checks the Internet connection.
If the NETGEAR genie automatic setup utility displays, skip to Step 12. If it does not display, do the
following:
a. In the address field of the web browser, enter www.routerlogin.net.
b. When prompted, enter admin for the user name and password for the password.
If the NETGEAR genie automatic setup utility displays, skip to Step 12. If the NETGEAR genie automatic
setup utility still does not display, see Step 11.
11. If the browser cannot display the web page, do the following:
Install and Access the Modem Router and Its Network
34
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

Table of Contents

Other manuals for NETGEAR Nighthawk D7000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR Nighthawk D7000 and is the answer not in the manual?

NETGEAR Nighthawk D7000 Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1300 Mbit/s
USB version3.2 Gen 1 (3.1 Gen 1)
Rack mountingNo
Bandwidth (first)2.4 GHz
Bandwidth (second)5 GHz
USB ports quantity2
WLAN data transfer rates supported600, 1300 Mbit/s
Memory card slot(s)-
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports5
DSL specificationVDSL, VDSL2, ADSL, ADSL2, ADSL2+
Antennas quantity3
Security algorithmsWPA, WPA2-PSK, WPS
Product typeTabletop router
Product colorBlack
Flash memory128 MB
Internal memory256 MB
Processor frequency1000 MHz
Cables includedLAN (RJ-45)
Power source typeAC
Weight and Dimensions IconWeight and Dimensions
Depth185 mm
Width285 mm
Height50 mm
Weight750 g
