NF ZM2371 - Trigger

3.5 Basic Operations
3-38 ZM2371/ZM2372
3.5.6.4 Trigger
The ZM2371 / ZM2372 receive a trigger signal to start the measurement.
With the trigger setting menu, set the trigger source and measurement sequence.
( a ) Continuous drive ( b ) Triggered drive ( c ) When measuring DC
resistance

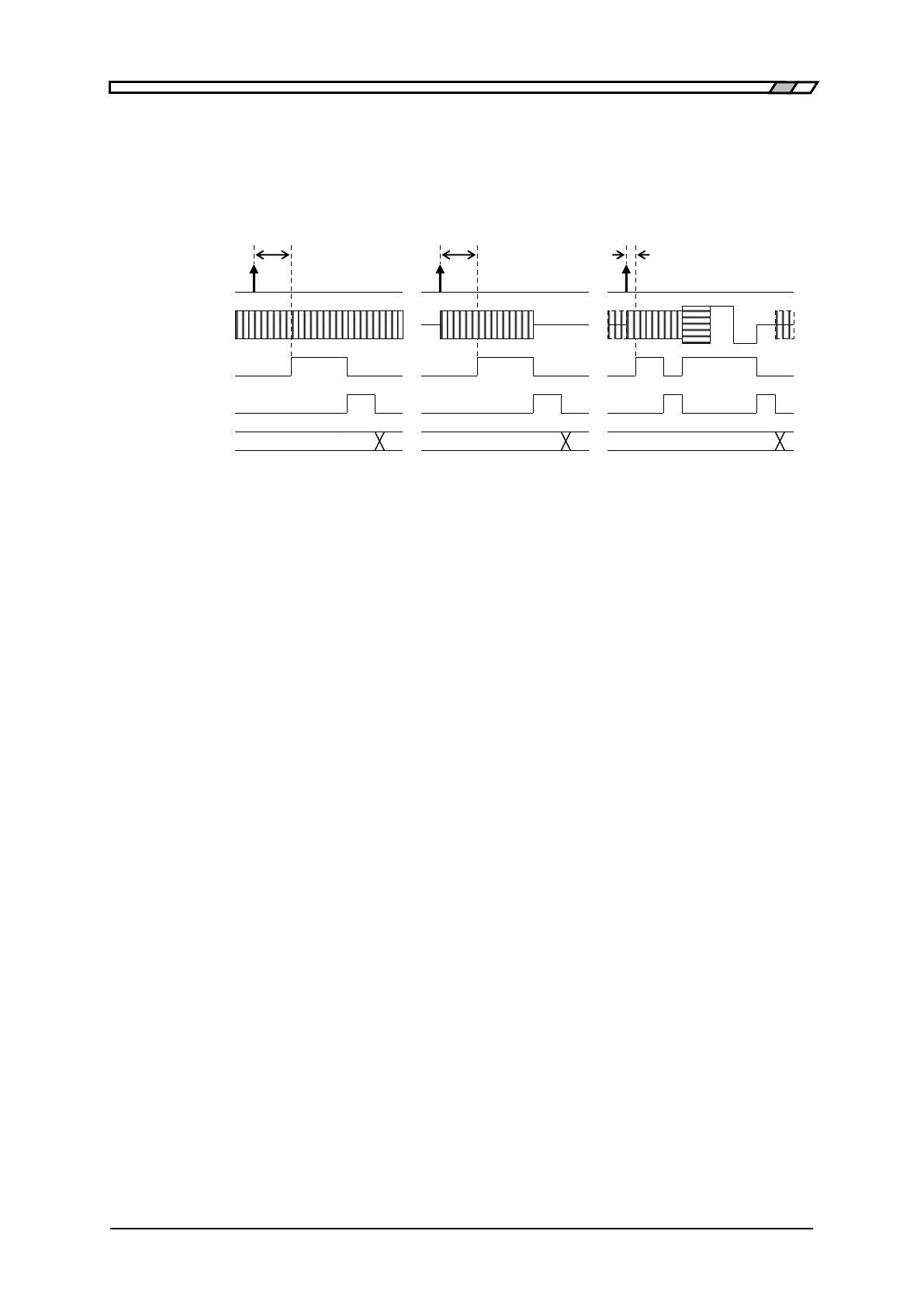

Figure 3–5 Measurement sequence
Trigger signal
Measurement
signal output
Signal
acquisition
Parameter
calculation
Measurement
result
Trigger delay time
Trigger delay time
Trigger delay time
Rdc
Z
