4.2 Displaying the Deviation from the Reference Value
4-3 ZM2371/ZM2372

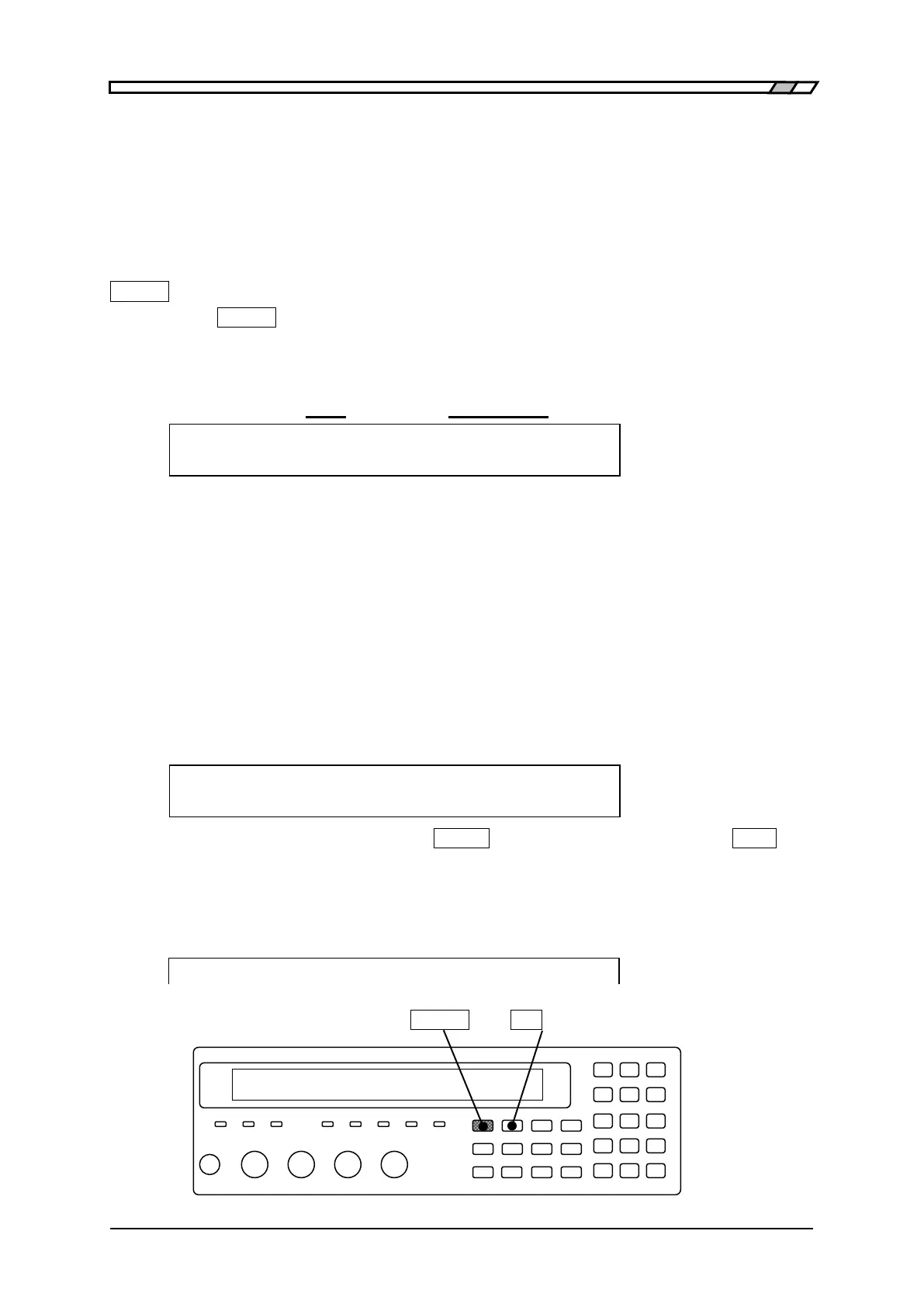

4.2 Displaying the Deviation from the Reference Value
It is able to display the deviation or deviation% from the reference value of measured values.
To display the deviation or deviation%, previously specify the given primary and secondary
parameters. Also, set the reference value for obtaining the deviation.
 Displaying the deviation of primary parameter
_ SHIFT _ + [ Pri ]
Press the _ SHIFT _ + [Pri] keys to display the deviation display menu of primary
parameter.
Reference value for
Display format deviation display
Deviation Pri:ABS REF:+1.23456µF Current setting
0)ABS 1)DEV 2)DEV% 3)REF Options
ABS Displays the measured value as is. (Initial value)
DEV Displays the deviation from reference value.
Deviation = Measured value – Reference value
DEV% Displays the deviation % from the reference value.
Deviation % = ((Measured value – Reference value) / Reference value) × 100
REF Display the reference value setting menu of primary parameter.
Select one of ABS, DEV or DEV% as the display format with the numeric key.
To display the deviation or deviation%, previously set the reference value.
If a setting is made or the EXIT operation is performed, the measurement screen comes
back.
REF: The reference value setting menu of primary parameter is as follows.
Pri Reference:+1.23456µF Current setting
±(0.0000p to 999999M) Range of settable values
Enter the numeric value and press the _ ENTR _ key or input of exponential part _ EXP _ +
[µ] keys for instance.
If a setting is made or the EXIT operation is performed, one-previous menu comes back.
When the deviation or deviation% is selected, the “Δ” displayed in front of measured value
of primary parameter.
Cp:+ 23.456 % D:+0.12345 1.0000k
_ SHIFT _ _ Pri _ | [Pri]
