5.8 Trigger System
The trigger system of ZM2371 / ZM2372 is shown below.
(:INIT:CONT ON state) (:INIT:CONT OFF state)
Power ON
_SHIFT_ + [INIT], _1_ key
Full initialization *RST
Operation mode setting
Idle :ABORT
:INIT:CONT ON state or
:INIT command
Trigger waiting :READ?
Trigger signal (either of the followings)
1) :TRIG:SOUR INT
2) In :TRIG:SOUR MAN, TRIG key on
the panel
3) In :TRIG:SOUR EXT, TRIG signal of
handler interface
4) In :TRIG:SOUR BUS, *TRG、GET
5) :TRIG (when trigger source is other
than INT)
Trigger delay
(:TRIG:DEL)
Measurement once

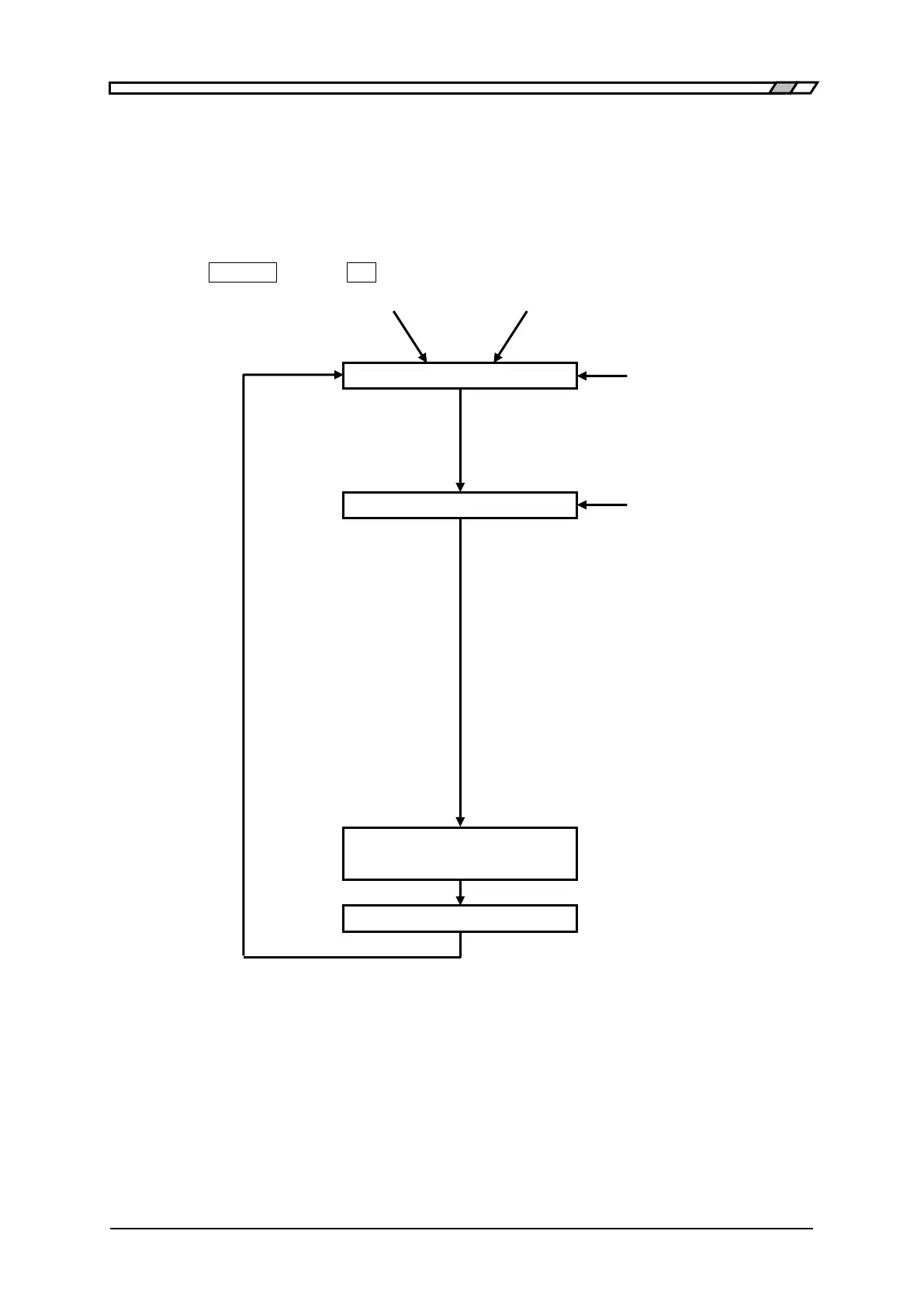

Figure 5–5 Trigger system
