Nikon ECLIPSE Ti2-U User Manual

Chapter 3 Usage of Components
40
Using a motorized dia-illumination shutter
When using a precentered lamphouse, an NI-SH-E
motorized shutter can be attached to the
dia-illumination section. The motorized shutter can
be opened and closed with the NI-SH-CON controller
for motorized shutter.
 Operation:
Motorized shutter
controller
Motorized shutter
Control the SHUTTER 1
switch/SHUTTER 2
switch.
The motorized shutter
opens or closes
 Display:
The open and closed state of the motorized
shutter is indicated by the CLOSE indicator on the
front panel of the motorized shutter controller.
When the CLOSE indicator is lit, the shutter is
closed, and when the CLOSE indicator is unlit, the
shutter is open.
S.
F.

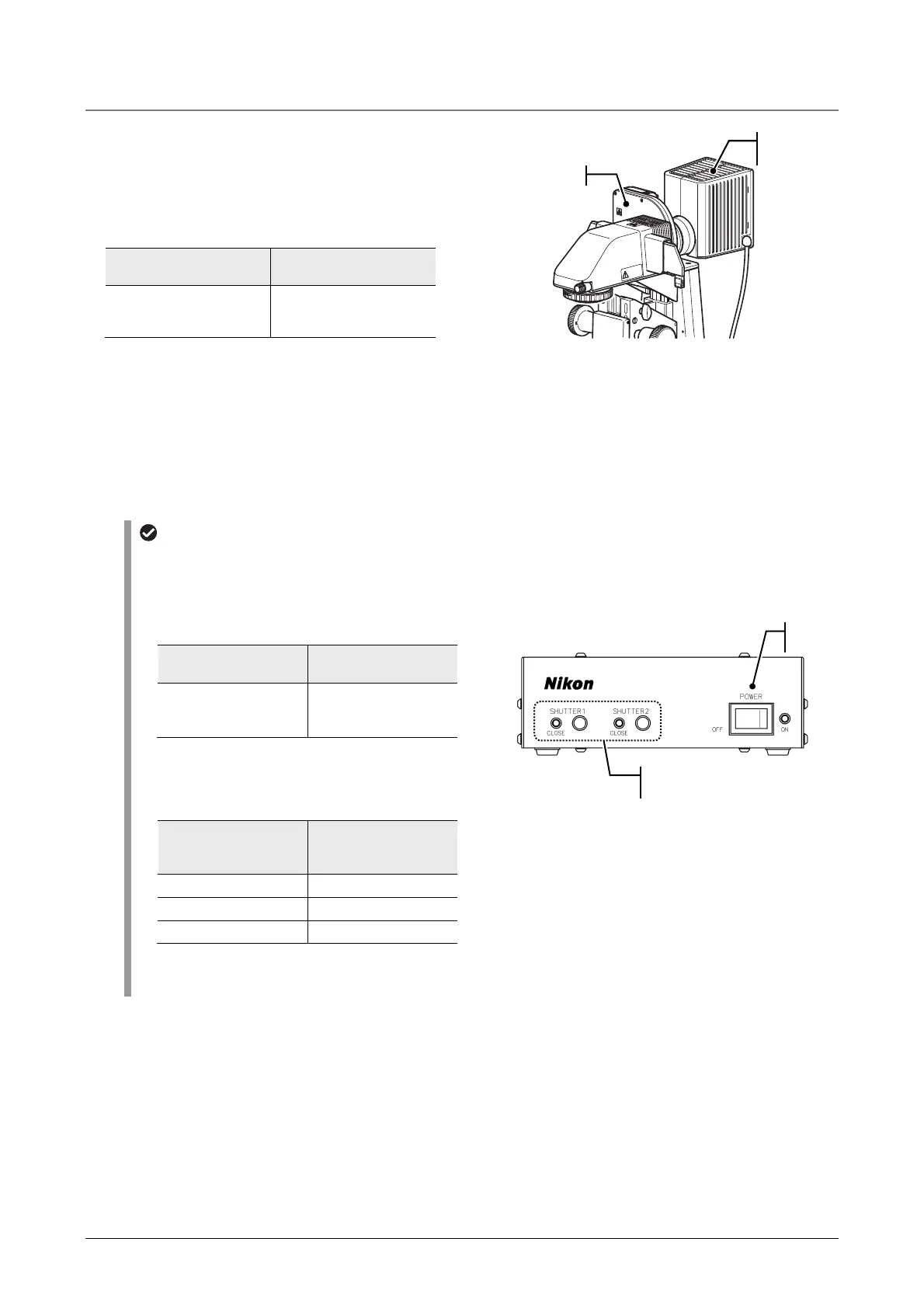

Precentered lamphouse and motorized shutter
Operating the motorized shutter controller
The motorized shutter controller is equipped with two operation switches (SHUTTER 1 and SHUTTER 2),
which enable two motorized shutters to be controlled by a single controller.
■ Operation:
Opening and closing the shutter
SHUTTER 1 switch
SHUTTER 2 switch
Motorized shutter
Press the switch.
The shutter opens or
closes each time the
switch is pressed.
■ Display:
The open and closed state of the motorized
shutter is indicated by the CLOSE indicator on the
front panel.
SHUTTER 1 - CLOSE
SHUTTER 2 - CLOSE
indicator
Motorized shutter
Lit Shutter closed
Unlit Shutter open
Blinking Error
Motorized shutter controller
For details on how to use the motorized shutter controller, see the instruction manual for the motorized
shutter controller.
Precentered
lamphouse
Motorized shutte
r
POWER
switch
SHUTTER 1 and 2 switches,
CLOSE indicators
