M100 Tow Tractor Manual No. 46052
PAGE 34
CHAPTER 2 MAINTENANCE
1 SERVICING
NOTICE! Do not stall transmission and run engine at wide open throttle for
more than ten seconds at a time. Extended operation in a transmission stall
mode at full or partial throttle will cause overheating and transmission failure.
After each full throttle check, move the selector to neutral and run the engine
the next check.
Transmission in drive ............ 110- 188PSI (758.4 - 1296.2 Kpa)
or
Transmission in reverse.......175- 300PSI ( 1206.6 - 2068.4 Kpa)
APRIL 15, 2012
internal
filter
gasket
oil pan
seal ring
filter tube
control
valve assy
screw
magnet
governor
oil screen
governor
tubes

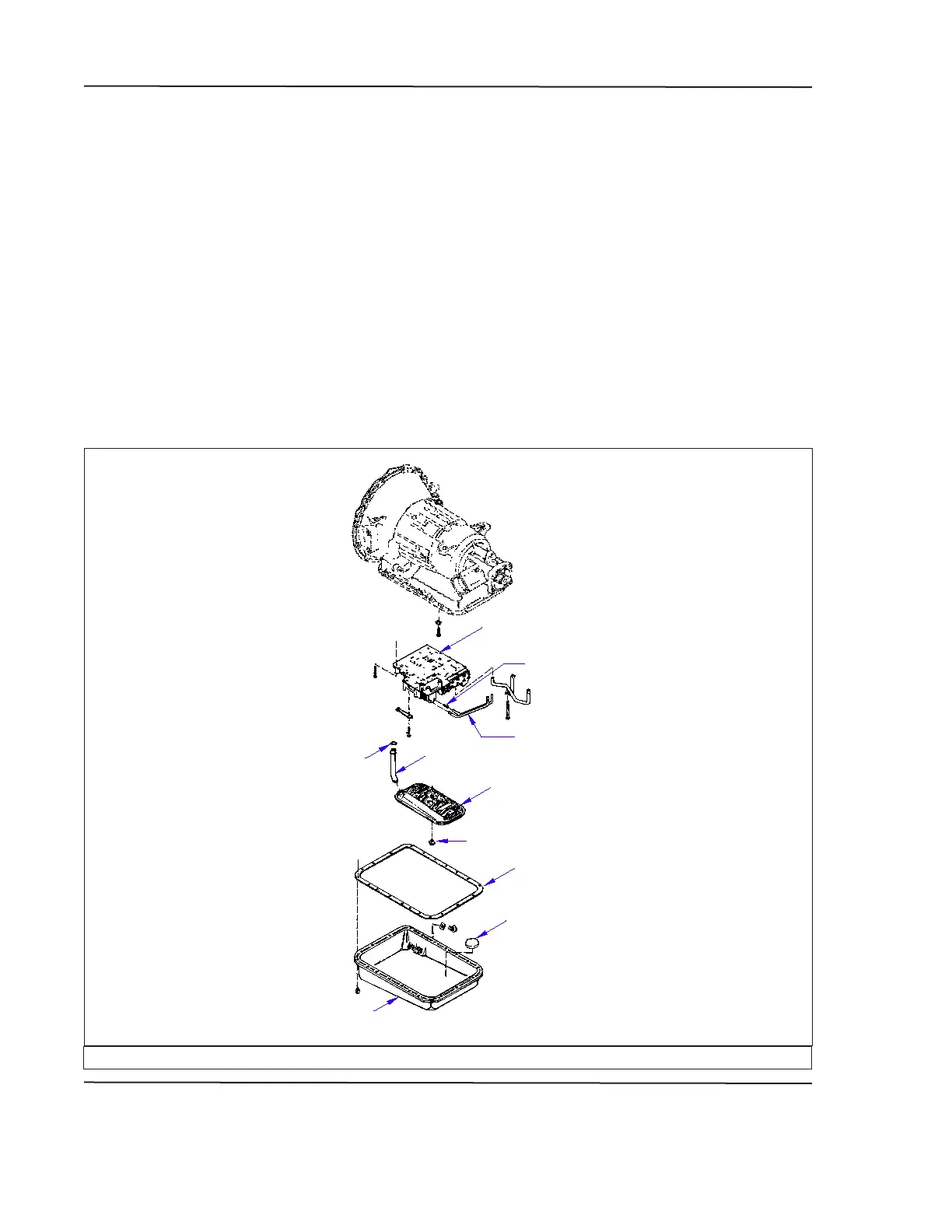

FIGURE 10. INTERNAL OIL FILTER
